Product Overview
Technical Summary
| Product type | MTP1200 Unified Comfort PRO |
|---|---|
| Display | 12.1 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 280 pixel horizontal x 800 pixel vertical |

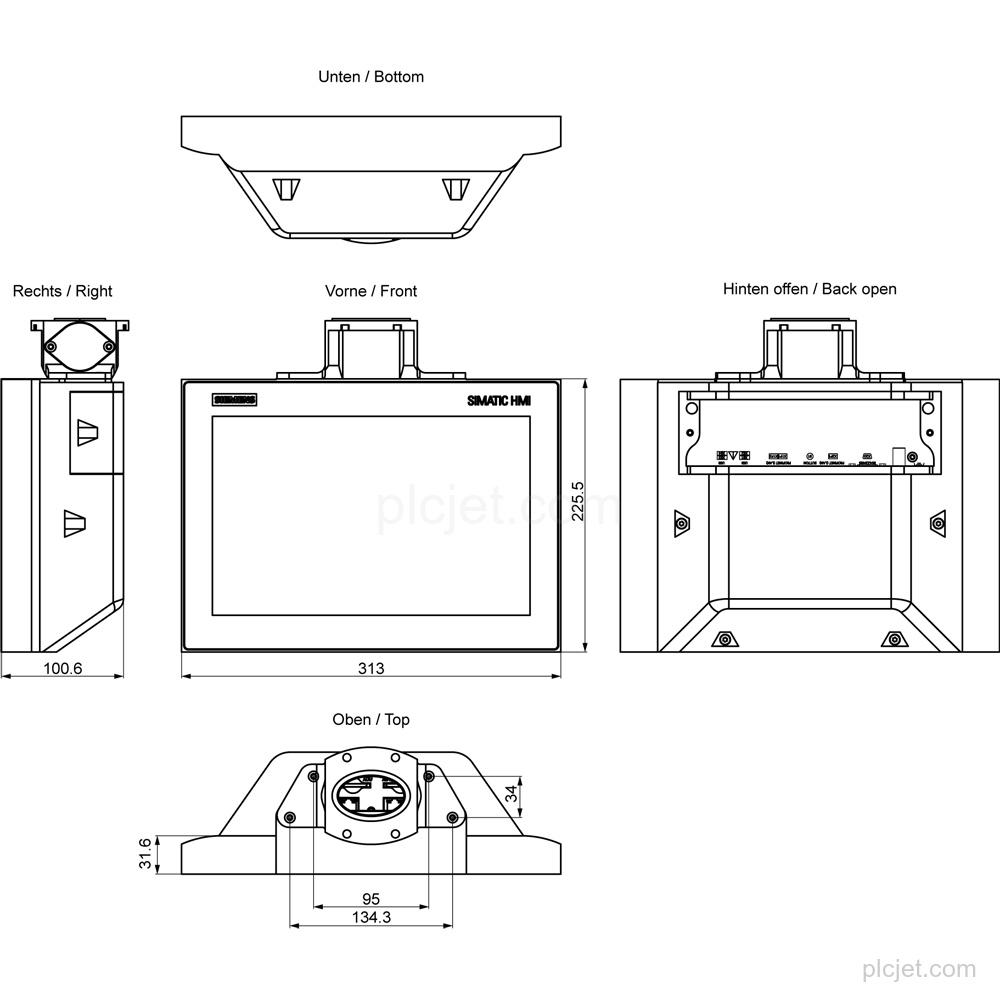

| Mounting | Support arm; vertical; landscape format possible |
| Interfaces | 2 industrial Ethernet interfaces; 1 RS 422 / 485; 4 USB 3.1 Gen. 1 type A |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP and MRP |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.6 A rated; 1.3 A max. |
| Power input | 14.4 W active power input, typ. |
| Protection | IP65 front and rear; Enclosure Type 4, 4x and 12 at the front |
Key Features
12.1 in widescreen TFT display with 16 777 216 colors, 1 280 pixel horizontal resolution and 800 pixel vertical resolution.
Touch screen and multi-touch screen with numeric and alphanumeric Onscreen keyboard.
Support-arm mounting in vertical position; landscape format is possible, portrait format is not.

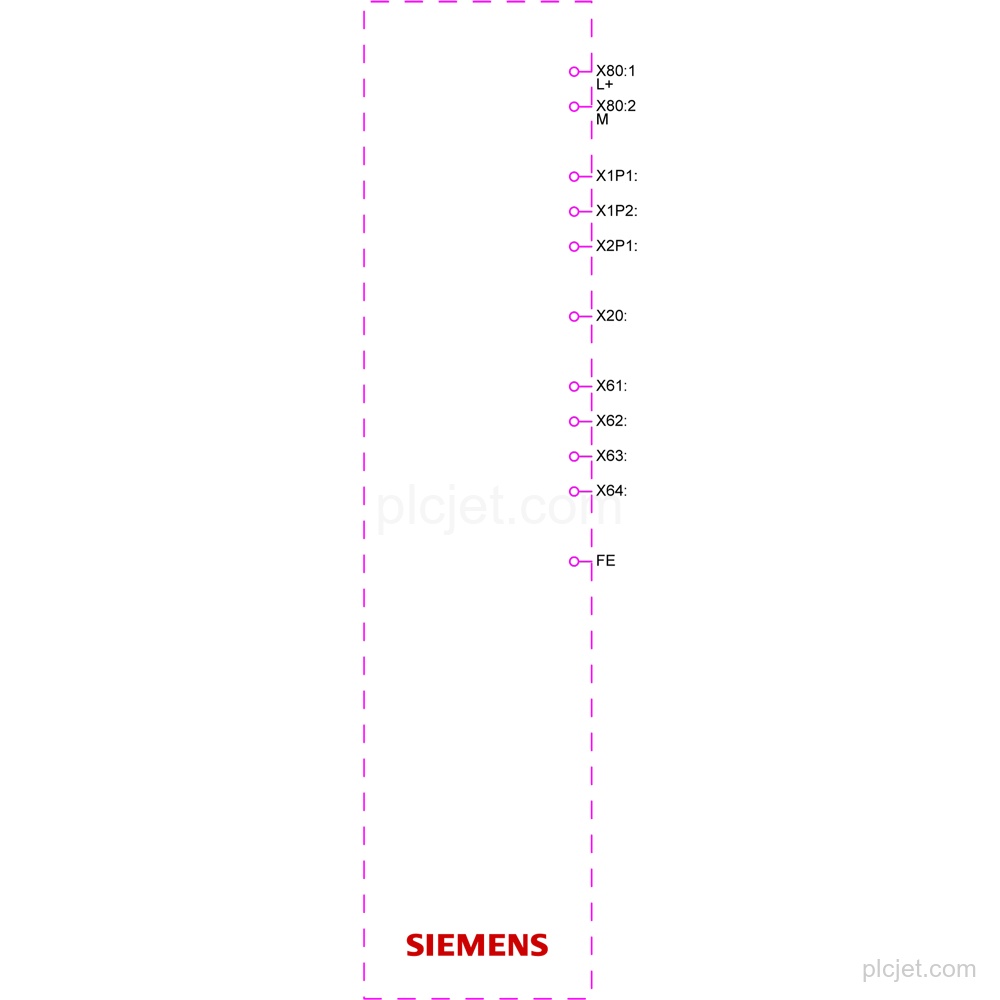

2 industrial Ethernet interfaces with 2 ports (switch) + independent port, 1 combined RS 422 / 485 interface and 4 USB 3.1 Gen. 1 type A interfaces.
24 V DC rated supply value with a permissible range from 19.2 V to 28.8 V.
IP65 at the front and rear; Enclosure Type 4, Type 4x and Type 12 at the front.
Frequently Asked Questions
What is the exact product type of 6AV2128-3MB27-0AX0?
It is the SIMATIC HMI MTP1200 PRO, product type designation MTP1200 Unified Comfort PRO.
What display configuration does this line item have?
It has a 12.1 in widescreen TFT display with 16 777 216 colors and 1 280 pixel x 800 pixel resolution.
Which interfaces are available?
It has 2 industrial Ethernet interfaces with 2 ports (switch) + independent port, 1 combined RS 422 / 485 interface and 4 USB 3.1 Gen. 1 type A interfaces.
What mounting configuration should be retained in the quotation?
The mounting is support arm and vertical. Landscape format is possible; portrait format is not.
What project details should accompany a quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM lines.
