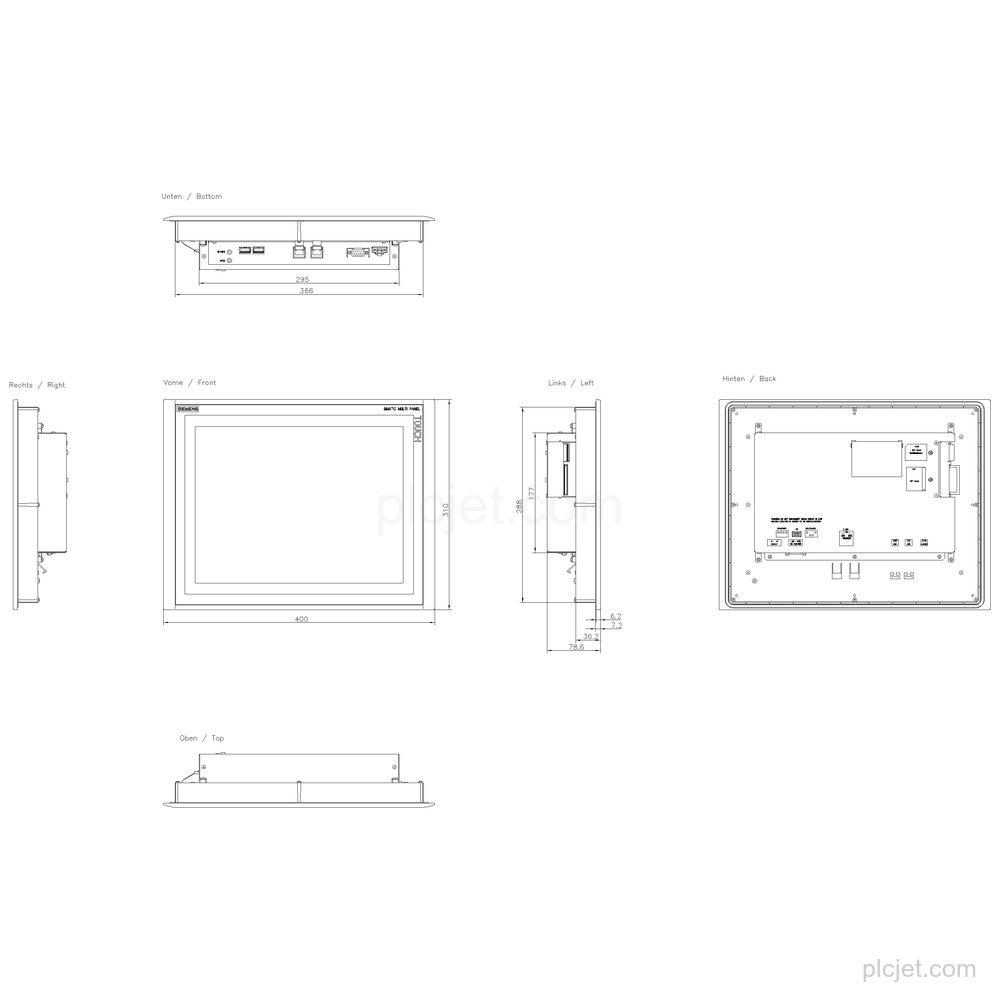

Product Overview
Technical Summary
| Product type | MP377 15" touch |
|---|---|
| Display | 15 in TFT color display, 65 536 colors |
| Resolution | 1 024 pixel x 768 pixel |
| Touch operation | Analog, resistive touch screen |
| User data memory | 12 288 kbyte |
| Interfaces | 1x RS 422, 1x RS 485, 2x Ethernet (RJ45), 2 USB interfaces |
| Protocols | PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, MODBUS |
| Supply | DC; 1.9 A rated current consumption |
| Active power input | 45.6 W typ. |
| Mounting | Maximum permissible angle of inclination without external ventilation: 35° |
| Protection | IP65 at the front; IP20 at the rear |
| Lifecycle | Product cancellation; spare part can continue to be purchased |
Key Features
The display is a 15 in TFT color display with 65 536 colors and 1 024 pixel horizontal by 768 pixel vertical resolution.
Touch operation uses an analog, resistive touch screen; numeric, alphanumeric, and hexadecimal keyboards are available.

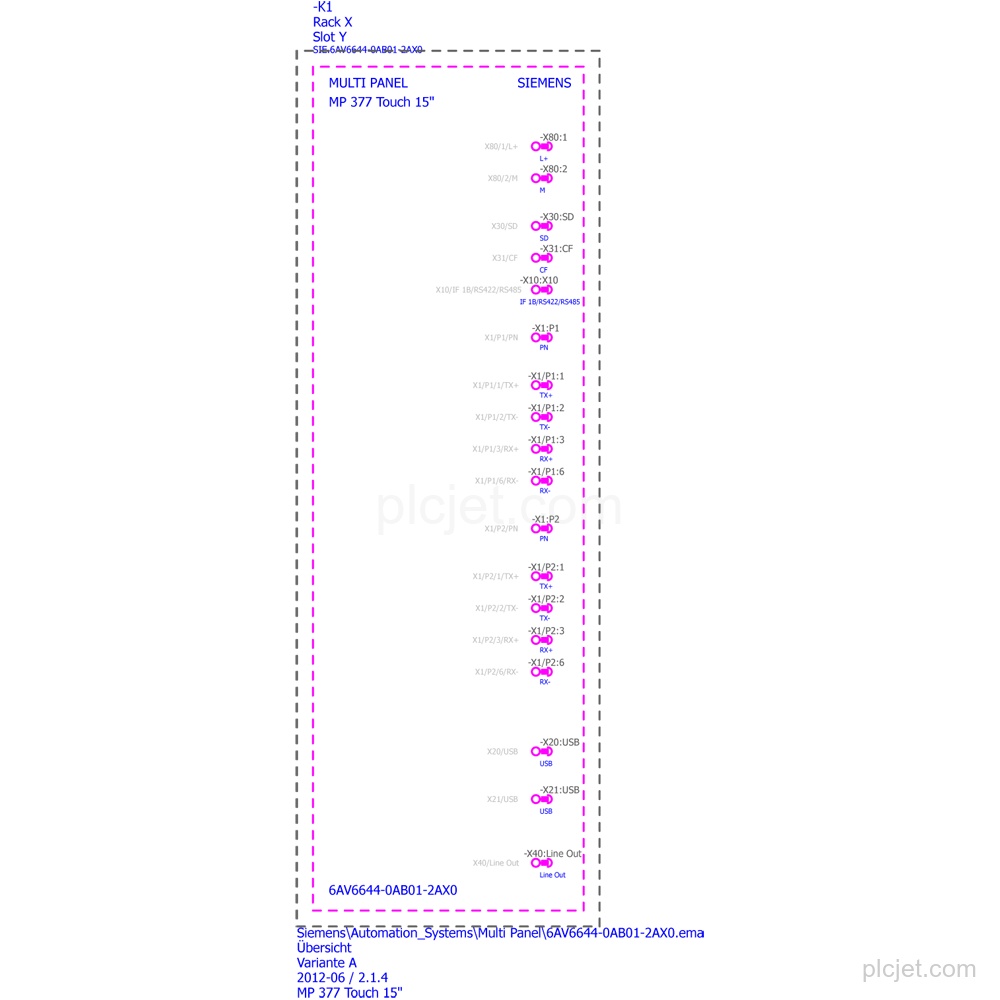

Interfaces include 1x RS 422, 1x RS 485, 2x Ethernet (RJ45), 2 USB interfaces, 1x CF card slot, and 1x Multimedia Card slot up to 128 MB.
Supported protocols include PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, and MODBUS.
The supply voltage is DC, current consumption is 1.9 A, and active power input is 45.6 W typ. Protection is IP65 at the front and IP20 at the rear.
This is a spare part. Product cancellation applies; the new part is blocked for delivery as of 01.01.2015, while the spare part can continue to be purchased and its price may deviate from the new part.
Frequently Asked Questions
What is the exact product variant?
The exact line item is Siemens 6AV6644-0AB01-2AX0, product type MP377 15" touch, with no customer-specific configuration.
Which interfaces and protocols does this panel have?
It has 1x RS 422, 1x RS 485, 2x Ethernet (RJ45), 2 USB interfaces, 1x CF card slot, and 1x Multimedia Card slot up to 128 MB. It supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, and MODBUS.
What configuration should be noted for a quotation request?
The panel has a 15 in color TFT display, analog resistive touch operation, 12 288 kbyte user data memory, DC supply, 1.9 A rated current consumption, and 45.6 W typ. active power input.
What should I provide for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines. This spare part is affected by product cancellation; the new part is blocked for delivery as of 01.01.2015.
