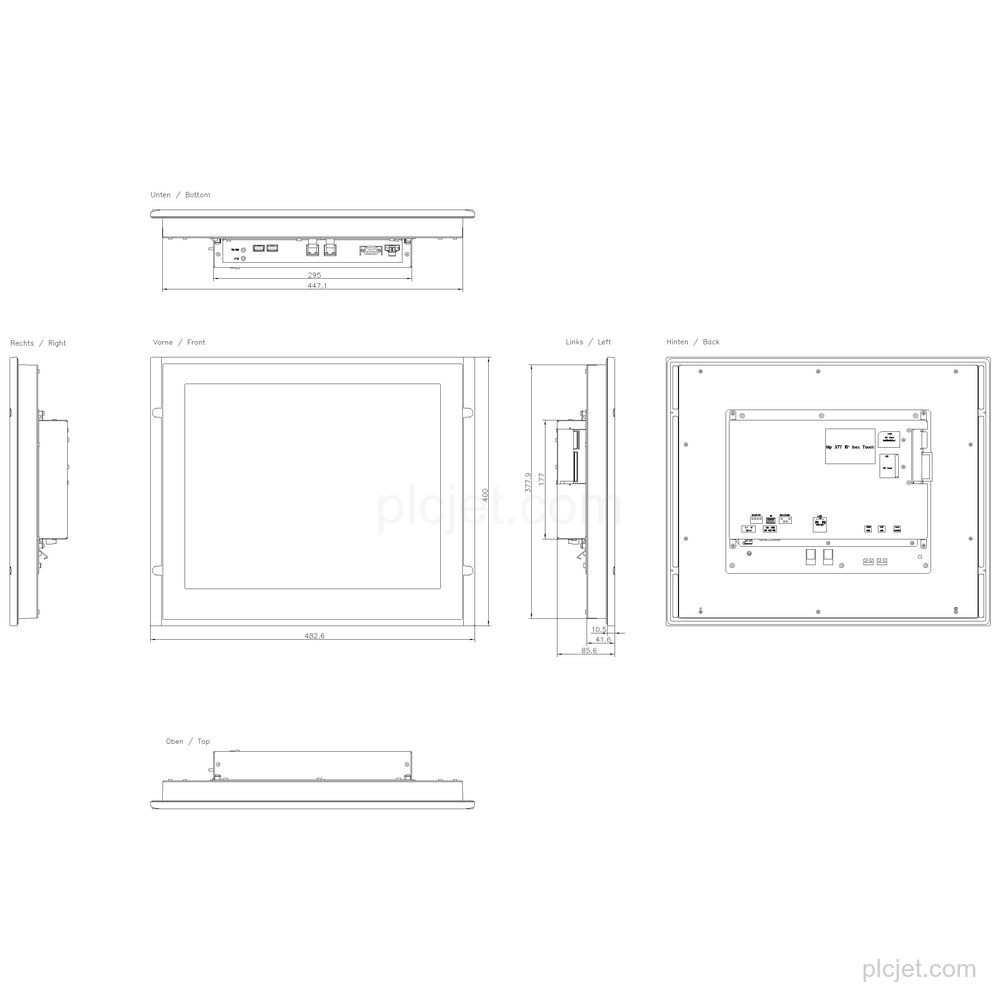

Product Overview
Technical Summary
| Product type | MP377 19" touch |
|---|---|
| Display | 19 in color TFT, 65 536 colors |
| Resolution | 1 280 x 1 024 pixel |
| Touch operation | Analog, resistive touch screen |
| User-data memory | 12 288 kbyte |
| Ethernet interfaces | 2 (RJ45) |
| Serial interfaces | 1x RS 422, 1x RS 485 |
| Protocols | PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, MODBUS |
| Supply and power | DC; 2.5 A rated current consumption; 60 W typical active power input |
| Protection | IP65 front; IP20 rear; NEMA 4, NEMA 12 front when installed |
| Lifecycle | Announcement of product phase-out |
Key Features
The display is a 19 in color TFT with 65 536 colors and 1 280 x 1 024 pixel resolution.
The touch screen is analog and resistive; numeric, alphanumeric, and hexadecimal keyboards are available.

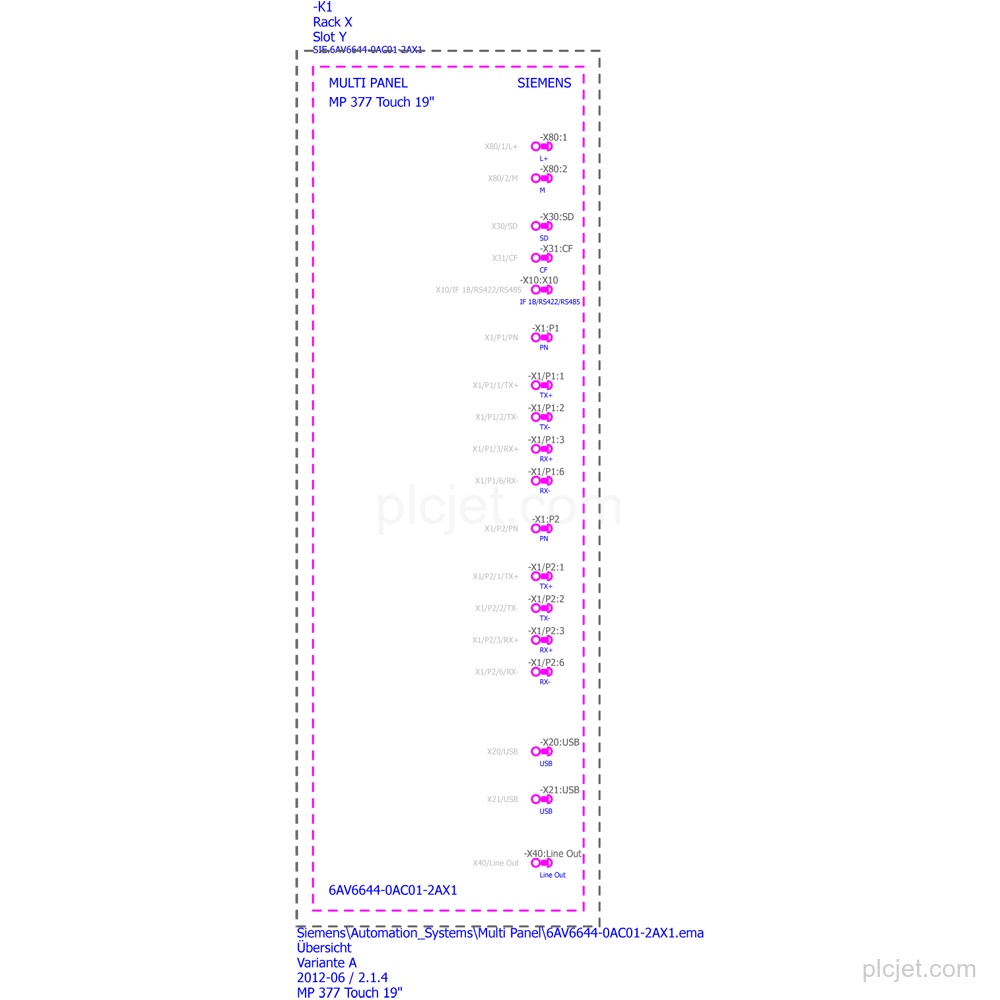

Interfaces include 1x RS 422, 1x RS 485, 2x Ethernet (RJ45), 2 USB interfaces, 1x CF card slot, and 1x Multimedia Card slot up to 128 MB.
The panel supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, and MODBUS.
Supply voltage is DC; rated current consumption is 2.5 A, typical active power input is 60 W, and the maximum permissible angle of inclination without external ventilation is 35°.
Protection is IP65 at the front and IP20 at the rear; the front has NEMA 4 and NEMA 12 when installed.
Frequently Asked Questions
What is the exact product variant?
The exact product is Siemens 6AV6644-0AC01-2AX1, an MP377 19" touch Multi Panel.
What display and touch configuration does it have?
It has a 19 in color TFT display with 65 536 colors, 1 280 x 1 024 pixel resolution, and analog, resistive touch operation.
Which interfaces and protocols are provided?
It has 1x RS 422, 1x RS 485, 2x Ethernet (RJ45), 2 USB interfaces, a CF card slot, and a Multimedia Card slot up to 128 MB. Supported protocols include PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, and MODBUS.
What mounting and protection details should be retained?
The maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear; the front has NEMA 4 and NEMA 12 when installed.
What should accompany a quotation request for this line item?
Provide the requested quantity, destination, schedule context, and any additional BOM lines. The new part is blocked for delivery as of 01.01.2015; the spare part can continue to be purchased as required, but its price may deviate from the new part.
