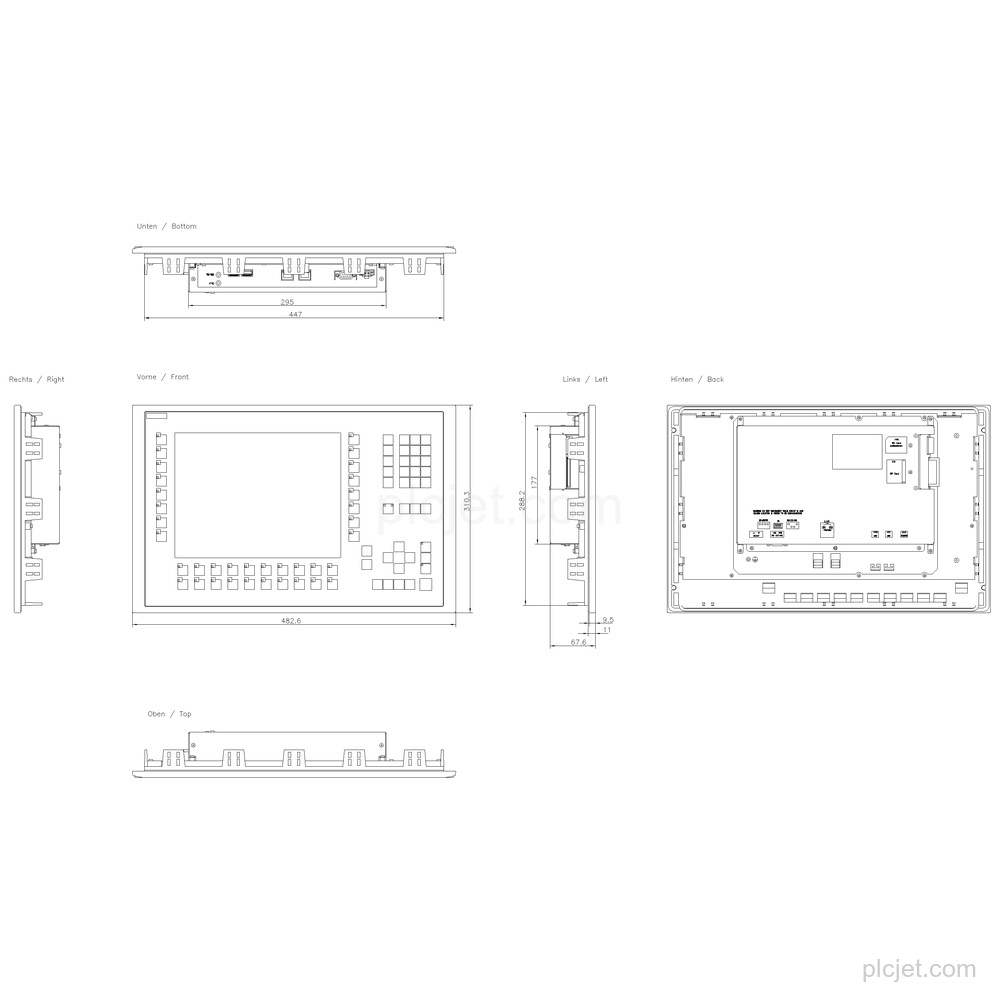

Product Overview
Technical Summary
| Product type | MP377 12" key |
|---|---|
| Display | 12.1 in TFT color display, 65 536 colors |
| Resolution | 800 pixel x 600 pixel |
| Configuration memory | 12 MB |
| Interfaces | 1x RS 422, 1x RS 485, 2x Ethernet (RJ45) |
| USB interfaces | 2; Up to 1 GB respectively |
| Supply voltage | DC |
| Current consumption | 1.5 A |
| Installation angle | maximum permissible angle of inclination without external ventilation: 35° |
| Front protection | IP65 |
| Rear protection | IP20 |
| Lifecycle | Product cancellation |
Key Features
The display has 65 536 colors and an 800 pixel x 600 pixel resolution.
The panel has 36 function keys with LEDs, 38 system keys, numeric, alphanumeric and hexadecimal keyboards, and 2 multi-key operations.

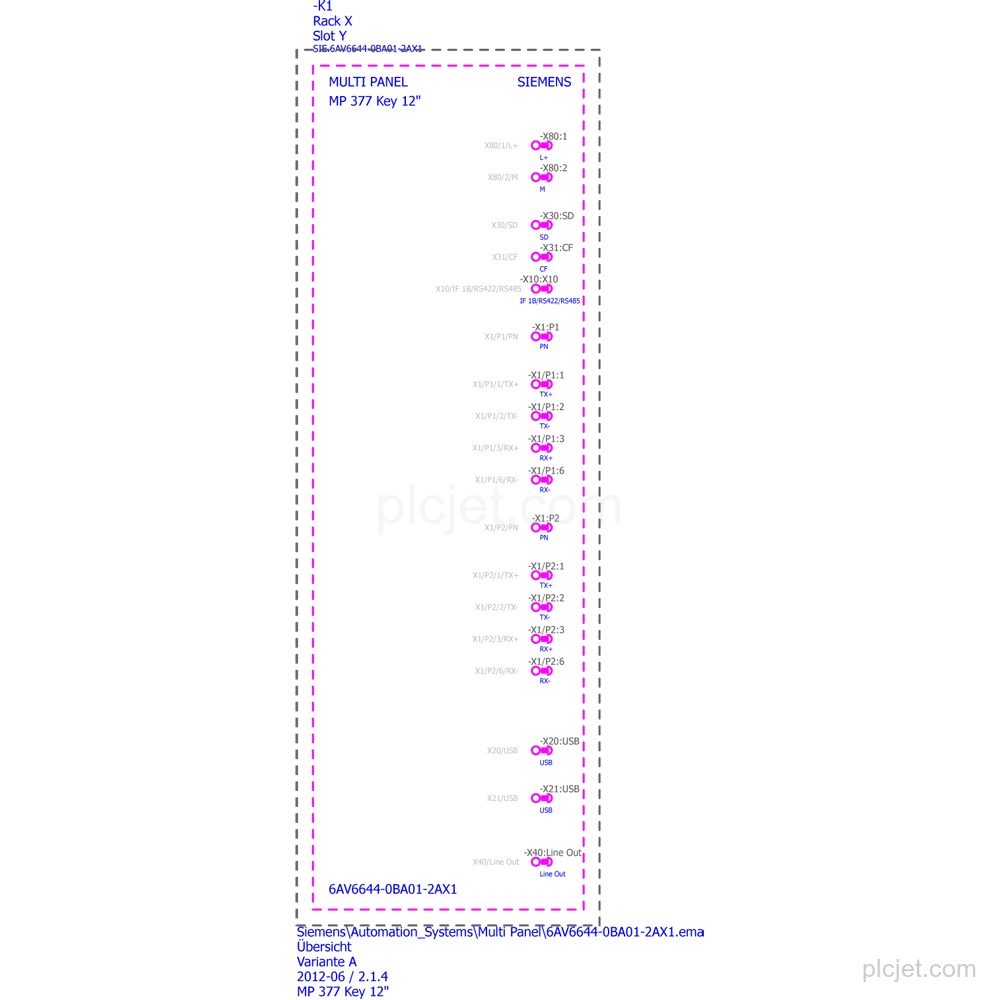

Interfaces include 1x RS 422, 1x RS 485, 2x Ethernet (RJ45), 2 USB interfaces, 1x CF card slot and 1x Multimedia Card slot up to 128 MB.
The panel supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer and MODBUS.
Supply voltage is DC, current consumption is 1.5 A, and the maximum permissible angle of inclination without external ventilation is 35°.
Protection is IP65 at the front, IP20 at the rear, and NEMA 4, NEMA 12 at the front when installed.
Frequently Asked Questions
What is the exact product variant?
It is Siemens 6AV6644-0BA01-2AX1, MP377 12" key.
Which display and keyboard configuration does it have?
It has a 12.1 in TFT color display with 800 pixel x 600 pixel resolution, 36 function keys with LEDs, 38 system keys and a membrane keyboard.
Which interfaces and protocols are supported?
It has RS 422, RS 485, Ethernet (RJ45), USB, CF card and Multimedia Card interfaces; supported protocols include PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer and MODBUS.
Is the panel touch-enabled or supplied with software interfaces?
It is without touch operation and without software interfaces.
What should be included in a project quotation request?
Include the requested quantity, destination, schedule context and any additional BOM lines.
