Product Overview
Technical Summary
| Product type designation | ITC1900 V3 |
|---|---|
| Display | TFT widescreen display, LED backlighting |
| Image resolution | 1 366 x 768 |
| Touch screen | Multi-touch; Projective-capacitive |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Industrial Ethernet | 2 ports (switch); transmission rate, max. 1 000 Mbit/s |
| USB interfaces | 4; on rear |
| Terminal-link protocols | Sm@rtServer, RDP and VNC viewer |
| Mounting | Built-in unit; front mounting |
| Permitted tilt angle | 35° forward and 35° backward from vertical |
| Protection | IP65 at the front; IP20 at the rear |
| Product lifecycle | Product cancellation |
Key Features
TFT widescreen display with LED backlighting, 1 366 x 768 image resolution and 18.5 in; 19" screen diagonal.
Multi-touch screen with projective-capacitive design and monitor keyboard.
DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.
2 industrial Ethernet interfaces with 2 ports (switch), 4 USB interfaces on the rear, and USB connection for keyboard/mouse.
Sm@rtServer, RDP and VNC viewer supported; Citrix and SINUMERIK not supported.
Built-in unit with front mounting; IP65 at the front and IP20 at the rear.
Frequently Asked Questions
What exact product is Siemens 6AV6646-1BA18-0NA0?

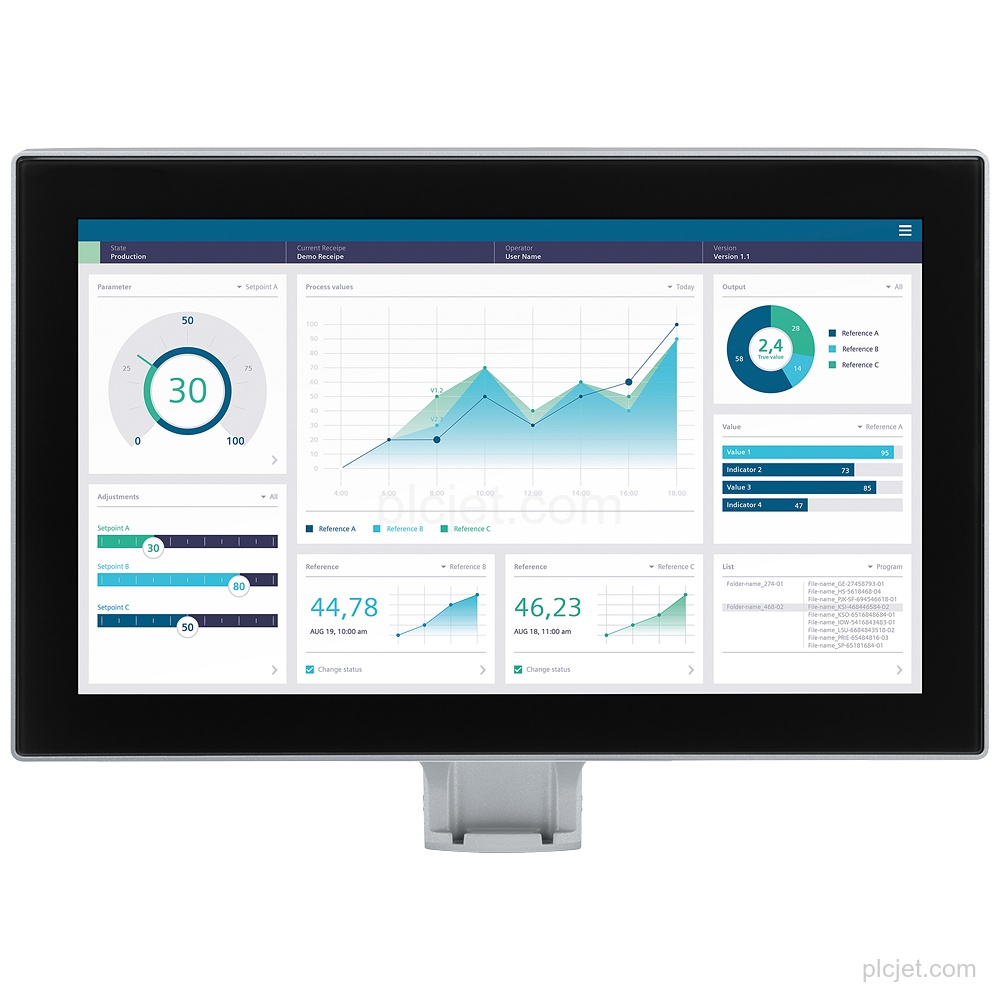

It is an ITC1900 V3 industrial thin client with a 19" widescreen TFT display and capacitive multi-touch screen.
What supply voltage does the line item use?
Supply: 24 V DC. The permissible range is 19.2 V to 28.8 V.
Which interfaces are provided?
It has 2 industrial Ethernet ports (switch) and 4 USB interfaces on the rear. Keyboard/mouse connection: USB.
How should this line item be included in a quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM lines for project quotation review.
