Product Overview
Technical Summary
| Product type | ITC1500 V3 PRO |
|---|---|
| Display | 15.6 in widescreen TFT display, LED backlighting |
| Resolution | 1 366 x 768 |
| Touch screen | Projective-capacitive multi-touch screen |
| Supply | 24 V DC; 19.2 V to 28.8 V |
| Ethernet | 2 ports with switch; maximum 1 000 Mbit/s |
| USB | 4 interfaces; on rear |

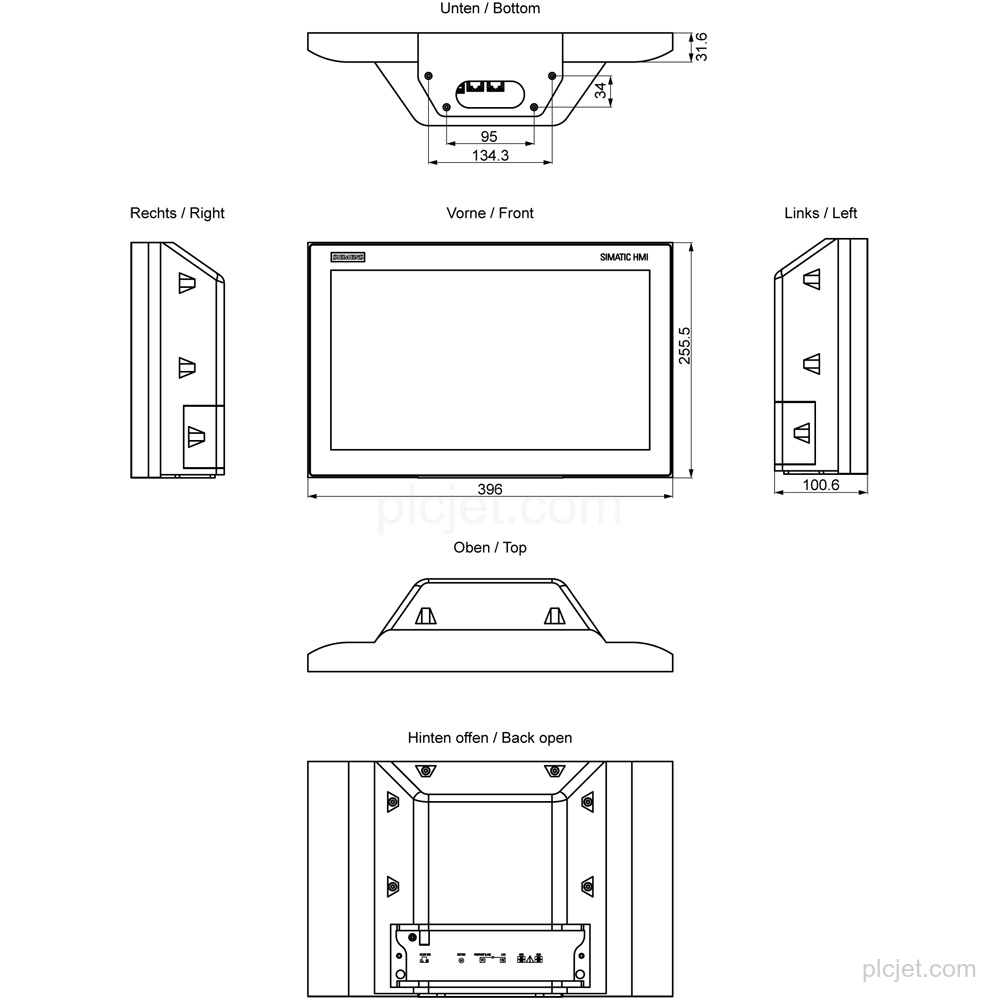

| Mounting | Stand mounting; prepared for pedestal and extension components |
| Protection | IP65 at front and rear |
| Protocols | RDP, VNC viewer, Sm@rtServer, Citrix, SINUMERIK |
Key Features
15.6 in widescreen TFT display with LED backlighting, 1 366 x 768 resolution, and projective-capacitive multi-touch screen.
Supports RDP, VNC viewer, Sm@rtServer, Citrix, SINUMERIK, TCP/IP, DHCP, SNMP, DCP, and LLDP.
2 industrial Ethernet interfaces with switch function, 4 USB interfaces, and USB connection for keyboard and mouse.
Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V.
Stand mounting is supported; front and rear protection are IP65.
Product cancellation.
Frequently Asked Questions
What is the exact product type of 6AV6646-1BB15-0AA0?
The product type is ITC1500 V3 PRO, described as a SIMATIC ITC1500 V3 Pro industrial thin client spare part.
What display does this line item have?
It has a 15.6 in widescreen TFT display with 1 366 x 768 resolution, LED backlighting, and a projective-capacitive multi-touch screen.
What supply voltage is required?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
Which mounting and protection details should be retained in the quotation?
Stand mounting is supported, while front mounting, support arm mounting, and built-in mounting are not. Protection is IP65 at the front and rear.
What information should accompany a project quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM line items.
