Product Overview
Technical Summary
| Product type | ITC1900 V3 PRO |
|---|---|
| Display | TFT widescreen display, LED backlighting |
| Touch screen | Projective-capacitive multi-touch screen |
| Image resolution | 1 366 x 768 |
| Supply voltage | DC, rated value 24 V; permissible range 19.2 V to 28.8 V |
| Industrial Ethernet | 2 ports (switch), maximum 1 000 Mbit/s |
| USB interfaces | 4; on rear |

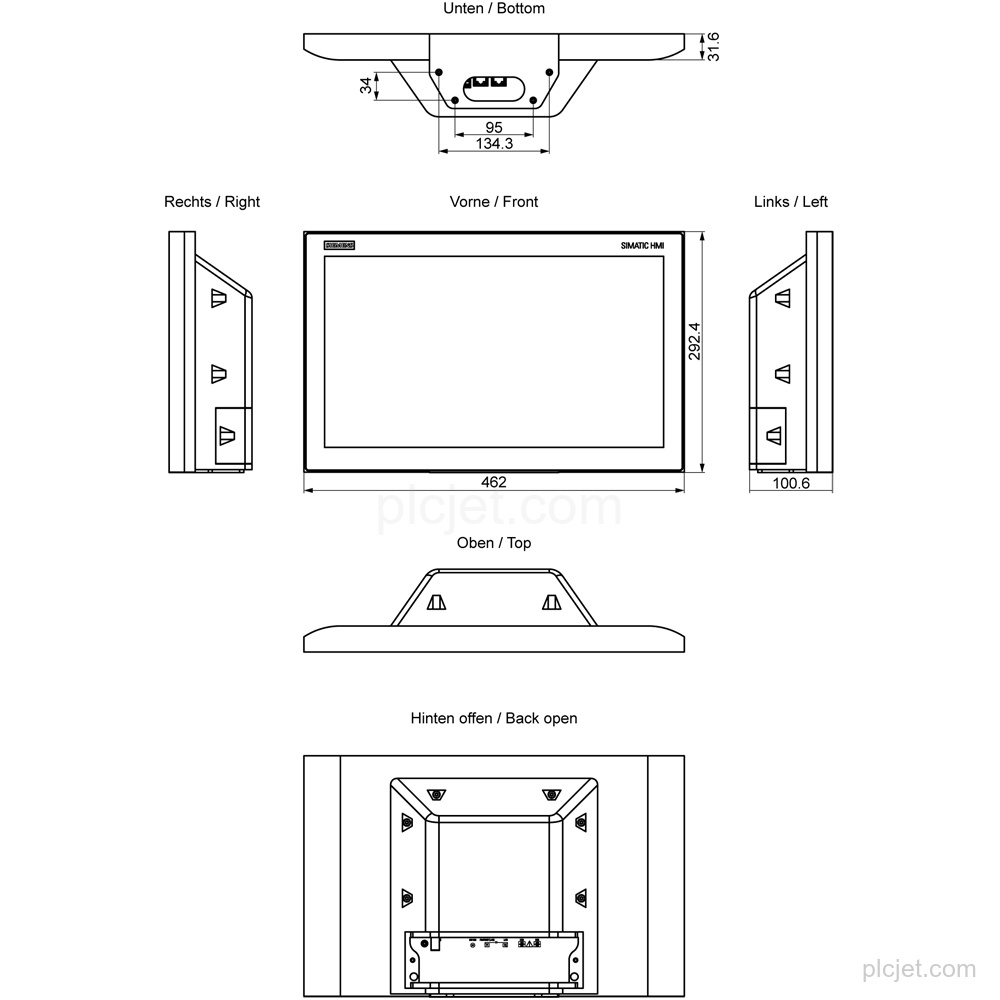

| Mounting | Pedestal mounting |
| Front protection | IP65; NEMA 4x when installed |
| Rear protection | IP20 |
| Terminal protocols | Sm@rtServer, RDP, VNC viewer, Citrix, SINUMERIK |
| Product lifecycle | Product cancellation |
Key Features

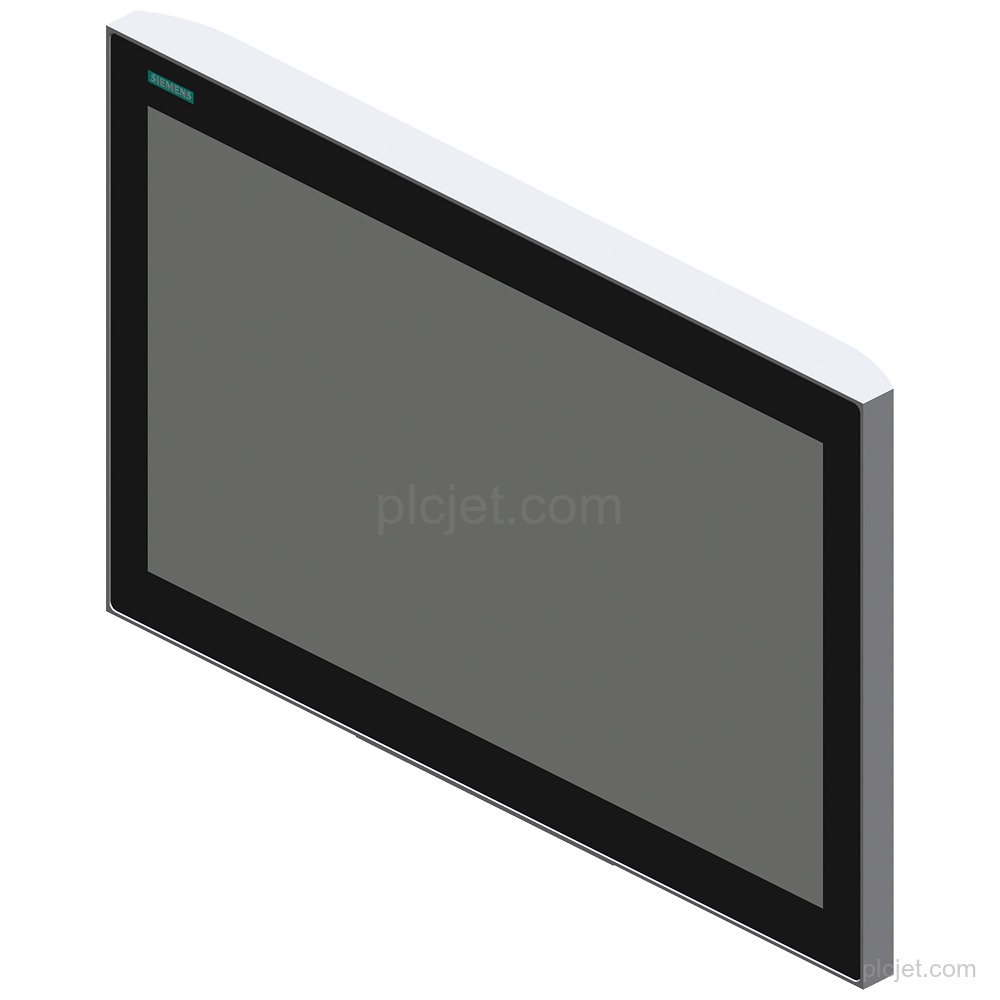

19-inch widescreen TFT display with LED backlighting, capacitive multi-touch screen, and 1 366 x 768 image resolution.
Supports Sm@rtServer, RDP, VNC viewer, Citrix, and SINUMERIK.
2 industrial Ethernet interfaces with 2 ports (switch) and a maximum transmission rate of 1 000 Mbit/s.
DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
Pedestal mounting; stand mounting is prepared for pedestal and extension components.
IP65 at the front and IP20 at the rear; front protection includes NEMA 4x when installed.
Frequently Asked Questions
What is the exact product type of 6AV6646-1BB18-0AA0?
The product type designation is ITC1900 V3 PRO.
What display and touch configuration does it have?
It has a 19-inch widescreen TFT display with LED backlighting, a 1 366 x 768 image resolution, and a projective-capacitive multi-touch screen.
What supply voltage does it use?
It uses DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
Which mounting arrangement is supported?
It has pedestal mounting. Stand mounting is prepared for pedestal and extension components; front mounting, support arm mounting, and built-in installation are not supported.
Can this line item be added to a project quotation?
Yes. Provide the requested quantity, destination, schedule context, and any additional BOM lines for quotation handling.
