Product Overview
Technical Summary
| Product type | ITC2200 V3 PRO |
|---|---|
| Display | 22" widescreen TFT display, LED backlighting |
| Touch | Projective-capacitive multi-touch screen |
| Resolution | 1 920 x 1 080 |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Industrial Ethernet | 2 ports (switch); maximum 1 000 Mbit/s |
| USB | 4 interfaces; on rear |
| Terminal protocols | Sm@rtServer, RDP, VNC viewer, Citrix, SINUMERIK |
| Mounting | Pedestal mounting |
| Front protection | IP65; NEMA Enclosure Type 4, Type 4x, and Type 12 |
| Lifecycle | Product cancellation |
Key Features

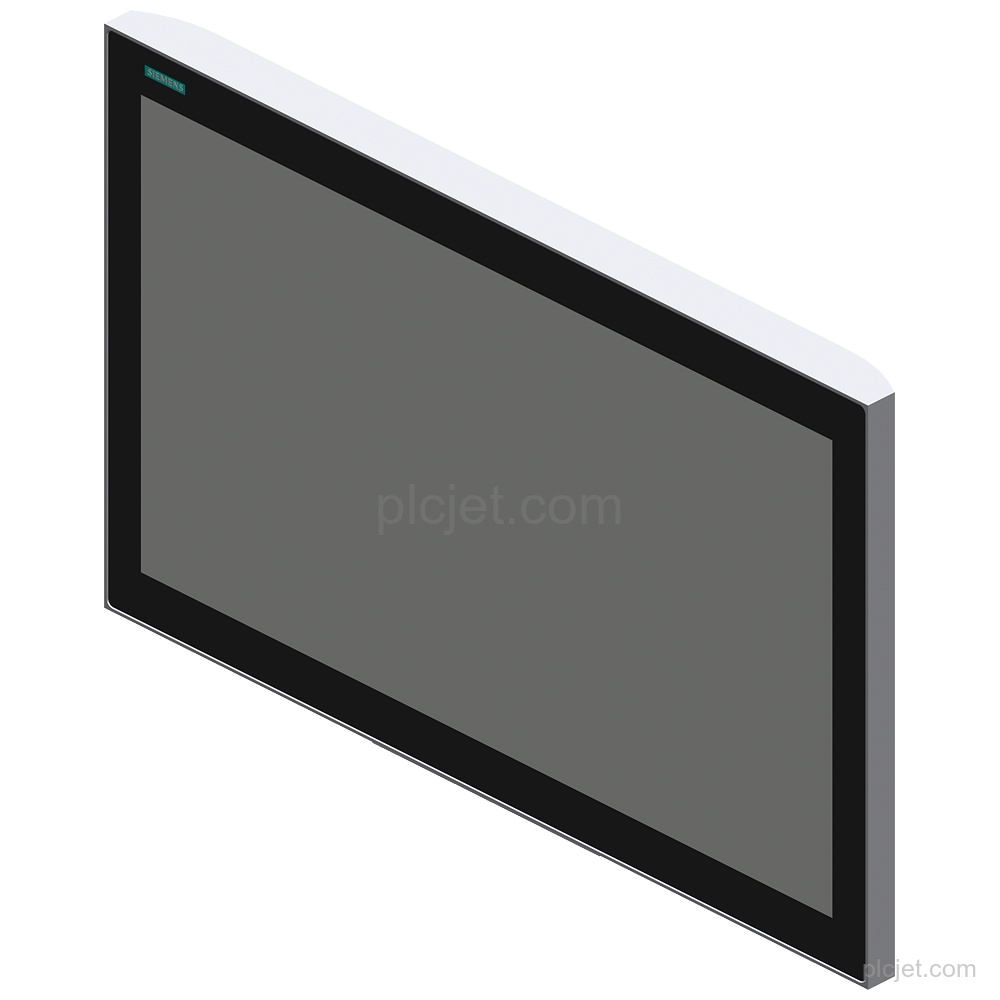

22" widescreen TFT display with LED backlighting, 1 920 x 1 080 resolution, and projective-capacitive multi-touch.
2 industrial Ethernet interfaces with switch function and transmission rate up to 1 000 Mbit/s.
Supports Sm@rtServer, RDP, VNC viewer, Citrix, and SINUMERIK.
DC supply with rated value 24 V and permissible range from 19.2 V to 28.8 V.
Pedestal mounting; stand mounting is prepared for pedestal and extension components. Front mounting, support arm mounting, and built-in installation are not available.
Front protection is IP65; the front also has NEMA Enclosure Type 4, Type 4x, and Type 12.
Frequently Asked Questions
What is the exact product type for 6AV6646-1BB22-1AA0?
The product type designation is ITC2200 V3 PRO. The collected description identifies it as a spare part and industrial thin client.
What display and touch configuration does it have?
It has a 22" widescreen TFT display with 1 920 x 1 080 resolution and a projective-capacitive multi-touch screen.
Which interfaces and terminal protocols are supported?
It has 2 industrial Ethernet ports with switch function and 4 USB interfaces on the rear. Supported terminal protocols are Sm@rtServer, RDP, VNC viewer, Citrix, and SINUMERIK.
Which mounting options are available?
It has pedestal mounting. Stand mounting is prepared for pedestal and extension components; front mounting, support arm mounting, and built-in installation are not available.
