Product Overview
Applications
Touch buttons can be used as S7 input I/O for direct operator control of the process.
Technical Summary

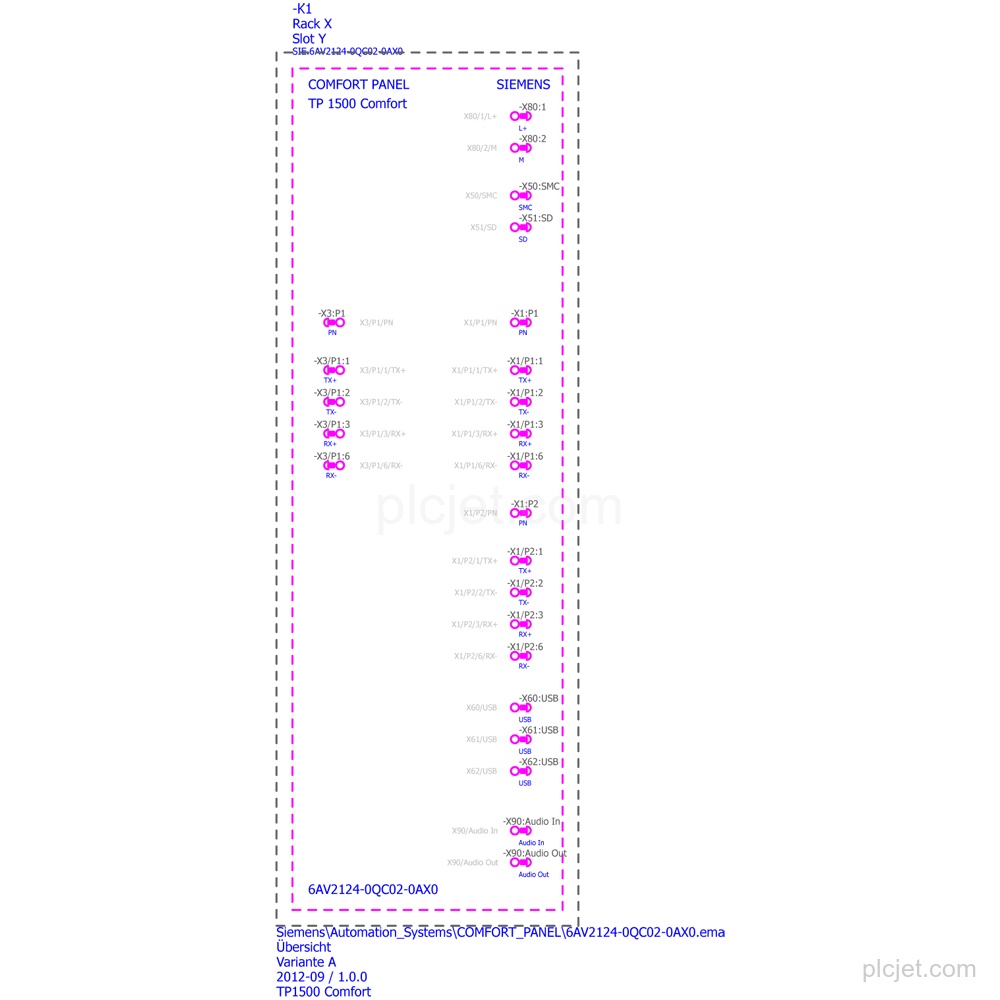

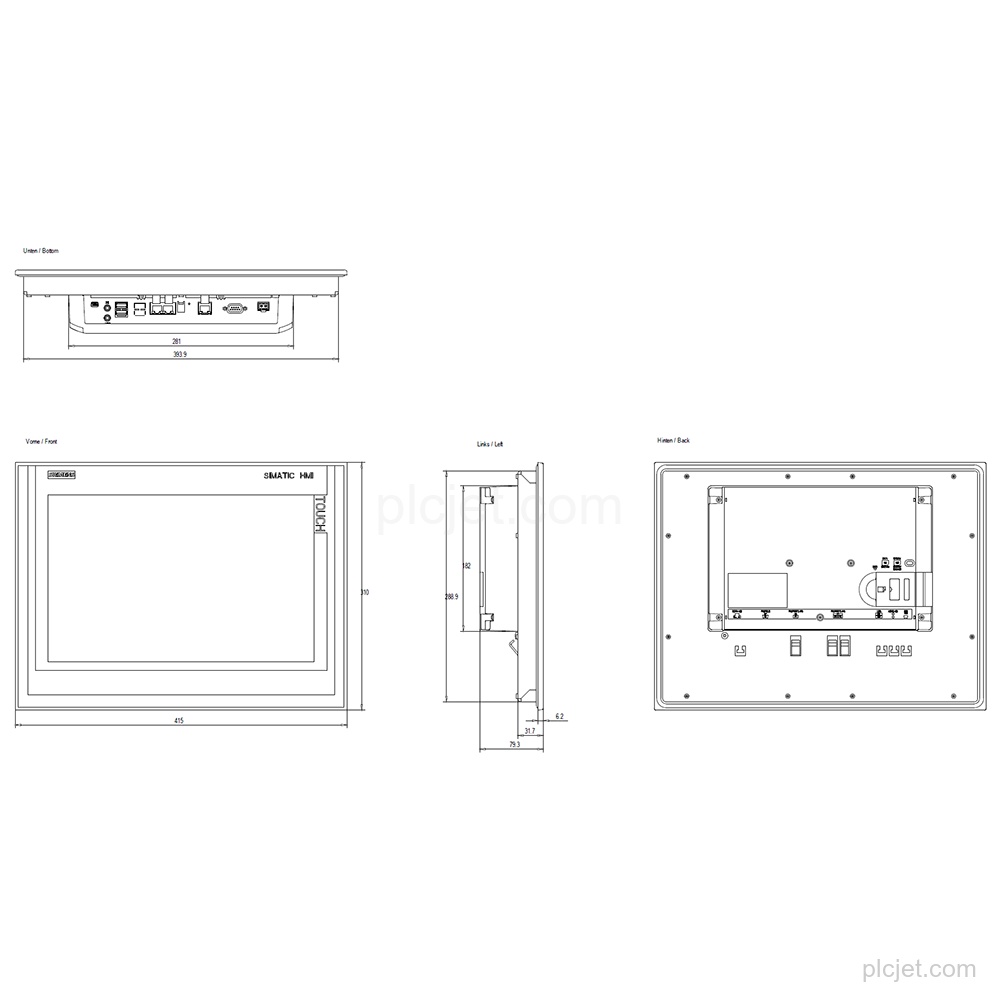

| Product type | TP1500 Comfort |
|---|---|
| Display | 15.4 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 280 pixel horizontal × 800 pixel vertical |
| Touch operation | Yes; Analog-resistive |
| Direct keys | 40 touch buttons as S7 input I/O |
| Interfaces | 2 industrial Ethernet; 1 combined RS 422 / 485; 2 USB 2.0; 2 SD card slots |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP |
| Configuration memory | 24 MB available for user data |
| Supply | 24 V DC nominal; permissible range 19.2 V to 28.8 V |
| Mounting | Vertical; portrait and landscape possible |
| Protection | IP65 front; IP20 rear |
Key Features
15.4 in widescreen TFT display with 16 777 216 colors, 1 280 pixel horizontal image resolution, and 800 pixel vertical image resolution.
2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots. PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, and LLDP are supported.
24 MB of memory is available for user data; the device is configurable as of WinCC Comfort V11 SP2.
DC supply with a nominal value of 24 V and a permissible range from 19.2 V to 28.8 V; typical active power input is 36 W.
Vertical mounting; mounting in portrait or landscape format is possible. The maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
Product cancellation.
Frequently Asked Questions
What is the exact product type of 6AV2124-0QC02-0AX0?
It is a SIMATIC HMI TP1500 Comfort spare part.
What display and touch configuration does it have?
It has a 15.4 in widescreen TFT display with 16 777 216 colors, 1 280 pixel × 800 pixel resolution, and an Analog-resistive touch screen.
Which interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots. Supported protocols include PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, and LLDP.
What supply and mounting details should be retained for a quotation?
Supply is 24 V DC nominal, with a permissible range from 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape formats possible; protection is IP65 at the front and IP20 at the rear. Include quantity, destination, schedule, and any additional BOM lines in the inquiry.
