Product Overview
Applications
Supports operator control of the process through touch operation and 40 direct keys configured as S7 input I/O.
Technical Summary
| Product type | TP1900 Comfort PRO |
|---|---|
| Display | 19" widescreen TFT, 16 million colors |
| Resolution | 1 366 x 768 pixel |
| Touch operation | Yes; Projective-capacitive |
| Mounting | Support arm, vertical |
| Industrial Ethernet | 2; 2 ports (switch) + independent port |
| Configuration memory | 24 MB |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V DC permissible range |
| Interfaces | 1 RS 422 / 485 combined; 2 USB 2.0; 2 SD card slots |
| Protocols | PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP |
| Protection | IP65 front and rear; NEMA Enclosure Type 4 and Type 4x at the front |
Key Features

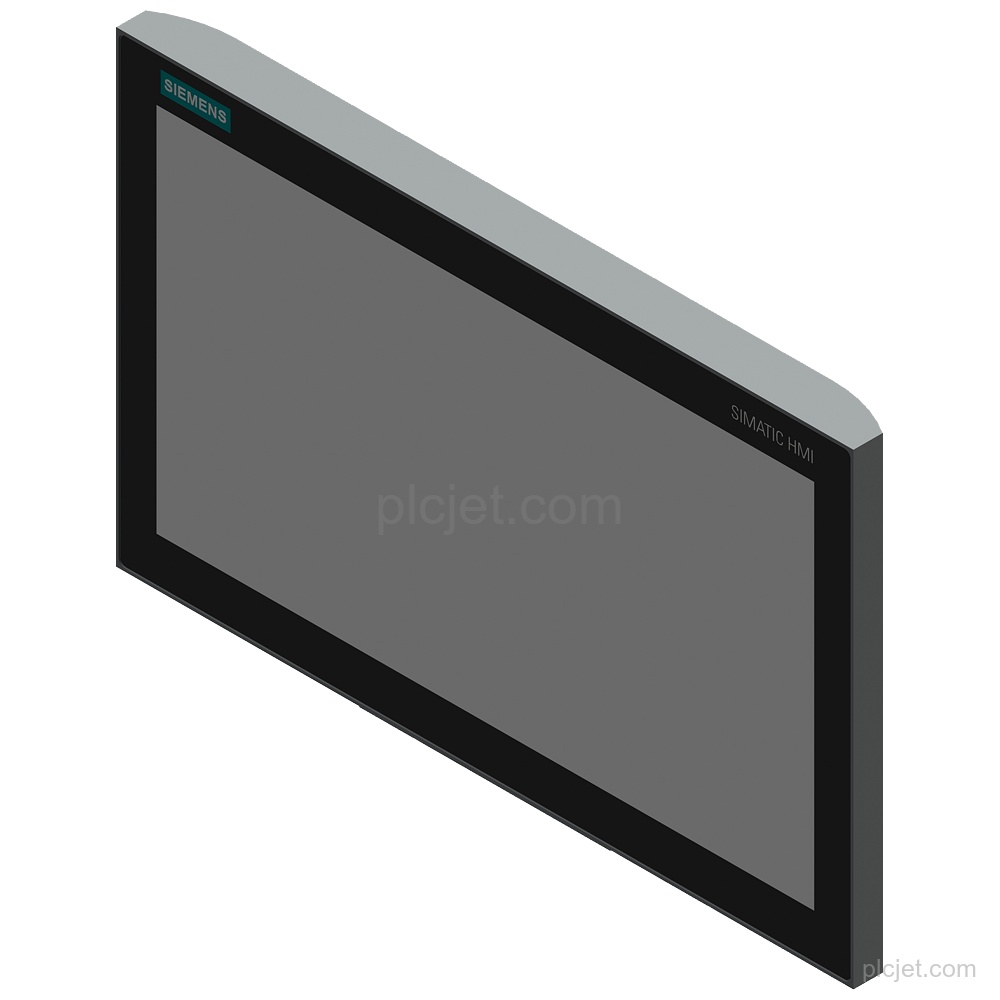

19" widescreen TFT display with 16 million colors, 1 366 x 768 pixel resolution, and projective-capacitive touch operation.

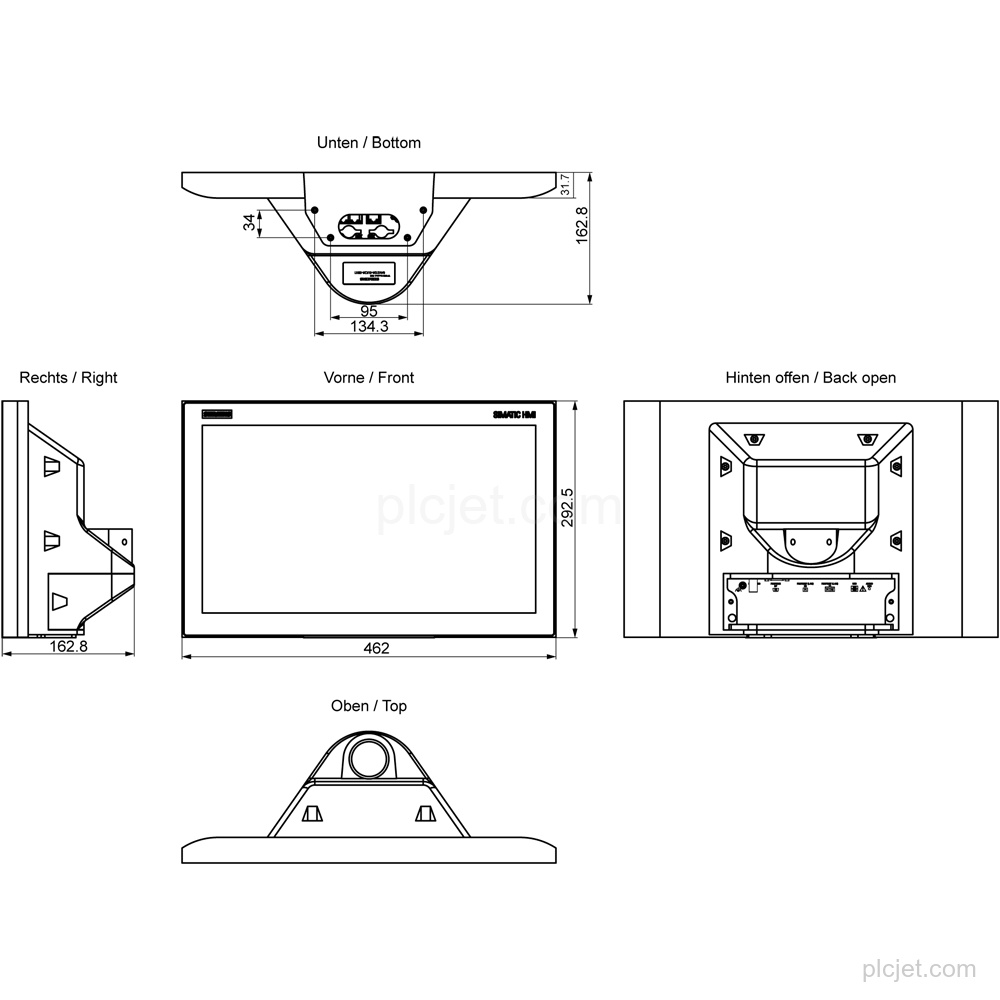

Designed for vertical support-arm mounting; portrait-format mounting is not possible. The maximum permissible angle of inclination without external ventilation is 35°.

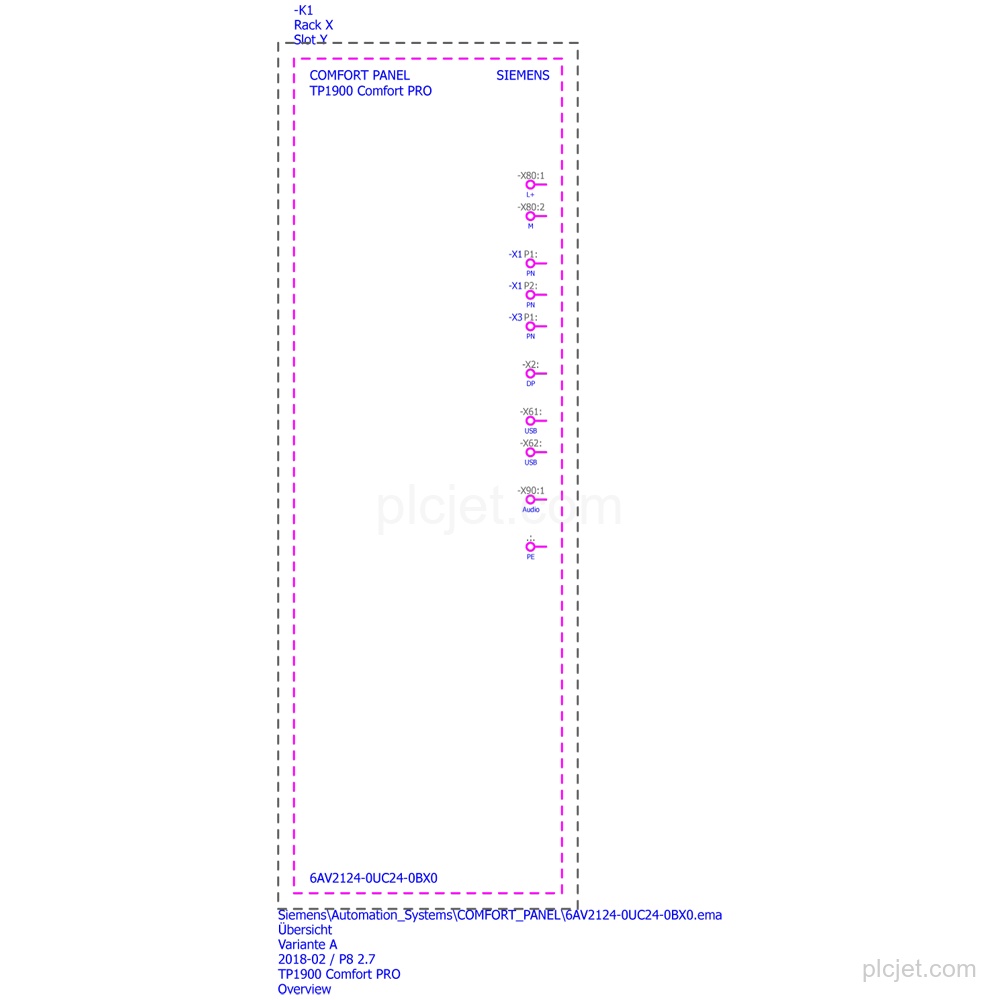

Has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots. Supports PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, and TCP/IP.
Provides 24 MB memory available for user data and is configurable as of WinCC Comfort V14 SP1 with HSP.
Uses 24 V DC rated supply voltage with a permissible range of 19.2 V to 28.8 V DC. Rated current consumption is 1.5 A and typical active power input is 36 W.
Has IP65 protection at the front and rear, NEMA Enclosure Type 4 and Type 4x at the front, and the product lifecycle is Product cancellation.
Frequently Asked Questions
What is the exact product variant?
It is the Siemens 6AV2124-0UC24-0BX0, SIMATIC HMI TP1900 Comfort Pro.
What mounting configuration does this line item use?
It uses vertical support-arm mounting. Portrait-format mounting is not possible, and the maximum permissible angle of inclination without external ventilation is 35°.
Which interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots. Supported protocols include PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, and TCP/IP.
