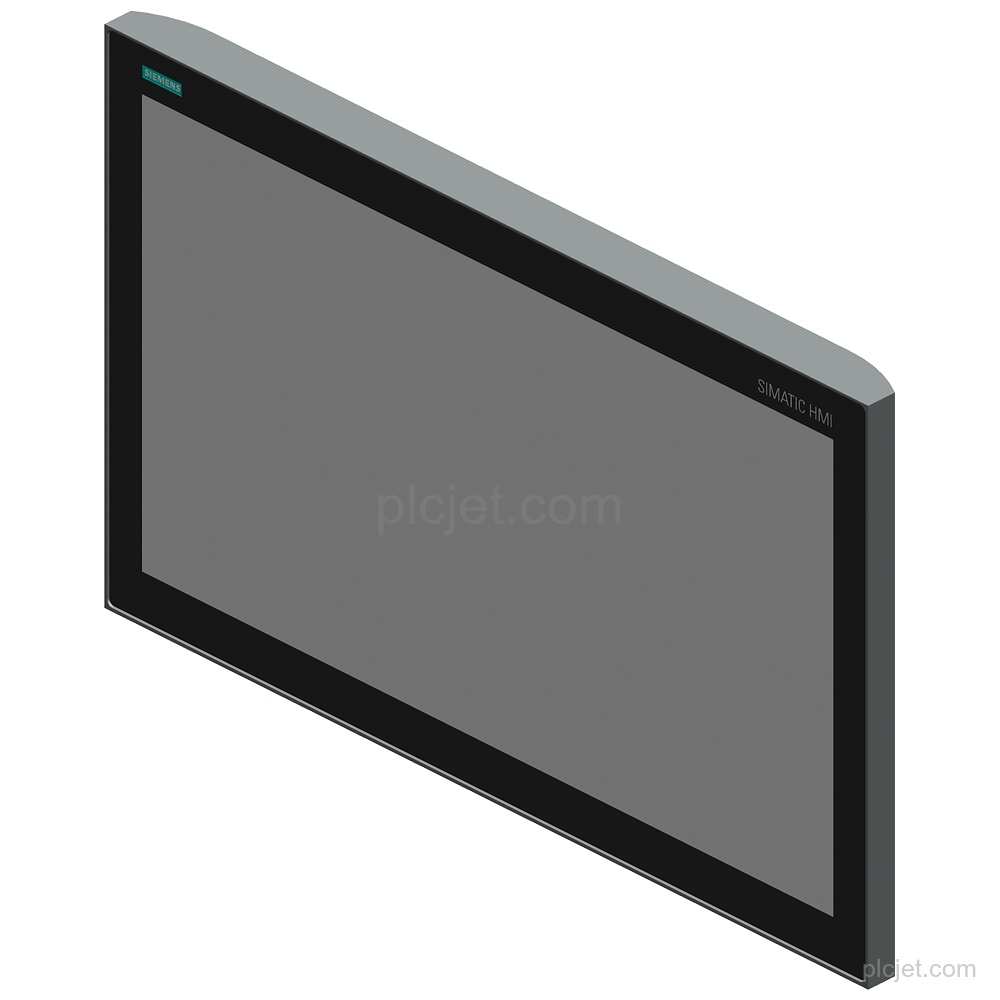

Product Overview
Technical Summary
| Product type | TP2200 Comfort PRO |
|---|---|
| Display | 21.5 in TFT widescreen, 1 920 x 1 080 pixel, 16 777 216 colors |
| Touch operation | Projective-capacitive touch screen |
| Mounting | Support arm; vertical; landscape format possible |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Configuration memory | 24 Mbyte |
| Industrial Ethernet | 2 interfaces; 2 ports (switch) + independent port |
| USB | 2 USB 2.0 interfaces |
| SD card slots | 2 |
| Protection | IP65 at the front and rear; NEMA Enclosure Type 4 and Type 4x at the front |
| Lifecycle | Product cancellation |
Key Features
21.5 in TFT widescreen display with 16 777 216 colors, 1 920 x 1 080 pixel resolution, and projective-capacitive touch operation.
Support-arm mounting in vertical position; landscape format is possible, while portrait format is not.
24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; typical active power input is 44 W.
2 industrial Ethernet interfaces with 2 switch ports and 1 independent port, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, and Active X are supported.
Product cancellation.
Frequently Asked Questions
What is the exact model and product type?
The exact model is 6AV2124-0XC24-0BX0, with product type designation TP2200 Comfort PRO.

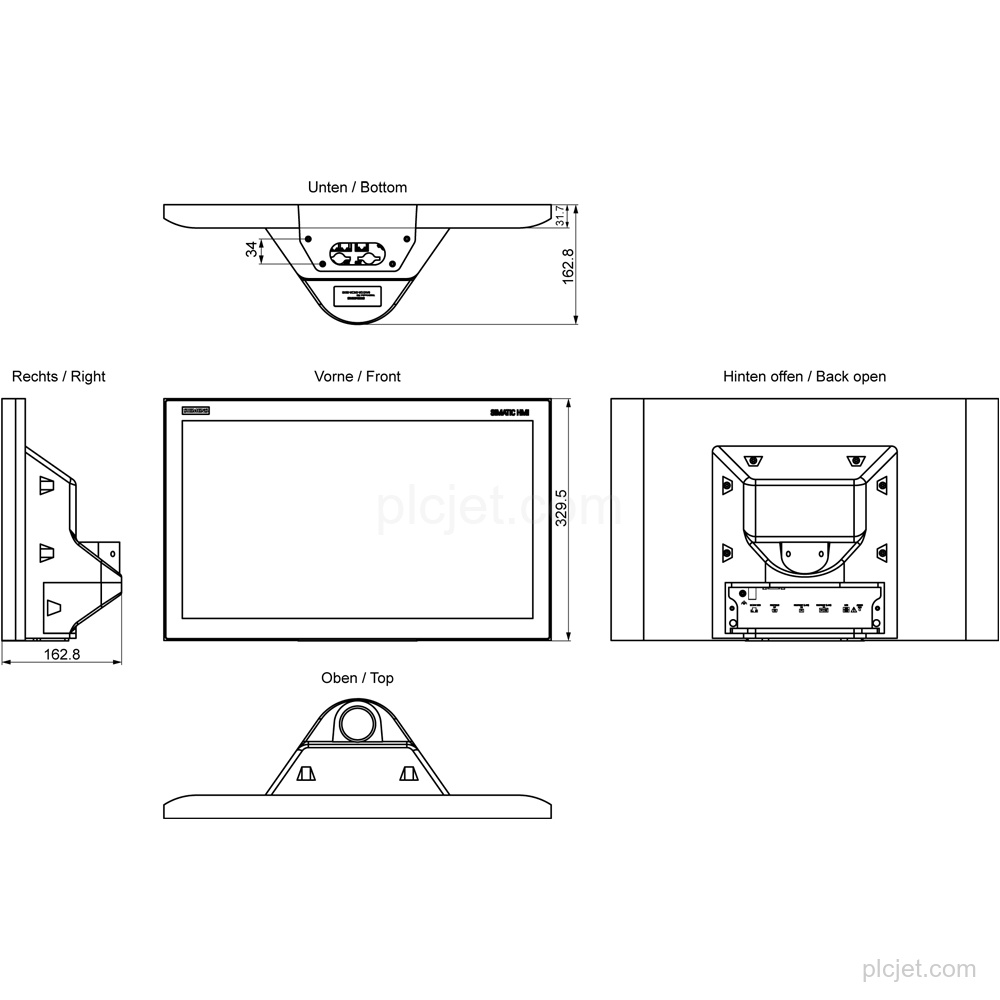

How is this HMI panel mounted?
It uses support-arm mounting in a vertical position. Landscape format is possible; portrait format is not.
What supply voltage does the panel use?
The supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.

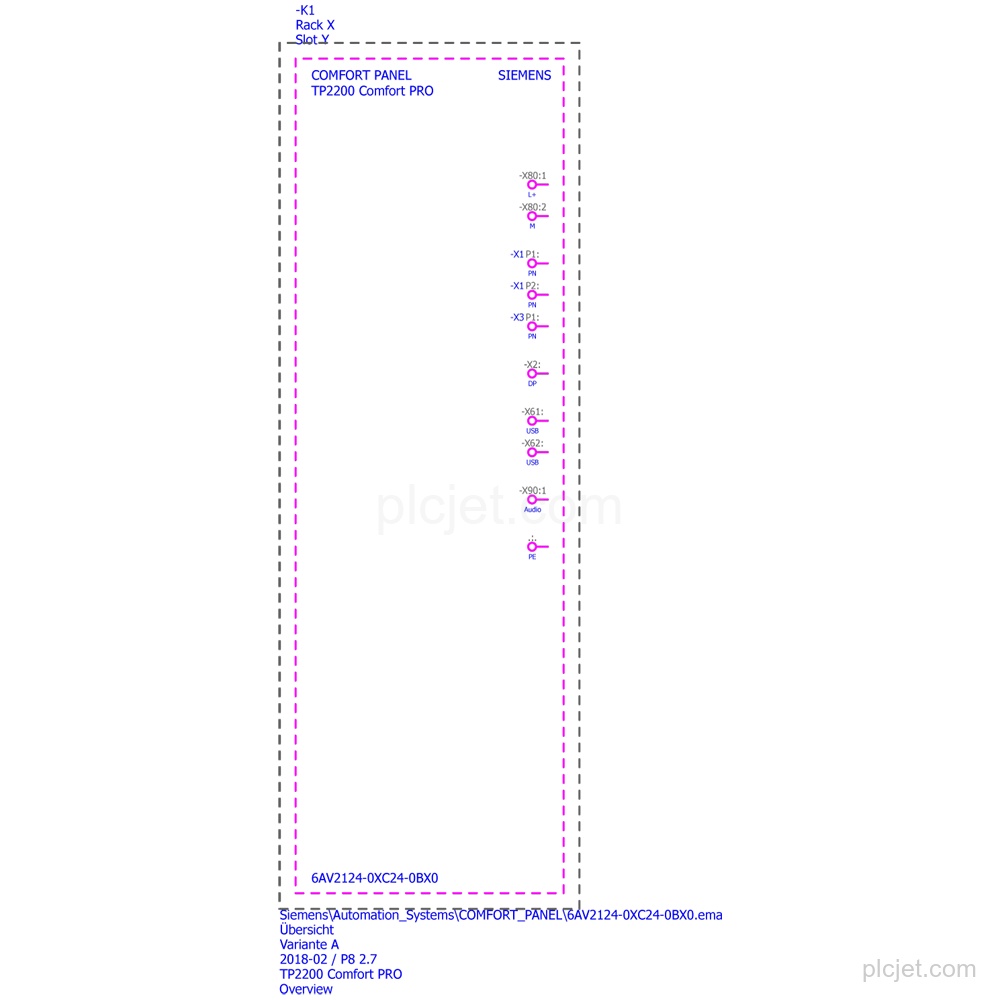

Which interfaces are available?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
