Product Overview
Technical Summary
| Product type | TP2200 Comfort PRO |
|---|---|
| Display | 21.5 in TFT, 1 920 × 1 080 pixel, 16 777 216 colors |
| Touch operation | Projective-capacitive touch screen |
| Interfaces | 2 industrial Ethernet ports; 1 RS 422 / 485; 2 USB 2.0; 2 SD card slots |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI and MODBUS |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| User-data memory | 24 Mbyte |
| Mounting | Pedestal; vertical; landscape format possible |
| Protection | IP65 at the front and rear |
| Lifecycle | Product cancellation |
Key Features
21.5 in TFT widescreen display with 1 920 × 1 080 pixel resolution, 16 777 216 colors and projective-capacitive touch operation.
2 industrial Ethernet ports in an integrated switch, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS.
24 V DC rated supply with a permissible range of 19.2 V to 28.8 V, plus 24 Mbyte available for user data.
Pedestal mounting in a vertical position; landscape format is possible, portrait format is not, and the maximum permissible inclination without external ventilation is 35°.
Product cancellation.
Frequently Asked Questions
What exact HMI variant is represented by order number 6AV2124-0XC24-1AX0?

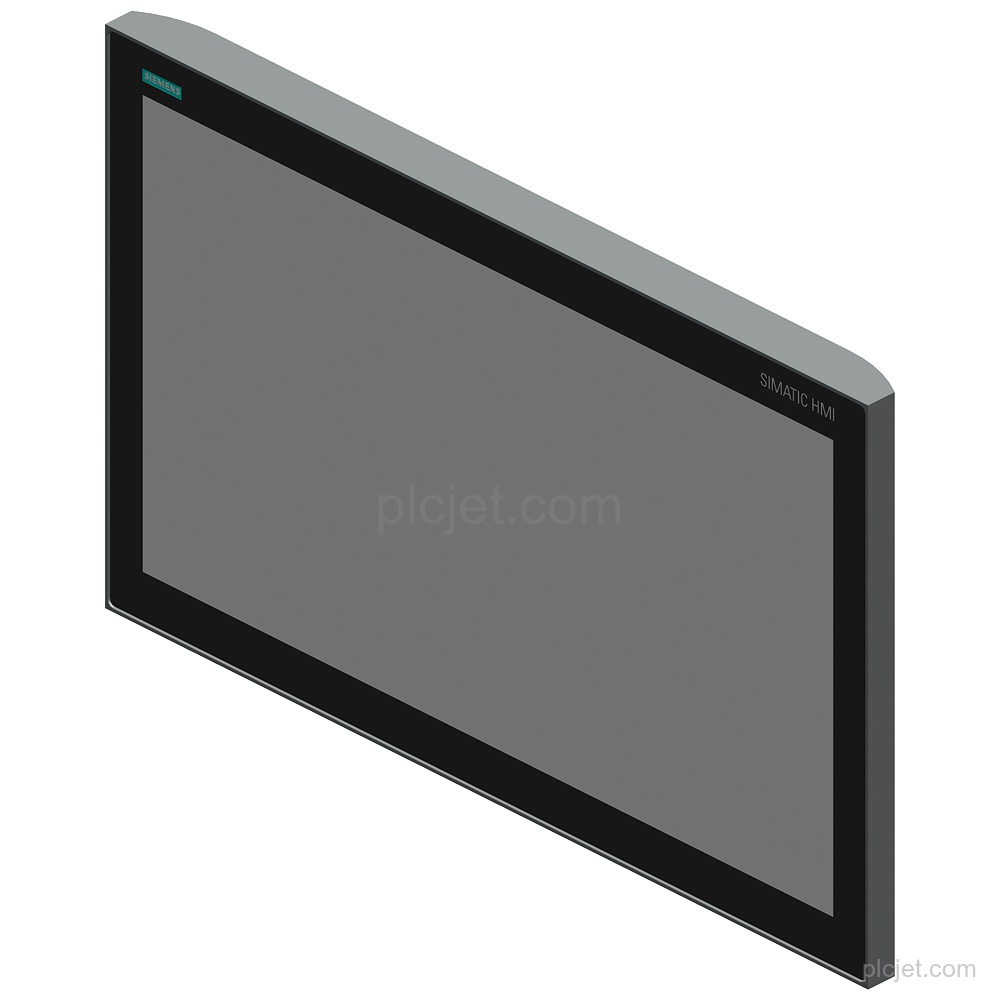

It is the TP2200 Comfort PRO HMI panel with touch operation, a 21.5 in TFT display and pedestal mounting.

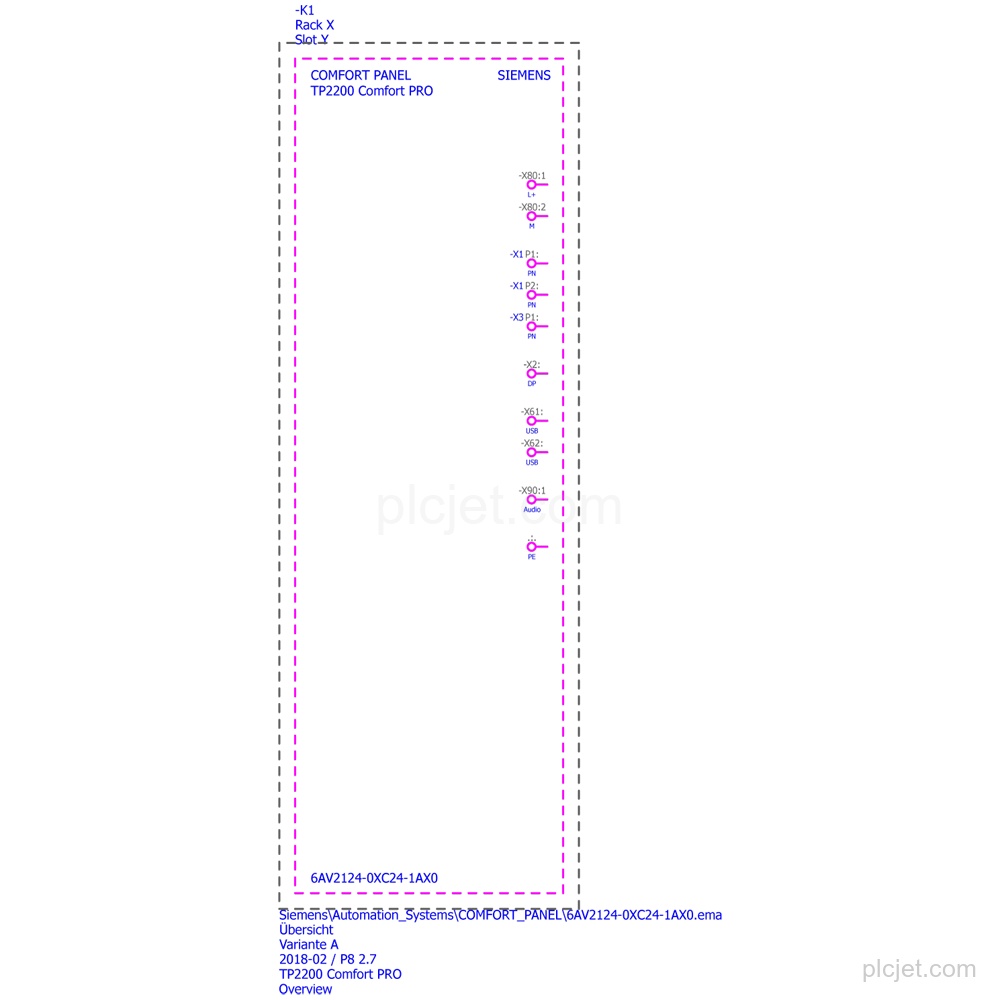

Which interfaces are available on this configuration?
It has 2 industrial Ethernet ports in an integrated switch, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces and 2 SD card slots.
What supply voltage does the panel use?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.

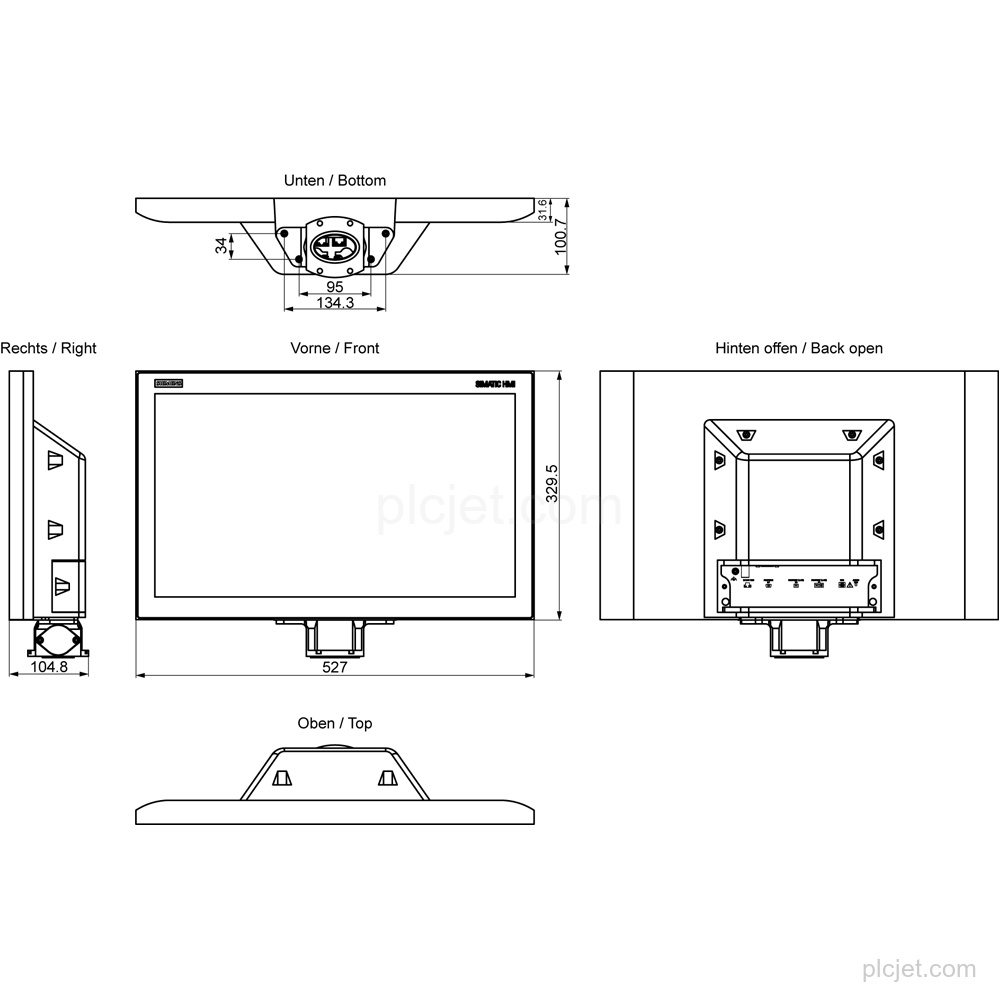

How is the panel mounted?
Mounting is pedestal-mounted and vertical. Landscape format is possible, portrait format is not, and the maximum permissible inclination without external ventilation is 35°.
What information should be included when requesting this line item?
Include the requested quantity, destination, schedule context and any additional BOM lines.
