Product Overview
Technical Summary

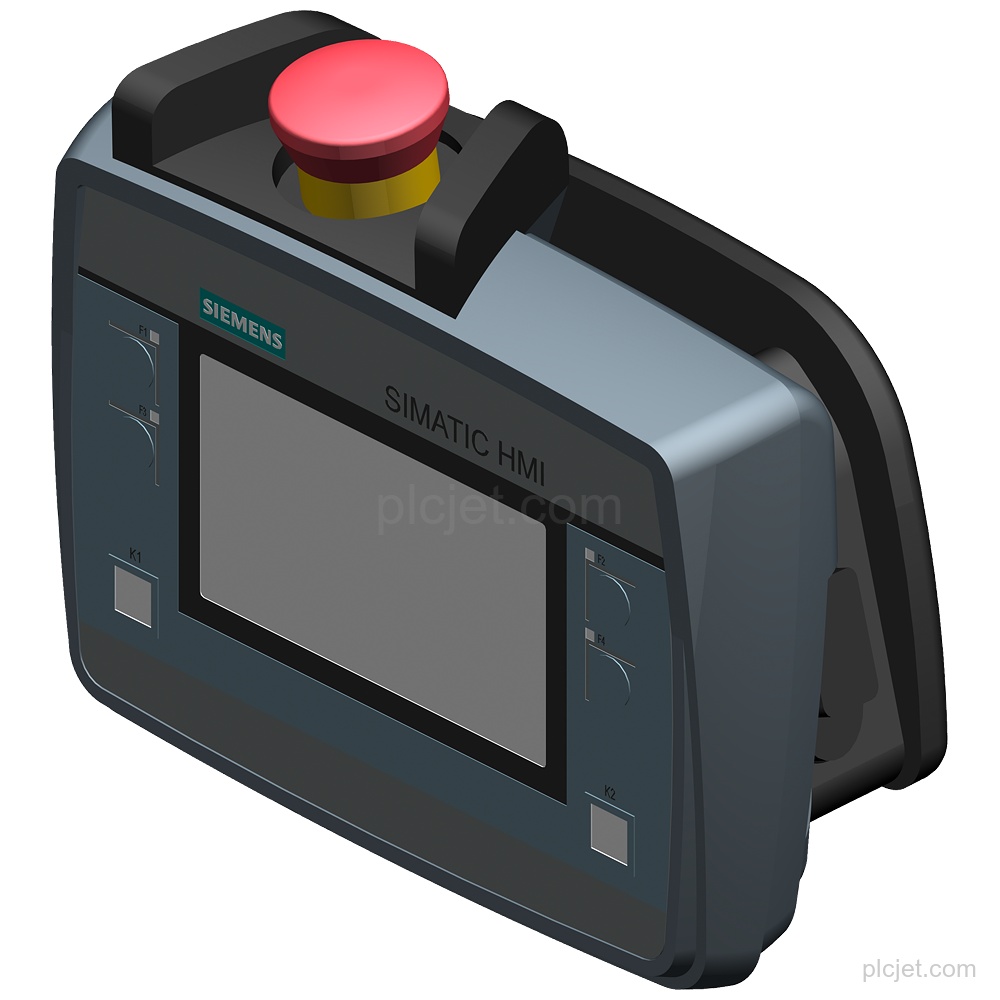

| Product type | KTP400F Mobile |
|---|---|
| Display | 4.3 in TFT color display |
| Resolution | 480 pixel × 272 pixel |
| Operator controls | Touch and key operation; 4 function keys |
| Safety controls | Illuminated emergency stop button with forced blocking; 3-stage acknowledgment button |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |

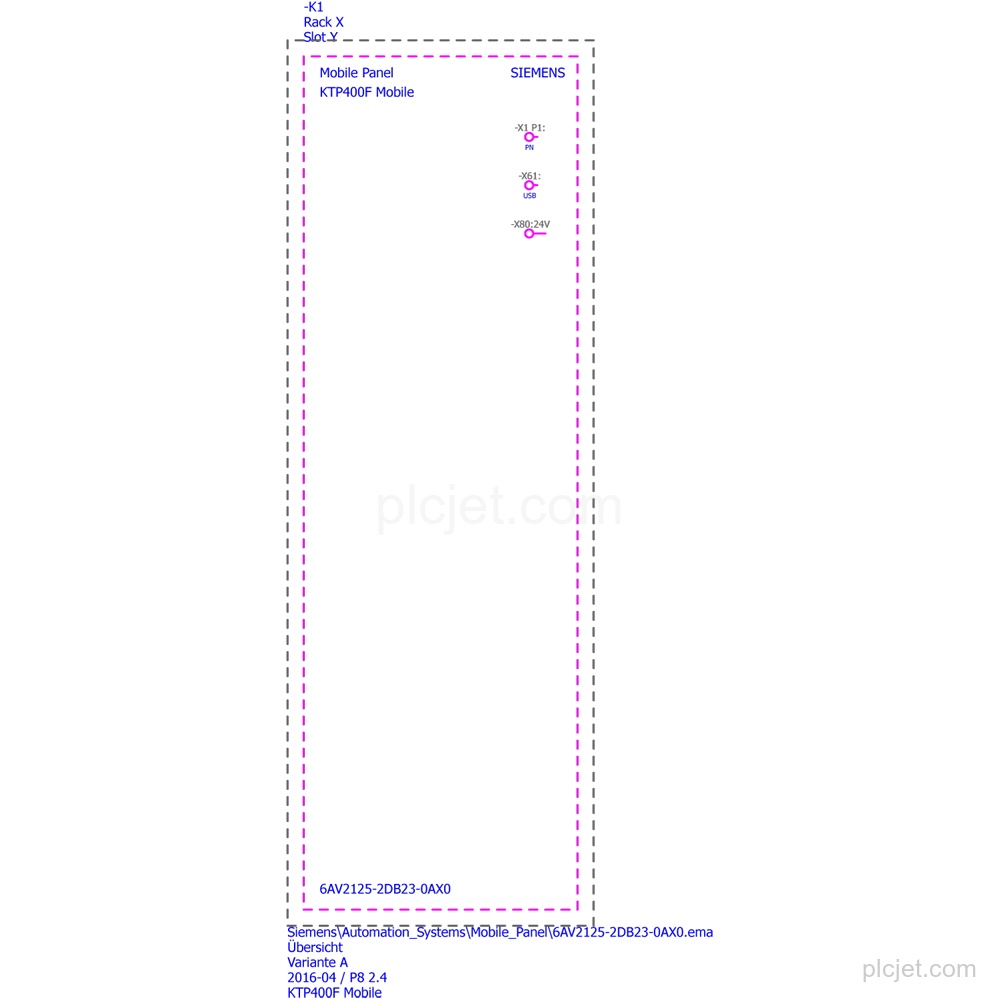

| Interfaces | 1 PROFINET; 1 industrial Ethernet; 1 USB 2.0 |
| Configuration | WinCC Comfort V13 SP1 with HSP |
Key Features
4.3 in TFT color display with 480 pixel horizontal and 272 pixel vertical resolution; 16 777 216 colors.
Touch and key operation with 4 function keys, illuminated emergency stop button with forced blocking, 3-stage acknowledgment button, and stop button with forced blocking.
24 V DC rated supply with a permissible range from 19.2 V to 28.8 V; current consumption is 210 mA.
1 PROFINET interface, 1 industrial Ethernet interface, and 1 USB 2.0 interface; PROFINET, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS are supported.
Configurable from WinCC Comfort V13 SP1 with HSP; memory available for user data is 4 Mbyte.
Product cancellation.
Frequently Asked Questions
What is the exact product type of 6AV2125-2DB23-0AX0?
It is the KTP400F Mobile spare part.
What display and operator controls does this configuration have?
It has a 4.3 in TFT color display with 480 pixel × 272 pixel resolution, touch and key operation, 4 function keys, an illuminated emergency stop button with forced blocking, and a 3-stage acknowledgment button.
What supply and interfaces should be retained in the quotation?
Supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Interfaces include 1 PROFINET, 1 industrial Ethernet, and 1 USB 2.0.
Can this line item be included in a project quotation with quantity and destination?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
