Product Overview
Technical Summary

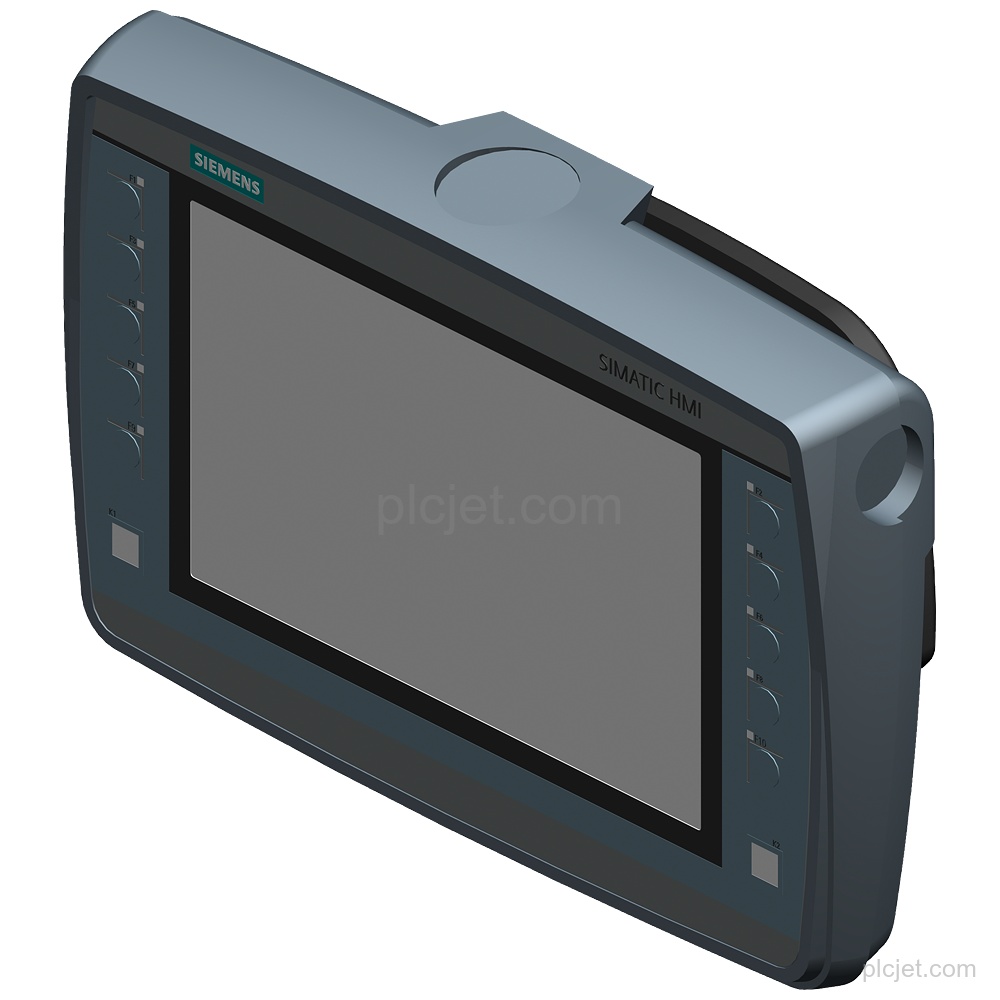

| Product type | KTP900 Mobile |
|---|---|
| Display | 9.0" TFT widescreen display, LED backlighting |
| Resolution | 800 x 480 pixel |
| Number of colors | 16 777 216 |
| Operation | Key and touch operation; 10 function keys |
| Supply | 24 V DC; 19.2 V to 28.8 V DC permissible range |
| Interfaces | 1 PROFINET, 1 industrial Ethernet, 1 USB 2.0, 1 SD card slot |
| User data memory | 12 Mbyte |
| Protocols | PROFINET, PROFINET IO, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP |
| Protection | IP65 (all-round) |
| Product lifecycle | Active Product |
Key Features
9.0" TFT widescreen display with LED backlighting, 800 x 480 pixel resolution, and 16 777 216 colors.
Key and touch operation with 10 function keys, numeric and alphanumeric onscreen keyboards, and no multi-touch operation.
1 PROFINET interface, 1 industrial Ethernet interface, 1 USB 2.0 interface, and 1 SD card slot.
Supports PROFINET, PROFINET IO, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, CSS, JavaScript, MRP, and MODBUS.
Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Current consumption: 450 mA.
Active Product. Packaging dimensions: 32.10 x 24.50 x 10.20 cm; net weight: 1.635 kg.
Frequently Asked Questions
What is the exact product type of 6AV2125-2JB03-0AX0?
It is the Siemens KTP900 Mobile.
What display and operation configuration does this line item have?
It has a 9.0" TFT widescreen display with 800 x 480 pixel resolution and 16 777 216 colors. Operation is by keys and touch, with 10 function keys.
Which interfaces are available?
It has 1 PROFINET interface, 1 industrial Ethernet interface, 1 USB 2.0 interface, and 1 SD card slot.
What supply voltage does it require?
Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
Can this exact line item be included in a multi-line quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
