Product Overview
Applications
Connects PROFIBUS stations to the PROFIBUS bus cable.
Technical Summary
| Product type | PROFIBUS connector |
|---|---|
| Product description | PROFIBUS bus connector, RS 485, screw, without programming port, 35° |
| Transfer rate | 9.6 kbit/s to 12 Mbit/s |
| Cable connections | 2 |
| Network component connection | 1 9-pin sub D connector |

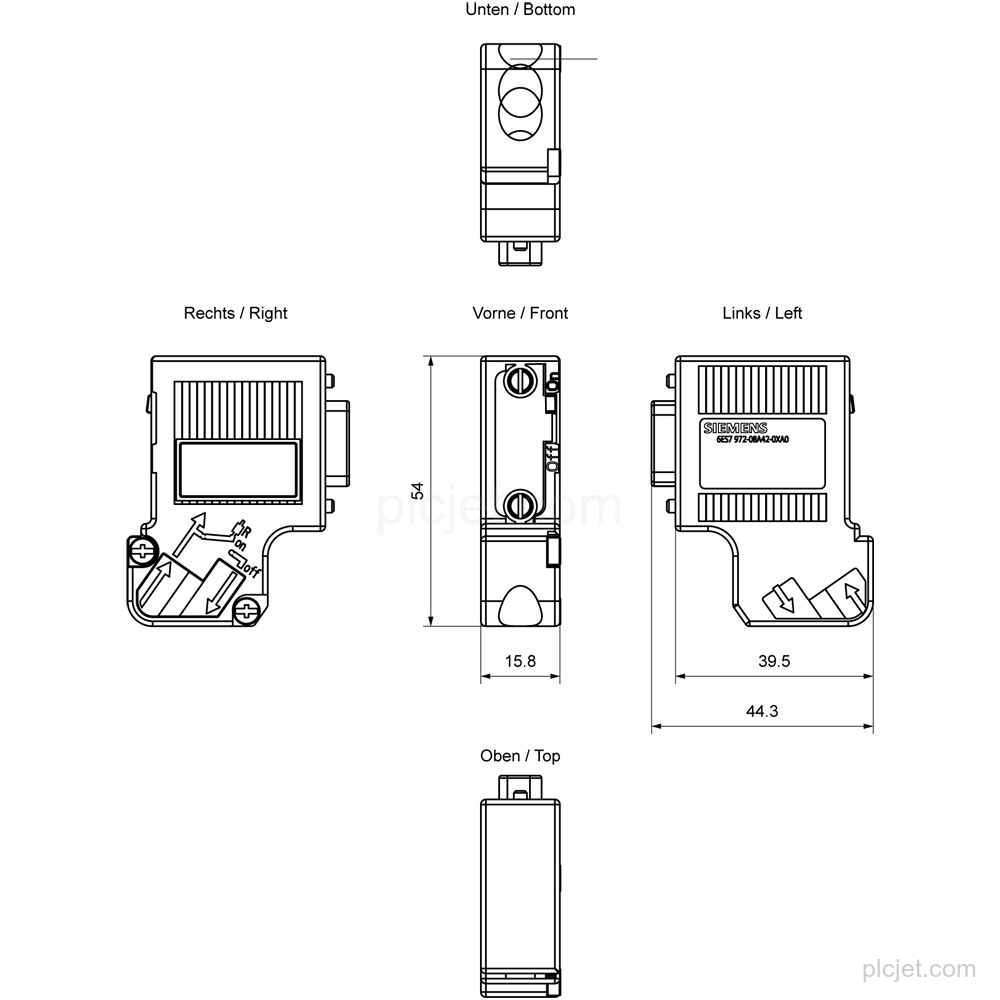

| Cable outlet | 35° |
| Protection class | IP20 |
Key Features
Connects PROFIBUS stations to the PROFIBUS bus cable.
Supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
Provides 2 screw connections for PROFIBUS cables and 1 9-pin sub D connector for network components or terminal equipment.

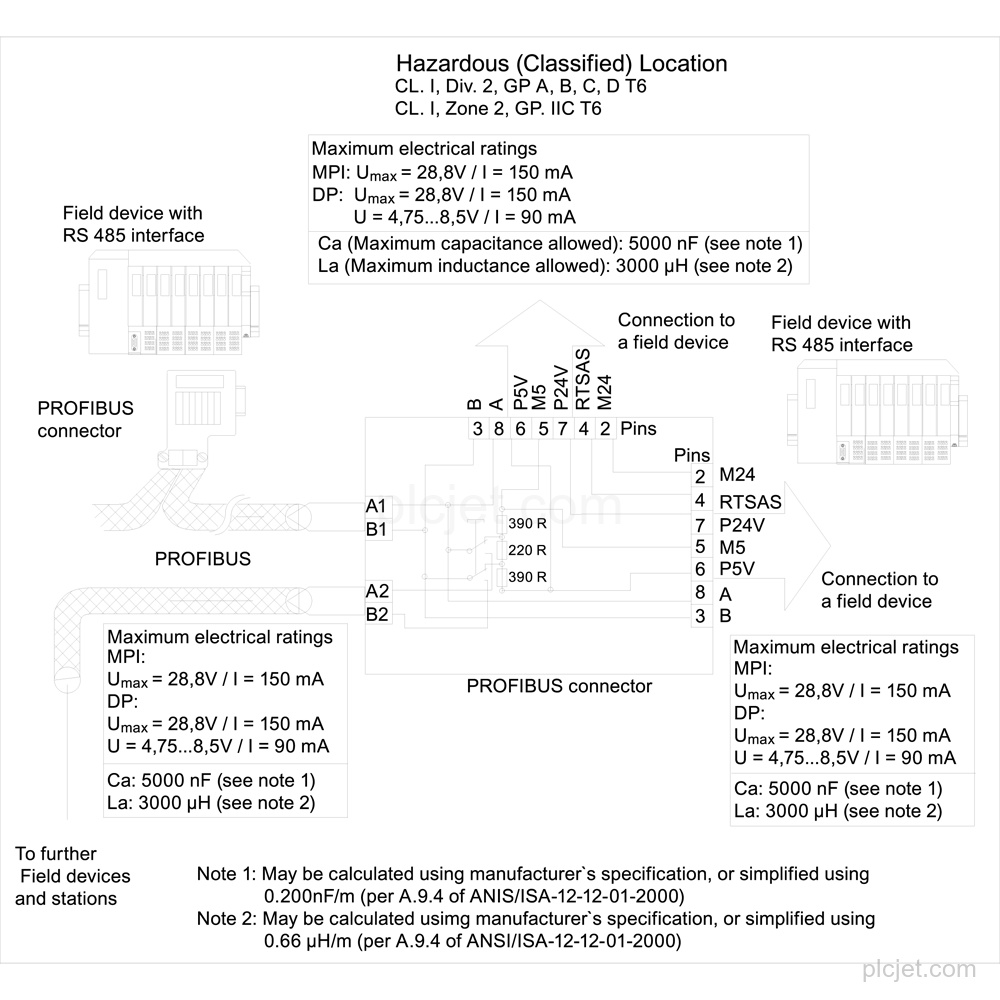

Includes an integrated resistor combination connectable via slide switch.
Has a 35° cable outlet, plastic enclosure, and screwed joint locking mechanism.
Without programming port, PG connection socket, and FastConnect electrical connection.
Frequently Asked Questions
What is the exact product type of 6ES7972-0BA42-0XA0?
It is a Siemens SIMATIC PROFIBUS bus connector with RS 485 screw connection, without programming port, and with a 35° cable outlet.
What transfer rate does this PROFIBUS connector support?
It supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
Which connections are provided?
It has 2 screw connections for PROFIBUS cables and 1 9-pin sub D connector for network components or terminal equipment.
Is the connector supplied with a programming port or PG connection socket?
It is without a programming port and without a PG connection socket.
