Product Overview
Applications
Used for connecting PROFIBUS stations to the PROFIBUS bus cable.
Technical Summary
| Product type | PROFIBUS connector |
|---|---|
| Product description | PROFIBUS bus connector, RS 485, FastConnect, without programming port, 90° |
| Transfer rate | 9.6 kbit/s to 12 Mbit/s |
| Electrical connections for PROFIBUS cables | 2 |
| Electrical connection for network components or terminal equipment | 9-pin sub D connector |
| FastConnect | Yes |
| Cable outlet | 90° cable outlet |
| Protection class | IP20 |
| PG connection socket | No |
Key Features
Connects PROFIBUS stations to the PROFIBUS bus cable.
Supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
Has integrated insulation displacement terminals for 2-core PB FC installation cables and a 9-pin sub D connector.

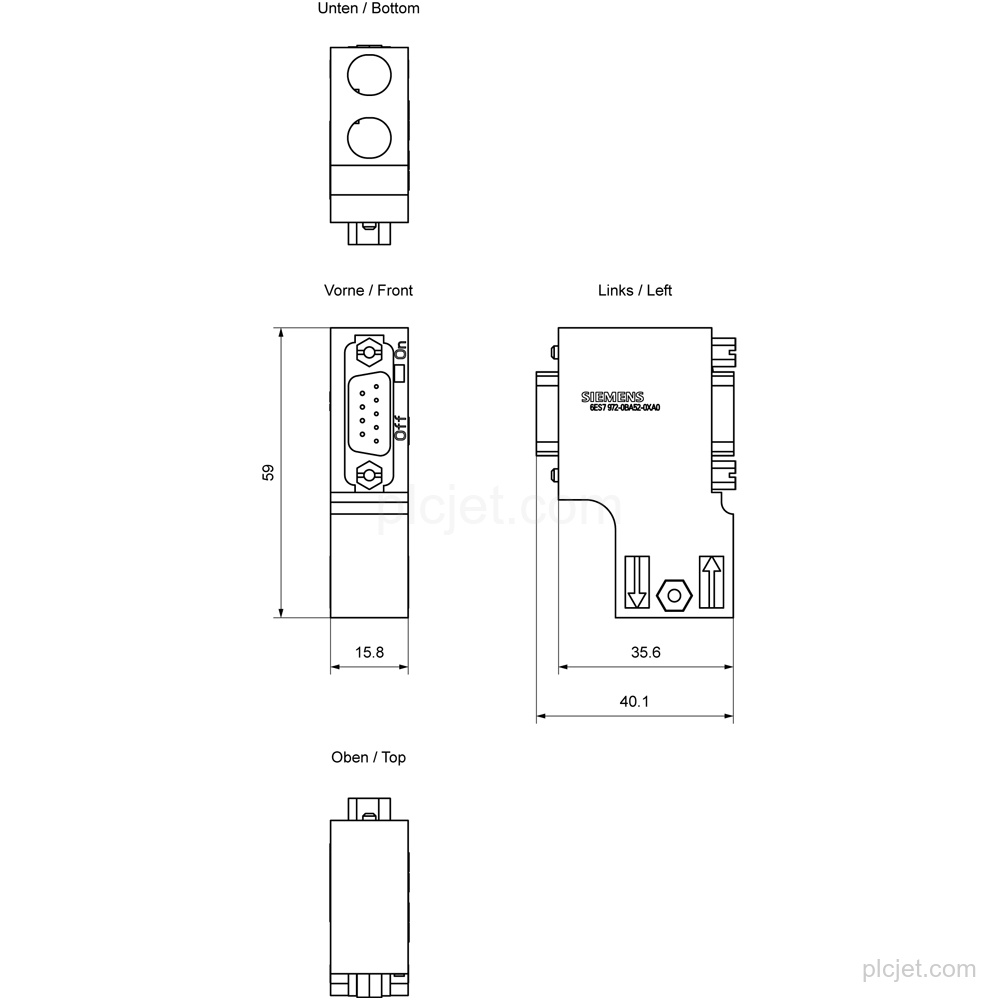

Provides a 90° cable outlet; dimensions are 15.8 mm width, 59 mm height, and 35.6 mm depth.

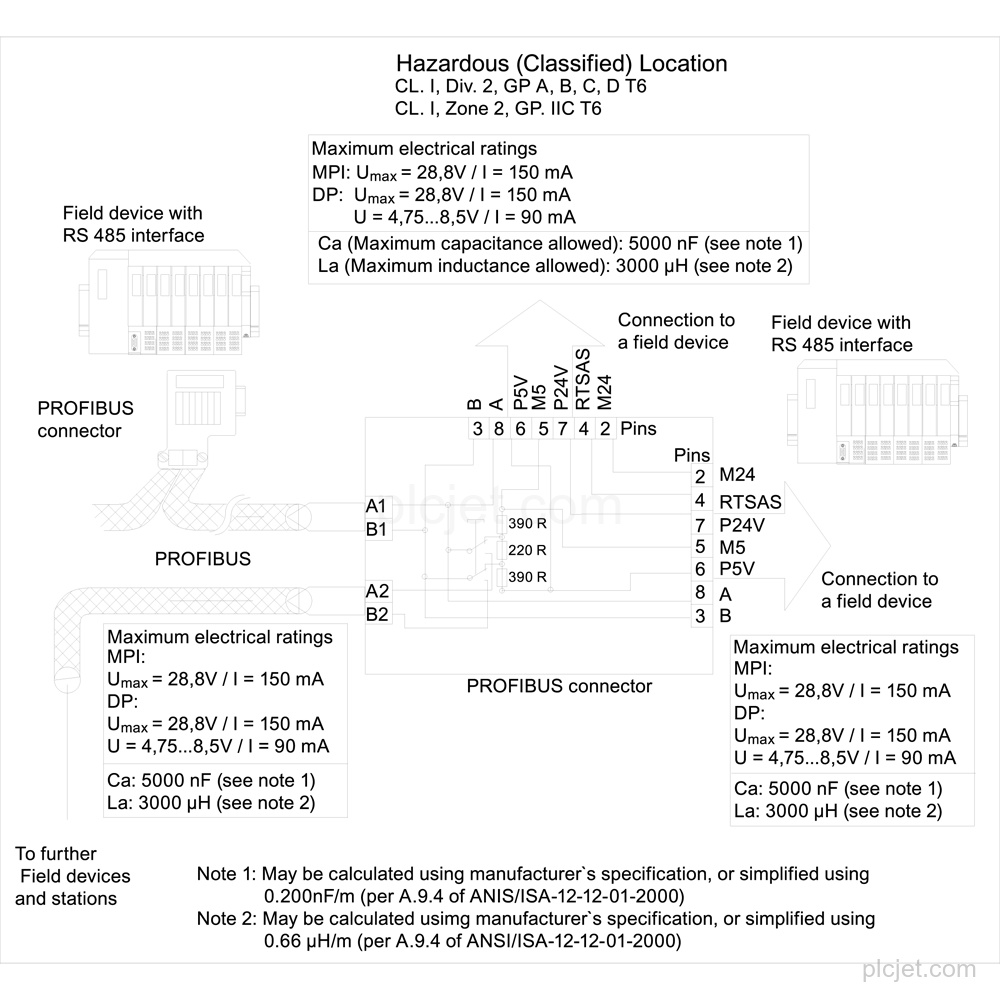

The resistor combination is integrated and connectable via a slide switch.
Has no PG connection socket, includes strain relief, and has IP20 protection.
Frequently Asked Questions
What is the exact product type of 6ES7972-0BA52-0XA0?
It is a SIMATIC PROFIBUS bus connector, RS 485, FastConnect, without programming port, with a 90° cable outlet.
What transfer rate does this PROFIBUS connector support?
It supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
Which connections are provided?
It has integrated insulation displacement terminals for 2-core PB FC installation cables and a 9-pin sub D connector.
Does the configuration include a PG connection socket?
It is without a PG connection socket.
Can this line item be included in a project quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines with the project list.
