Product Overview
Technical Summary
| Rated output power (LO) | 2.20 kW | 3.00 hp |
|---|---|
| Rated output power (HO) | 1.50 kW | 2.00 hp |
| Input supply | 3 AC, 380 … 480 V +10 % -20 % |
| Line frequency | 47 … 63 Hz |
| Communication | PROFIBUS DP |
| Safe function | Safe Torque Off integrated |
| Standard digital inputs | 6 |
| Fail-safe digital inputs | 1 |
| Analog input | 1 differential input, 10 bit |
| Degree of protection | IP20 / UL open type |
Key Features
2.20 kW | 3.00 hp under low overload; 1.50 kW | 2.00 hp under high overload.
3 AC, 380 … 480 V +10 % -20 %, with a line frequency of 47 … 63 Hz.

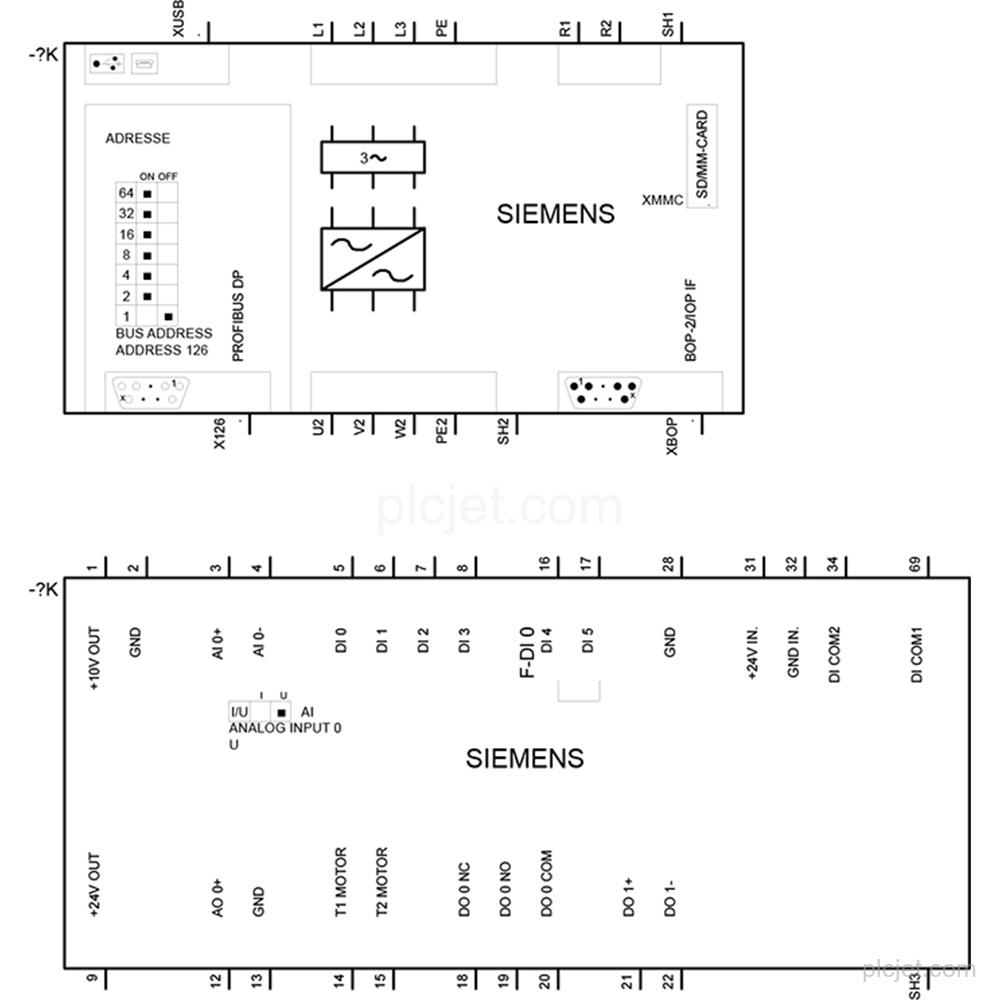

External 24 V I/O with 6 standard digital inputs, 1 fail-safe digital input, 2 digital outputs, 1 differential analog input, and 1 non-isolated analog output.
PROFIBUS DP communication and integrated Safe Torque Off.
IP20 / UL open type; frame size FSAA; 73 mm width and 155 mm depth.
Frequently Asked Questions
What is the rated output power of Siemens 6SL3210-1KE15-8UP2?
The rated output power is 2.20 kW | 3.00 hp under low overload and 1.50 kW | 2.00 hp under high overload.
Which communication interface does this line item have?
It has PROFIBUS DP communication.
What I/O is included in the configuration?
The configuration has external 24 V I/O: 6 standard digital inputs, 1 fail-safe digital input, 2 digital outputs, 1 differential analog input, and 1 non-isolated analog output.
What protection and mounting dimensions should be retained in the BOM?
Protection is IP20 / UL open type, with frame size FSAA, 73 mm width, and 155 mm depth.
What project details should be provided for quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM line items.
