Product Overview
Technical Summary
| Rated power (LO) | 3.00 kW | 4.00 hp |
|---|---|
| Rated power (HO) | 2.20 kW | 3.00 hp |
| Input | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| Output | 3 AC, rated voltage 400V IEC | 480V NEC |
| Maximum output current | 11.20 A |
| Output frequency for vector control | 0 … 240 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Communication | PROFIBUS DP |
| Protection | IP20 / UL open type |
| Frame size | FSA |
Key Features
Rated power: 3.00 kW | 4.00 hp (LO) and 2.20 kW | 3.00 hp (HO). Low overload: 150% for 3s, 110% for 57s, 100% for 240s; high overload: 200% for 3s, 150% for 57s, 100% for 240s.
Input: 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz. Output: 3 AC, rated voltage 400V IEC | 480V NEC, with maximum output current 11.20 A.
Control includes V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law and sensorless vector control. Communication: PROFIBUS DP.

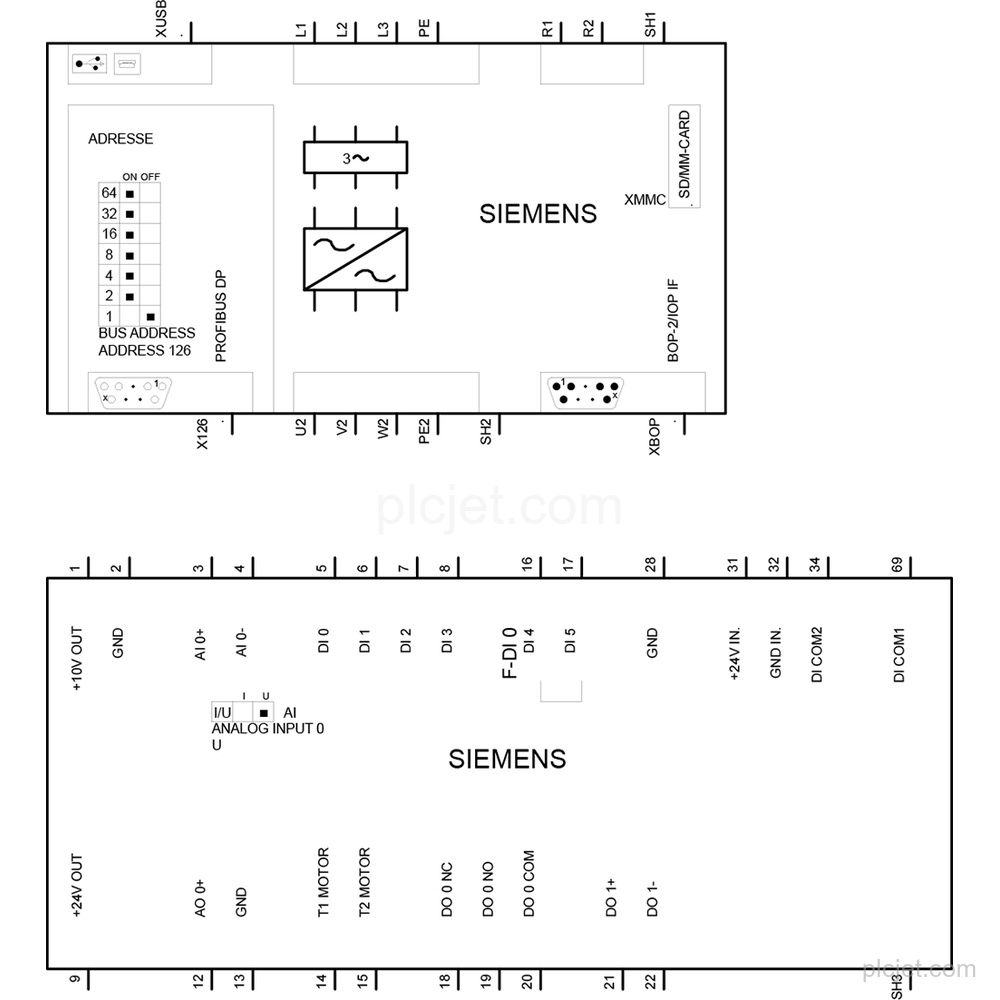

The interface has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact output, 1 transistor output, 1 differential analog input and 1 non-isolated analog output. Safe Torque Off is integrated.
Frame size: FSA. Protection: IP20 / UL open type. Line, motor-end and DC-link connections use plug-in screw terminals; maximum shielded motor cable length is 50 m (164.04 ft).
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens SINAMICS G120C, order number 6SL3210-1KE17-5AP1.
What input supply does this configuration use?
Input: 3 AC, 380 … 480 V +10 % -20 %, at 47 … 63 Hz.
What communication interface and I/O are included?
It has PROFIBUS DP, 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact output, 1 transistor output, 1 differential analog input and 1 non-isolated analog output.
What should I provide for a quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM lines.
