Product Overview
Technical Summary
| Product lifecycle | Active Product |
|---|---|
| Input supply | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| Rated power, low overload | 3.00 kW | 4.00 hp |
| Rated power, high overload | 2.20 kW | 3.00 hp |
| Communication | PROFIBUS DP |

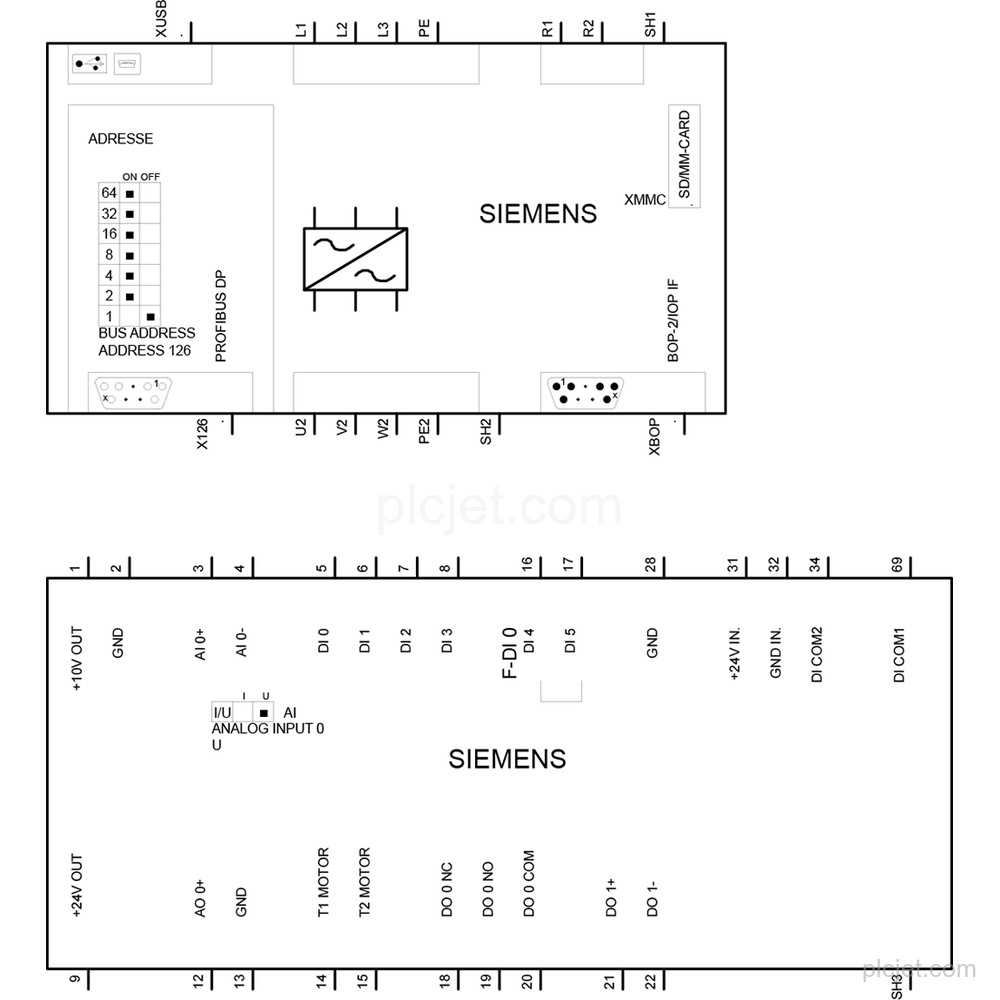

| I/O interface | 6DI, 2DO, 1AI, 1AO, 1Mot_t, unfiltered external 24 V |
| Safety function | Integrated Safe Torque Off |
| Output frequency for vector control | 0 … 240 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Protection | IP20 / UL open type |
Key Features
3.00 kW at low overload and 2.20 kW at high overload.
Low overload: 150% for 3s, 110% for 57s, 100% for 240s. High overload: 200% for 3s, 150% for 57s, 100% for 240s.
Unfiltered external 24 V I/O interface with 6DI, 2DO, 1AI, 1AO, 1Mot_t, and integrated Safe Torque Off.
PROFIBUS DP communication.
IP20 / UL open type protection; frame size FSA; dimensions 73 mm width x 203 mm depth.
Frequently Asked Questions
What is the exact product model?
The exact product model is Siemens 6SL3210-1KE17-5UP1, a SINAMICS G120C converter.
What are the low-overload and high-overload ratings?
Low overload is 3.00 kW at 150% for 3s, 110% for 57s, and 100% for 240s. High overload is 2.20 kW at 200% for 3s, 150% for 57s, and 100% for 240s.
Which communication and I/O interfaces are provided?
It has PROFIBUS DP and an unfiltered external 24 V I/O interface with 6DI, 2DO, 1AI, 1AO, and 1Mot_t.
What protection and mounting dimensions should be retained in the quotation?
Protection is IP20 / UL open type. The frame size is FSA, with 73 mm width and 203 mm depth.
What project details should accompany this line item?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
