Product Overview
Technical Summary
| Rated power (LO) | 4.00 kW | 5.00 hp |
|---|---|
| Rated power (HO) | 3.00 kW | 4.00 hp |
| Input | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| Output frequency for vector control | 0 … 240 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Communication | USS/MODBUS RTU |
| Standard digital inputs | 6 |
| Fail-safe digital inputs | 1 |
| Cooling | Air cooling using an integrated fan |
| Degree of protection | IP20 / UL open type |
| Frame size | FSA |
Key Features
Rated power is 4.00 kW | 5.00 hp for LO and 3.00 kW | 4.00 hp for HO. LO supports 150% for 3s, 110% for 57s and 100% for 240s; HO supports 200% for 3s, 150% for 57s and 100% for 240s.
Input is 3 AC, 380 … 480 V +10 % -20 %, with a line frequency of 47 … 63 Hz.

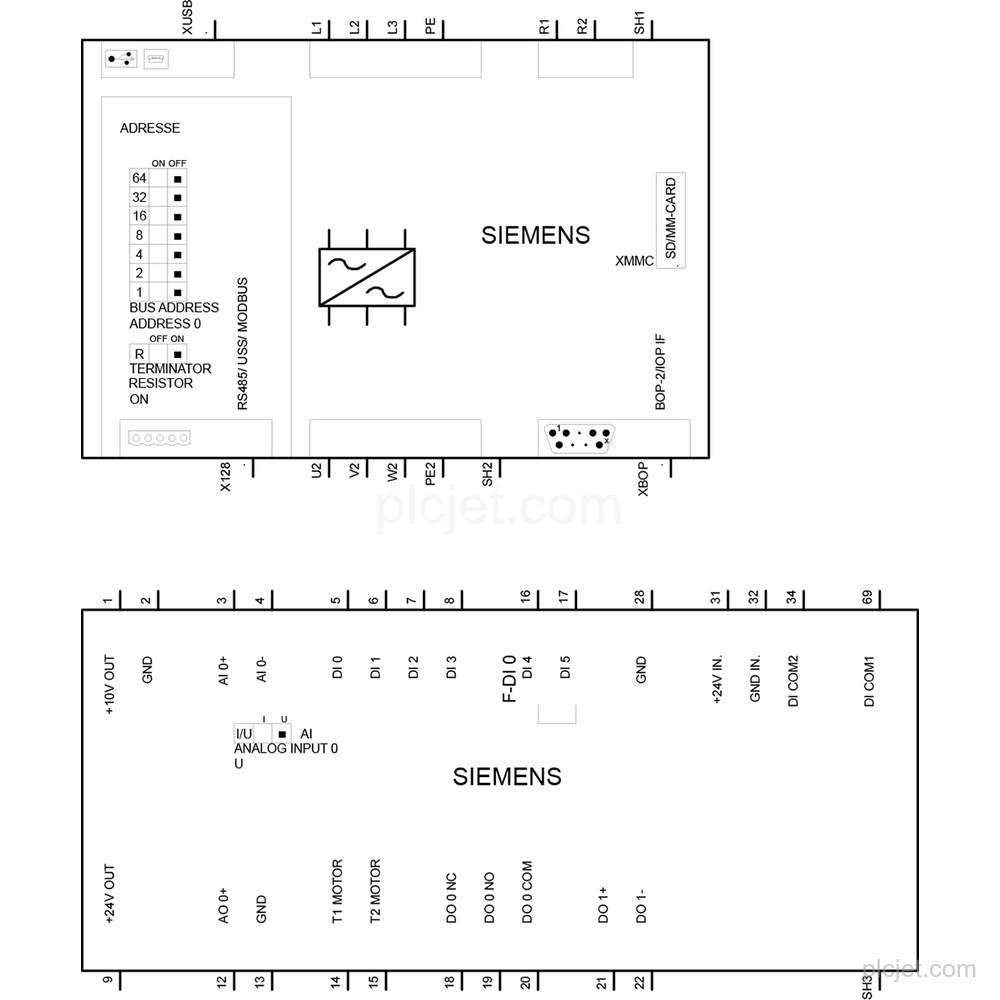

The unfiltered external 24V I/O interface has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential input and 1 non-isolated analog output.
Supported control includes V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law and sensorless vector control. Communication is USS/MODBUS RTU.
Line-side, motor-end and DC link connections use plug-in screw terminals. The DC link accepts 1.00 … 2.50 mm2 (AWG 18 … AWG 14) conductors and has a maximum line length of 15 m (49.21 ft).
Protection is IP20 / UL open type. Frame size is FSA; dimensions are 73 mm (2.87 in) width and 203 mm (7.99 in) depth, with 1.70 kg (3.75 lb) net weight.
Frequently Asked Questions
What is the rated power of Siemens 6SL3210-1KE18-8UB1?
The rated power is 4.00 kW | 5.00 hp for low overload and 3.00 kW | 4.00 hp for high overload.
Which control methods and communication interface does it have?
It supports V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law and sensorless vector control. Communication is USS/MODBUS RTU.
What connectors are provided?
The line side, motor end and DC link use plug-in screw terminals. The DC link conductor cross-section is 1.00 … 2.50 mm2 (AWG 18 … AWG 14).
Does this configuration include vector control with a sensor or encoder feedback?
No. Vector control, with sensor, encoderless torque control and torque control, with encoder are not included in this configuration.
