Product Overview
Technical Summary
| Order number | 6SL3210-1KE22-6UF1 |
|---|---|
| Product family | SINAMICS G120C |
| Input | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| Rated output power, LO | 11.00 kW | 15.00 hp |
| Rated output power, HO | 7.50 kW | 10.00 hp |
| Communication | PROFINET, EtherNet/IP |
| I/O | 6DI, 2DO, 1AI, 1AO, 1 fail-safe digital input |
| Protection | IP20 / UL open type |
| Frame size | FSC |
| Lifecycle | Active Product |
Key Features
Input: 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz. Output power: 11.00 kW | 15.00 hp LO or 7.50 kW | 10.00 hp HO.
Communication: PROFINET, EtherNet/IP.

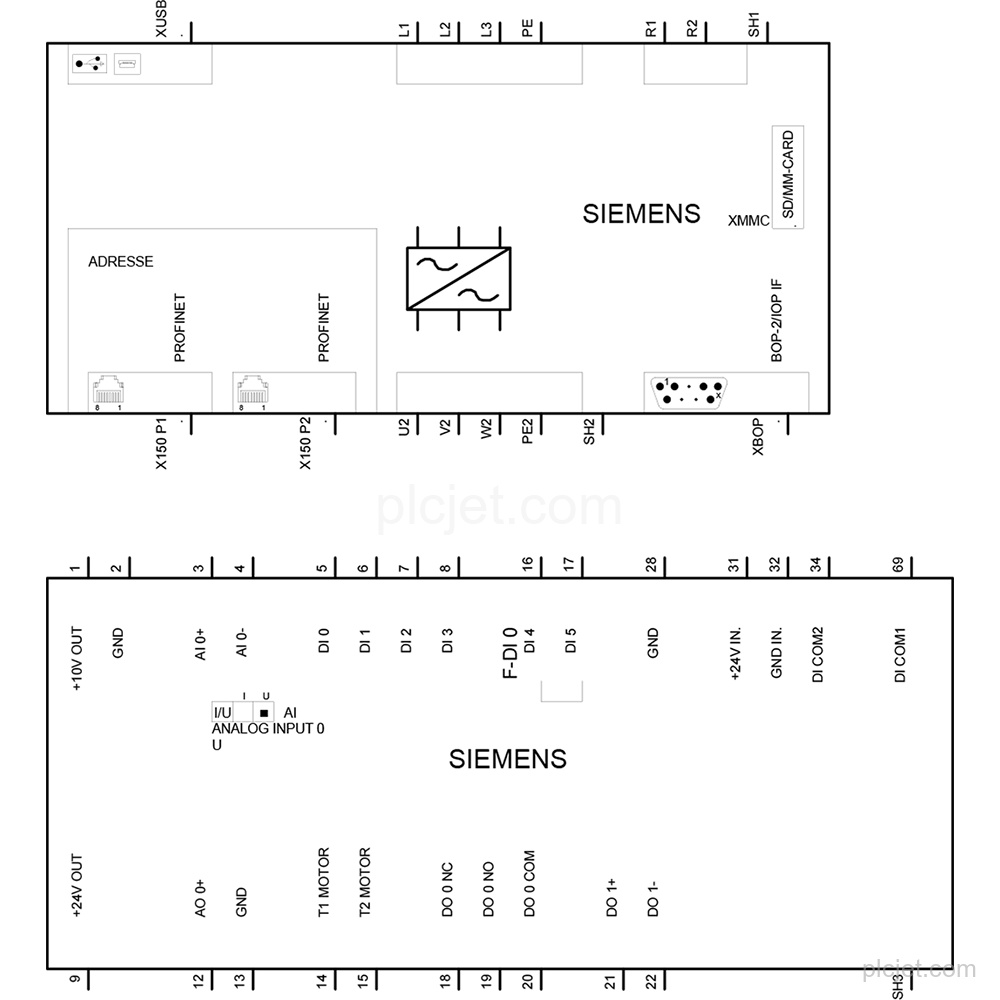

Unfiltered external 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1 fail-safe digital input.
Supports V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law, and sensorless vector control.
Frame size: FSC. Protection: IP20 / UL open type. Cooling: air cooling using an integrated fan.

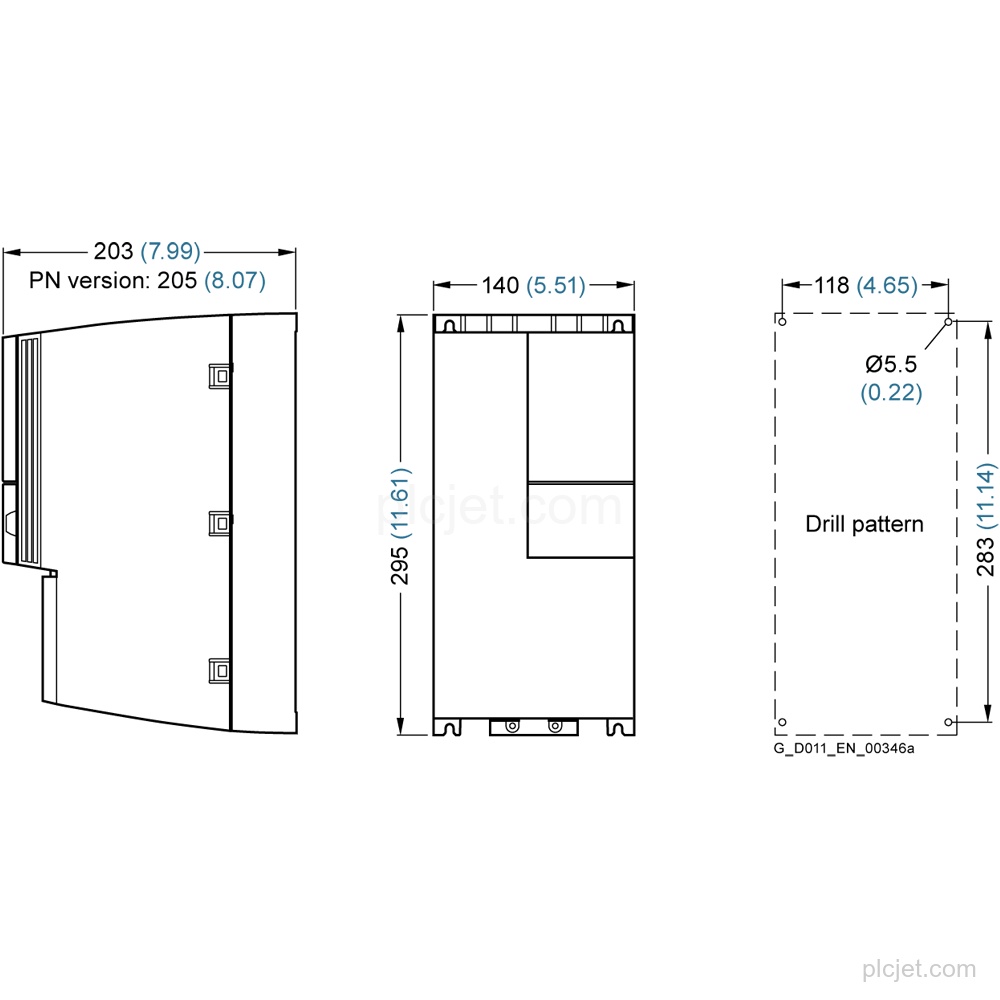

Width: 140 mm (5.51 in); depth: 205 mm (8.19 in); net weight: 4.40 kg (9.70 lb).
Frequently Asked Questions
What are the rated output powers for 6SL3210-1KE22-6UF1?
Rated output power is 11.00 kW | 15.00 hp for LO and 7.50 kW | 10.00 hp for HO.
Which communication interfaces does this line item have?
Communication: PROFINET, EtherNet/IP.
What I/O is included in the configuration?
The unfiltered external 24V I/O interface has 6DI, 2DO, 1AI, 1AO, and 1 fail-safe digital input.
What are the mounting dimensions and protection details?
Frame size is FSC; width is 140 mm (5.51 in), depth is 205 mm (8.19 in), and protection is IP20 / UL open type.
What project details should accompany a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM line items.
