Product Overview
Technical Summary
| Input | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
|---|---|
| Low-overload output power | 18.50 kW | 25.00 hp |
| High-overload output power | 15.00 kW | 20.00 hp |
| Low-overload output current | 37.00 A |
| High-overload output current | 31.00 A |
| Maximum output current | 62.00 A |
| Output frequency for vector control | 0 … 240 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| I/O | 6DI, 2DO, 1AI, 1AO, 1 fail-safe digital input |
| Communication | USS/MODBUS RTU |
| Frame size | FSC |
| Degree of protection | IP20 / UL open type |
Key Features
3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz.
Low overload: 18.50 kW at 150% 3s, 110% 57s, 100% 240s; high overload: 15.00 kW at 200% 3s, 150% 57s, 100% 240s.

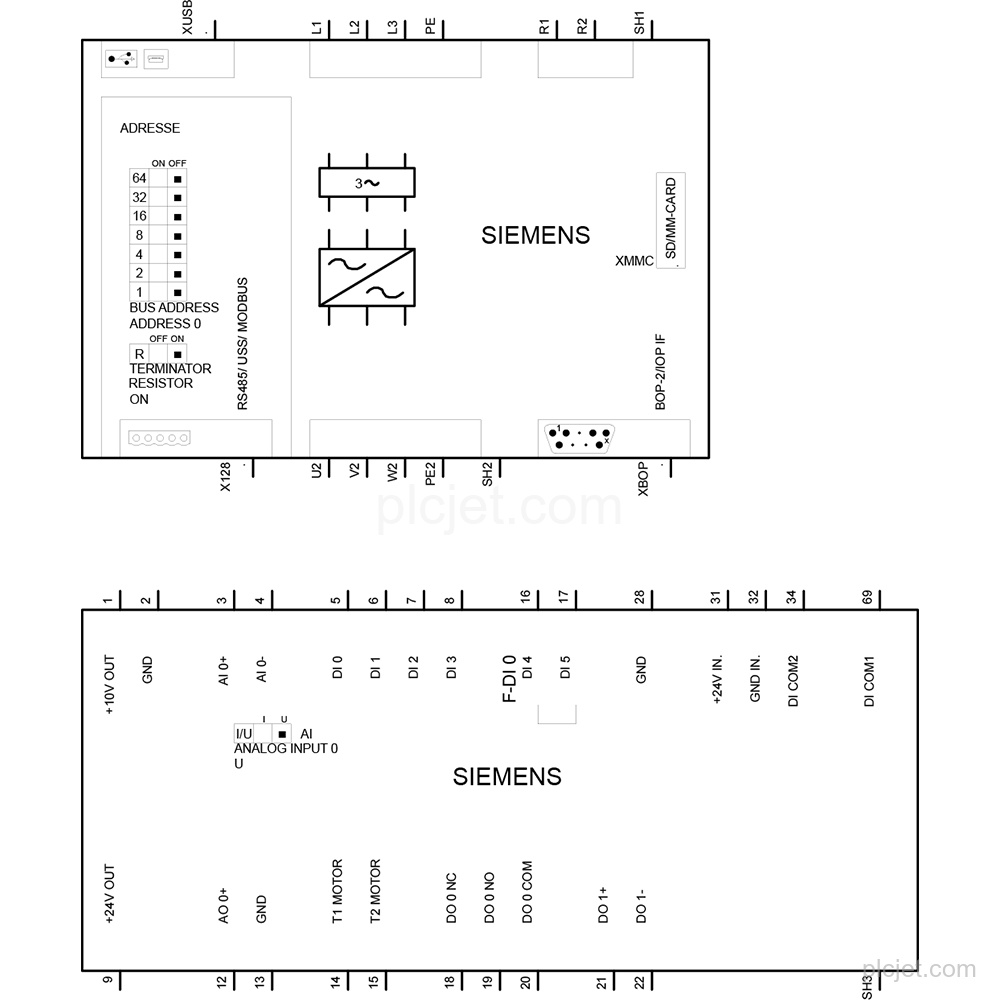

6 digital inputs, 2 digital outputs, 1 differential analog/digital input, 1 non-isolated analog output, 1 fail-safe digital input and integrated Safe Torque Off.
V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law and sensorless vector control; USS/MODBUS RTU.
Plug-in screw terminals; signal conductors 0.15 … 1.50 mm2 (AWG 24 … AWG 16), line-side and DC-link conductors 6.00 … 16.00 mm2 (AWG 10 … AWG 6); FSC, 140 mm width and 203 mm depth.
IP20 / UL open type with air cooling using an integrated fan and integrated Class A filter.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6SL3210-1KE23-8AB1, a SINAMICS G120C compact converter.
What are the low-overload and high-overload ratings?
Low overload is 18.50 kW at 150% 3s, 110% 57s, 100% 240s. High overload is 15.00 kW at 200% 3s, 150% 57s, 100% 240s.
Which control and communication functions are provided?
It has V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law and sensorless vector control. Communication is USS/MODBUS RTU.
Which connectors and mechanical details should be retained in the quotation?
It has plug-in screw terminals, FSC frame size, 140 mm width, 203 mm depth and IP20 / UL open type protection.
What project details should accompany a quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM line items.
