Product Overview
Technical Summary
| Rated power (LO) | 55.00 kW | 60.00 hp |
|---|---|
| Input voltage | 380 … 480 V +10 % -20% |
| Input frequency | 47 … 63 Hz |
| Input rated current (LO) | 96.00 A |
| Output rated current (LO) | 103.00 A |
| Maximum output current | 165.00 A |
| Communication | PROFINET, EtherNet/IP |
| Digital inputs | 6 |
| Analog input | 1 (Differential input) |
| Cooling | Air cooling using an integrated fan |
| Protection | IP20 / UL open type |
Key Features
55.0 kW rated power with 150% overload for 3 s.
380-480 V 3 AC input, +10/-20%, at 47-63 Hz.
6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output.
Integrated PROFINET fieldbus and Safe Torque Off.
IP20 / UL open type protection with FSE frame size.
275 mm width, 237 mm depth, and 28.50 kg net weight.
Frequently Asked Questions
What is the exact model and rated power?
The exact model is Siemens 6SL3210-1KE31-1AF1, with 55.00 kW rated power (LO) and 45.00 kW rated power (HO).
Which communication interface and safety function are integrated?
Integrated communication is PROFINET and EtherNet/IP; Safe Torque Off is integrated.

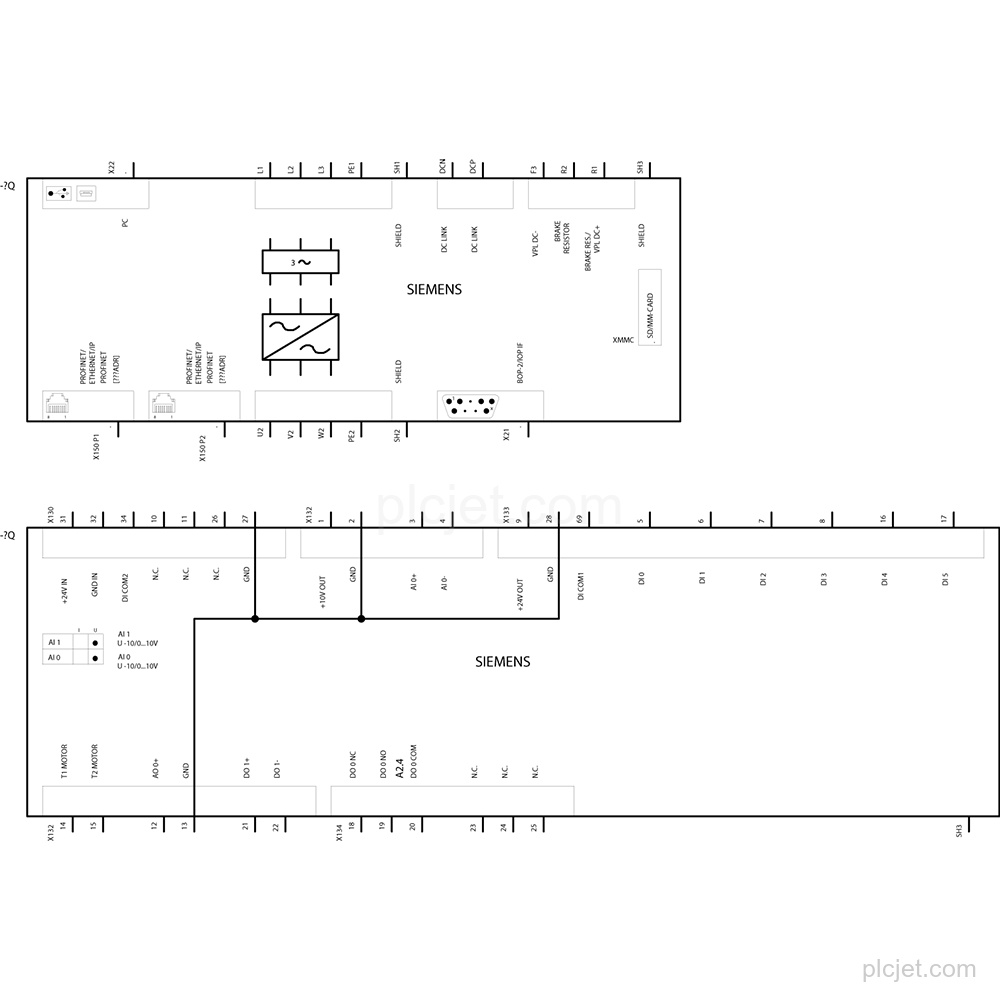

What are the input and output connections?
The unit has 6 digital inputs, 2 digital outputs, 1 differential analog input, and 1 non-isolated analog output.
What should I provide for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM line items for quotation review.
