Product Overview
Applications
The product supports parallel switching of two outputs for redundant control of a load.
The digital outputs can control a digital input.
Technical Summary
| Order number | 6ES7142-6BF00-0AB0 |
|---|---|
| Digital outputs | 8; in groups of 4 |
| Output current | 1.3 A maximum for signal "1" |
| Supply voltage | 24 V DC rated value |
| Load voltage range | 20.4 V to 28.8 V for 1L+ and 2L+ |
| PROFINET interfaces | 1 |
| Transmission rate | 100 Mbit/s maximum |

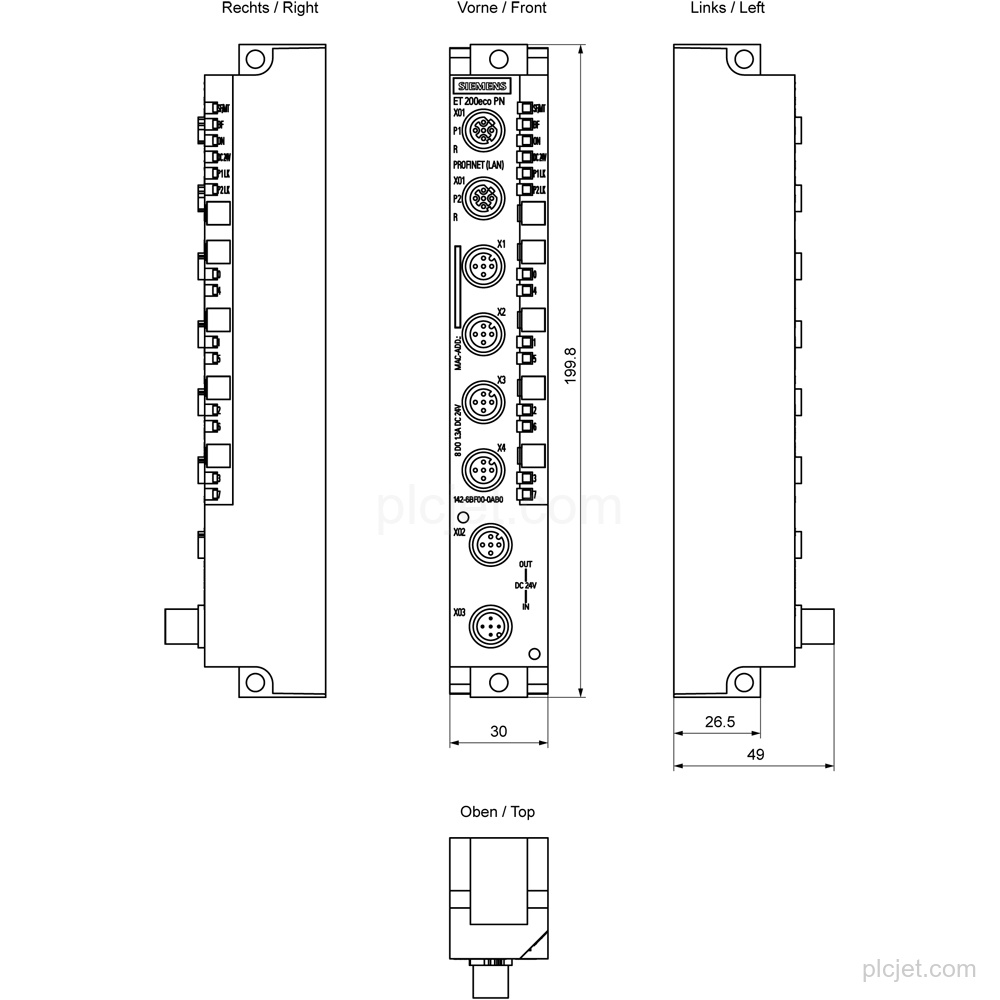

| Connections | 4xM12 |
| Protection | IP65/67 |
| VendorID | 002AH |
| DeviceID | 0306H |
| Lifecycle | Product cancellation |
Key Features

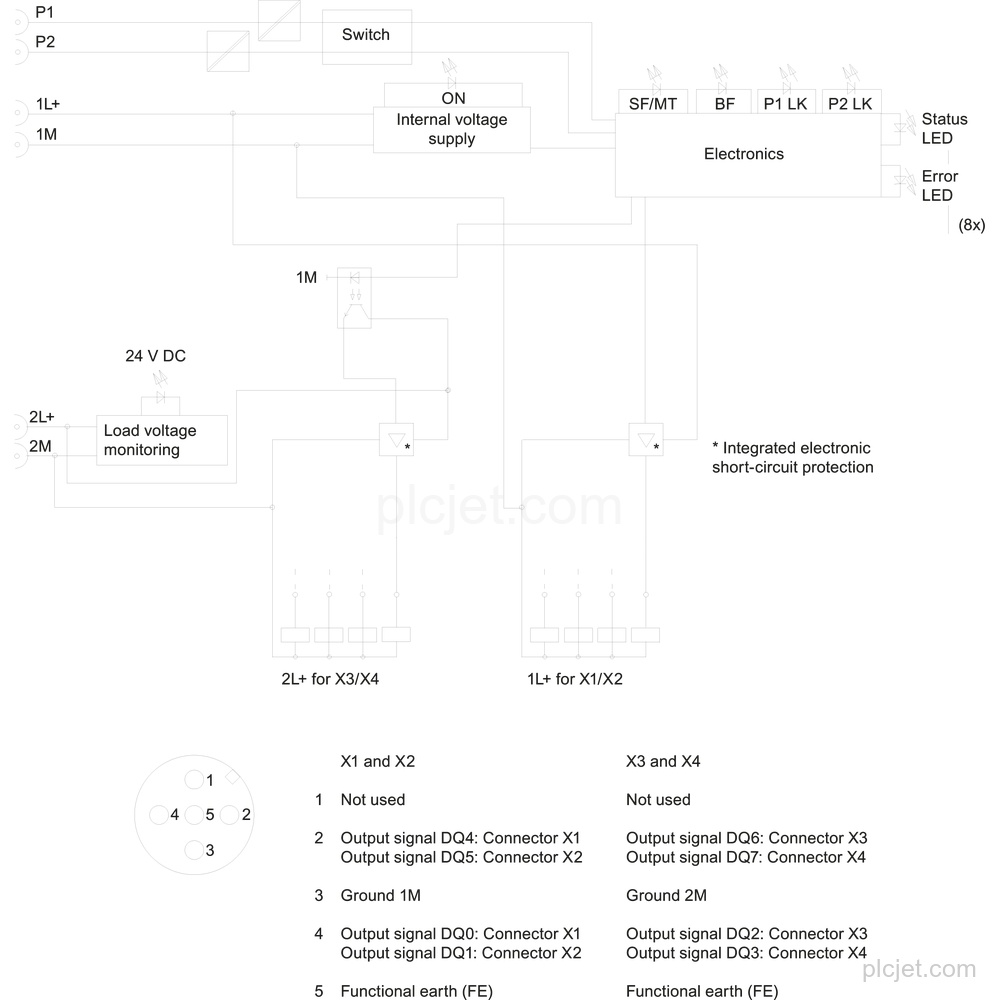

8 digital outputs, in groups of 4, with short-circuit protection and 1.3 A maximum rated output current for signal "1".
The supply voltage and load voltages 1L+ and 2L+ have a 24 V DC rated value. Load voltages permit 20.4 V to 28.8 V.
1 PROFINET interface with an M12 port, integrated switch, 100BASE-TX transmission procedure, and 100 Mbit/s maximum transmission rate.
4xM12 and IP65/67 degree of protection. The product has wire-break and short-circuit diagnostics, plus group error indication through a red/yellow "SF/MT" LED.
PROFINET CBA, PROFIsafe, and TCP/IP open IE communication are not supported. Parallel switching is not available for uprating.
Product cancellation.
Frequently Asked Questions
What is the exact configuration of Siemens 6ES7142-6BF00-0AB0?
It is a SIMATIC DP ET 200eco PN spare part with 8 digital outputs, 4xM12, duplicate assignment, and IP65/67 protection.
What supply and load voltage does this line item use?
The supply voltage and load voltages 1L+ and 2L+ have a 24 V DC rated value; the permitted load-voltage range is 20.4 V to 28.8 V.
Which communication interfaces are included?
It has 1 PROFINET interface with an M12 port, integrated switch, and 100 Mbit/s maximum transmission rate.
Which functions are excluded from the configuration?
PROFINET CBA, PROFIsafe, and TCP/IP open IE communication are not supported, and parallel switching is not available for uprating.
