Product Overview
Applications

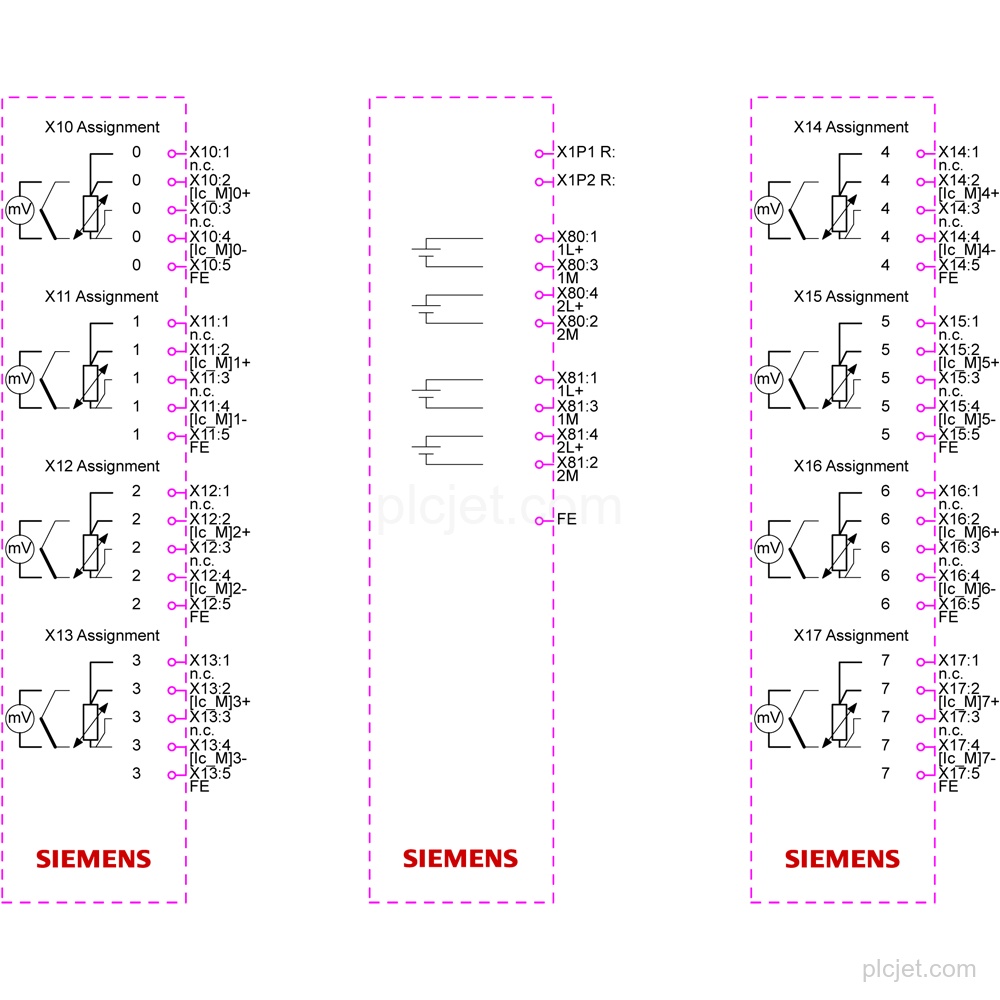

Supports measurement with thermocouples, resistance thermometers, and resistors across 8 analog input channels.
Supports voltage measurement in the -80 mV to +80 mV input range.
Provides channel diagnostics for input wire break, supply-voltage monitoring, and overflow/underflow.
Technical Summary

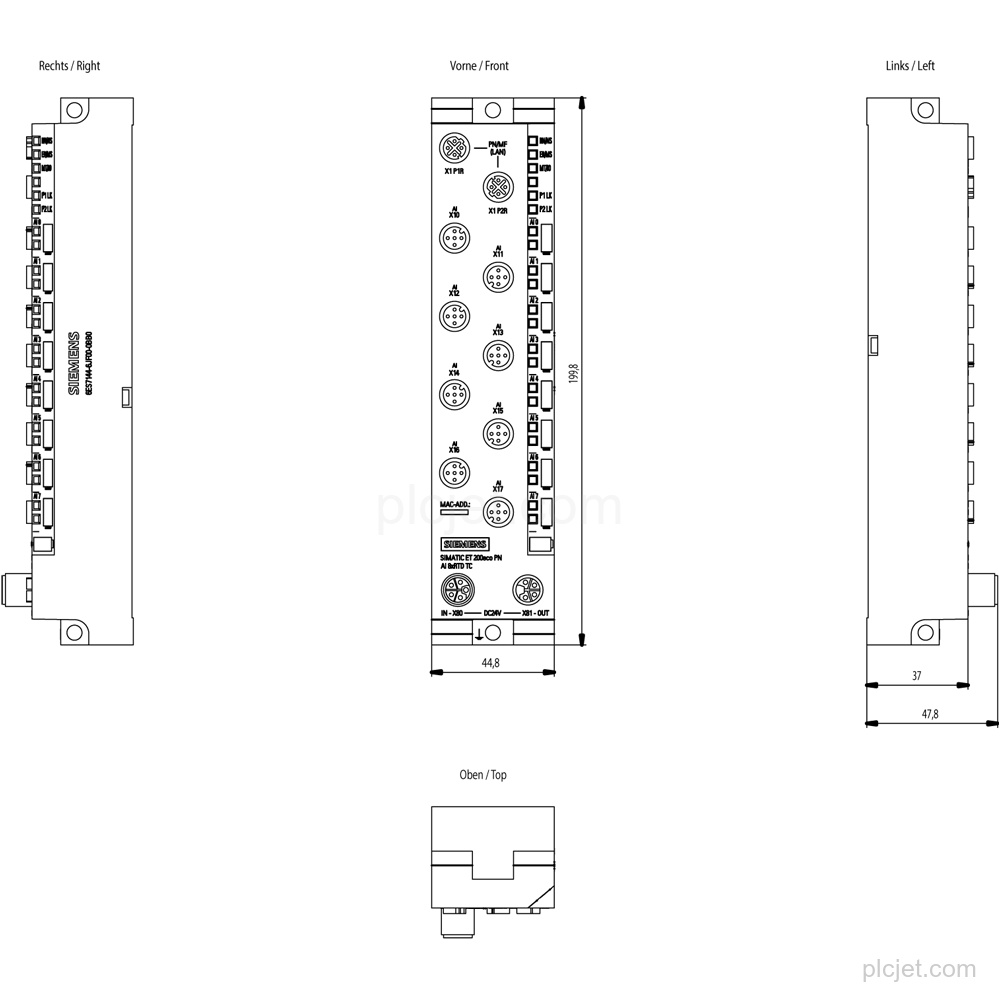

| Product | SIMATIC ET 200eco PN analog input module |
|---|---|
| Order number | 6ES7144-6JF00-0BB0 |
| Analog inputs | 8 |
| Supported measurements | Voltage, resistance, resistance thermometer, and thermocouple |
| Resolution | 16 bit including sign |
| Rated load voltage | 24 V DC |
| Permissible load-voltage range | 20.4 V to 28.8 V DC |
| PROFINET interfaces | 1 |
| M12 ports | 2x M12, 4-pin, D-coded |
| Supported protocols | PROFINET IO, EtherNet/IP, and Modbus TCP |
| Protection | IP65/67/69K |
| Firmware version | V5.1.x |
Key Features
Supports voltage, resistance, resistance thermometer, and thermocouple measurement on 8 channels.
Provides 16-bit resolution including sign for the -80 mV to +80 mV voltage range and supported thermocouple ranges.
Provides PROFINET IO, EtherNet/IP, and Modbus TCP communication, with 1 PROFINET interface and 2 M12, 4-pin, D-coded ports.
Supports input wire-break diagnostics, diagnostic information, supply-voltage monitoring, and configurable diagnostic alarms; wire-break detection is not available for ±80 mV.
Uses a 24 V DC rated load voltage with a permissible range of 20.4 V to 28.8 V.
Has IP65/67/69K degree of protection according to the supplied technical data.
Frequently Asked Questions
What is the exact Siemens model and input configuration?
The exact model is Siemens 6ES7144-6JF00-0BB0, a SIMATIC ET 200eco PN module with 8 analog inputs for voltage, resistance, resistance thermometer, and thermocouple measurement.
Which communication protocols and connectors are supported?
It supports PROFINET IO, EtherNet/IP, and Modbus TCP. The interface section provides 1 PROFINET interface and 2 M12, 4-pin, D-coded ports.
What supply voltage does the module use?
The rated load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
Does the module provide input wire-break diagnostics?
Yes. It supports wire-break diagnostics, but not for the ±80 mV input range.
What project details should be included with a quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM lines for this exact line item.
