Product Overview
Applications
Used for voltage distribution in 24 V DC circuits.
Technical Summary
| Product type | SIMATIC DP, ET 200ECO PN voltage distributor |
|---|---|
| Supply | 24 V DC |
| Connections | 1x 7/8", 4xM12 |
| Degree of protection | IP67 |
| Potential separation | Between the load voltages: Yes |
| Power loss, typ. | 3.5 W |
| Product lifecycle | Announcement of product phase-out |
Key Features
SIMATIC DP, ET 200ECO PN voltage distributor for 24 V DC.

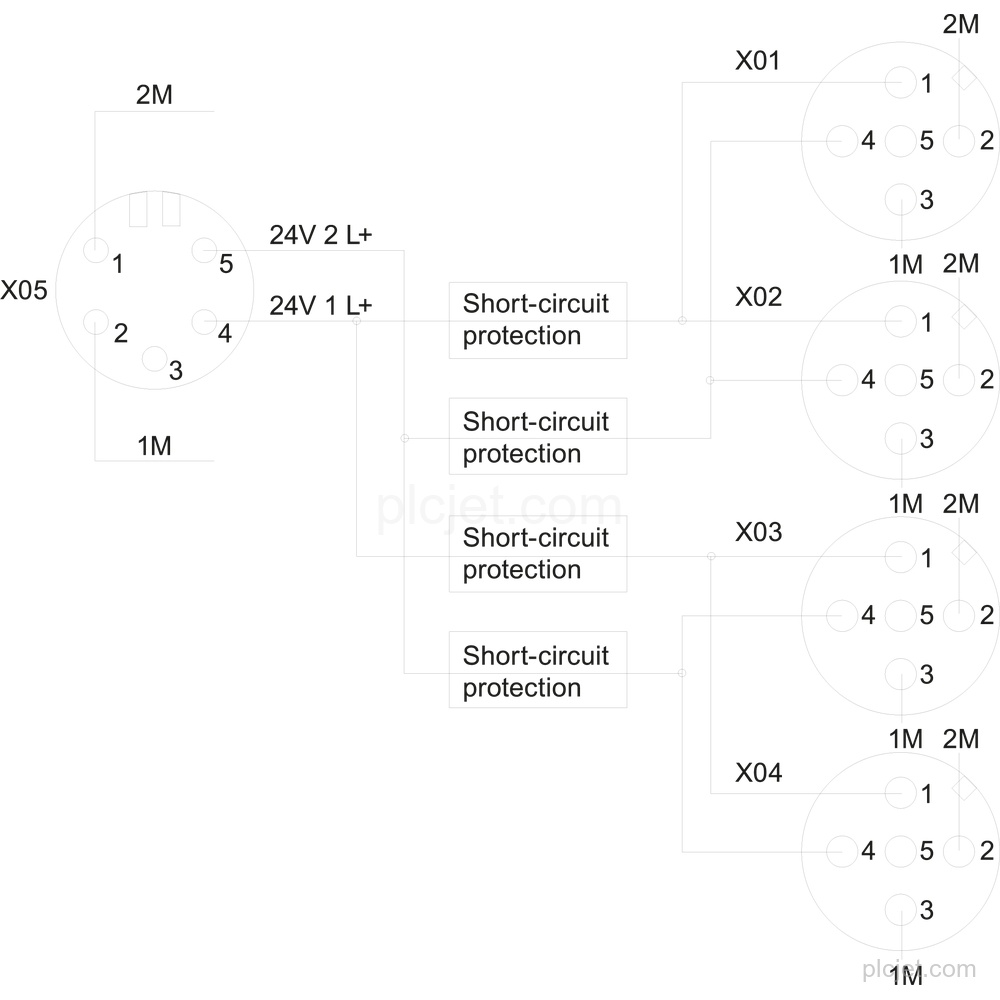

1x 7/8" and 4xM12 connections.
Degree of protection IP67.
Potential separation between the load voltages: Yes.

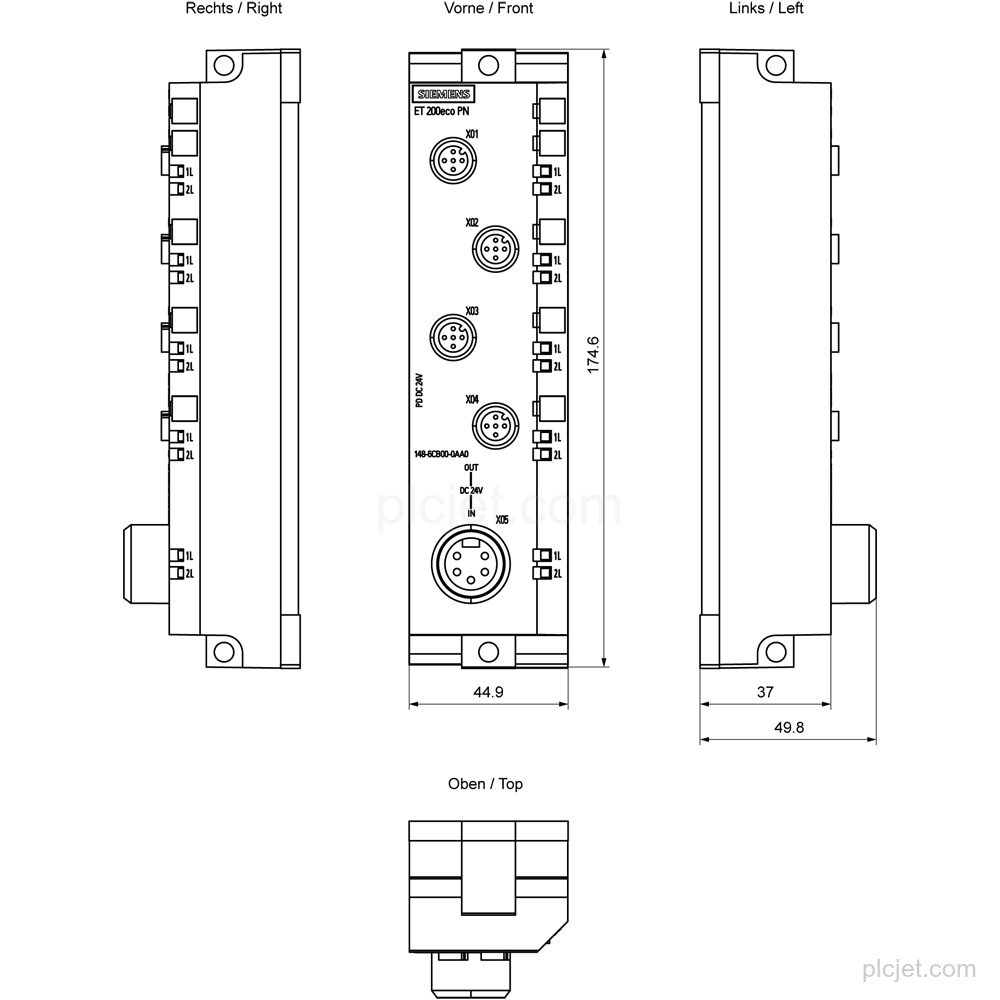

Dimensions: 45 mm width, 175 mm height and 49 mm depth. Weight, approx.: 590 g.
Announcement of product phase-out.
Frequently Asked Questions
What is Siemens 6ES7148-6CB00-0AA0?
It is a SIMATIC DP, ET 200ECO PN voltage distributor for 24 V DC.
Which connections does this voltage distributor have?
It has 1x 7/8" and 4xM12 connections.
What degree of protection does it provide?
The degree of protection is IP67.
What are its dimensions and approximate weight?
The dimensions are 45 mm width, 175 mm height and 49 mm depth; weight, approx. 590 g.
What project details should be provided for quotation?
Provide the requested quantity, destination, schedule context and any additional BOM lines.
