Product Overview
Technical Summary

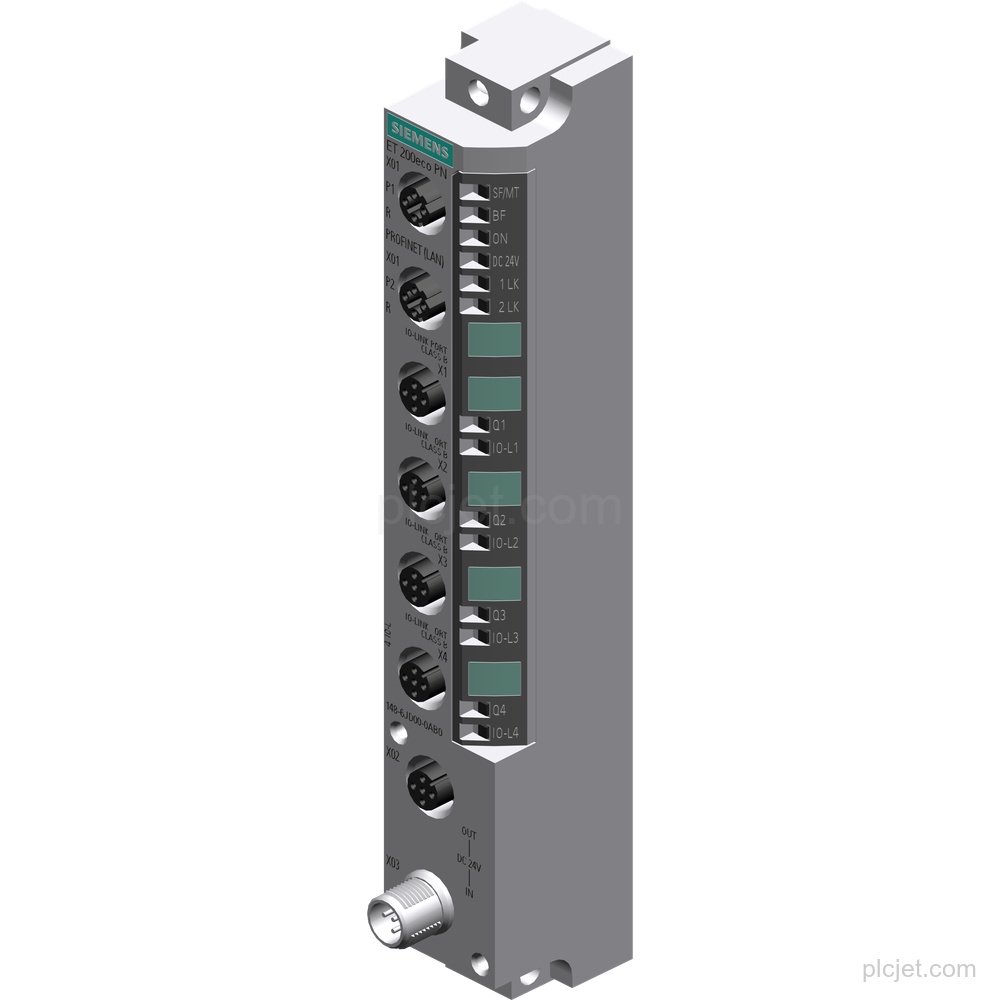

| Product identity | 6ES7148-6JD00-0AB0 Siemens SIMATIC DP ET 200eco PN IO-Link master spare part |
|---|---|
| IO-Link ports | 4; all 4 simultaneously controllable |
| Operating modes | IO-Link, DI, DQ; DQ max. 100 mA |
| Supply voltage | 24 V DC rated value; NEC Class 2 power supply required |
| IO-Link transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230 kBaud (COM3) |
| PROFINET interface | 1; 100BASE-TX; max. 100 Mbit/s |
| Connections | 4xM12; Port type A via 3-core cable; Port type B supported |
| Protection | IP65/67 |
| Lifecycle | Product cancellation |
Key Features
4 IO-Link ports, all 4 simultaneously controllable; IO-Link protocol 1.0 and 1.1 supported.
Supports IO-Link, DI and DQ; DQ output is max. 100 mA.
Rated supply voltage is 24 V DC; a NEC Class 2 power supply is required.
4xM12 connections, 1 PROFINET interface, and IP65/67 degree of protection.
32 byte input and output process data per port; module input is 128 bytes + 4 bytes PQI and module output is 128 byte.
Product cancellation; configuration without S7-PCT is possible with autostart/manual function.
Frequently Asked Questions
What is the exact configuration of 6ES7148-6JD00-0AB0?
It is a Siemens SIMATIC DP ET 200eco PN IO-Link master spare part with 4 IO-Link ports, 4IO-L connections, IP67 protection and 24 V DC rated supply.
How many IO-Link ports can be controlled simultaneously?
All 4 IO-Link ports can be controlled simultaneously. IO-Link protocol 1.0 and 1.1 are supported.
What connection and network interfaces are provided?
The device has 4xM12 connections and 1 PROFINET interface with 100BASE-TX, an integrated switch, and a maximum transmission rate of 100 Mbit/s.
