Product Overview
Applications
Used as a PROFINET IO device interface for SIMATIC ET 200MP I/O modules.

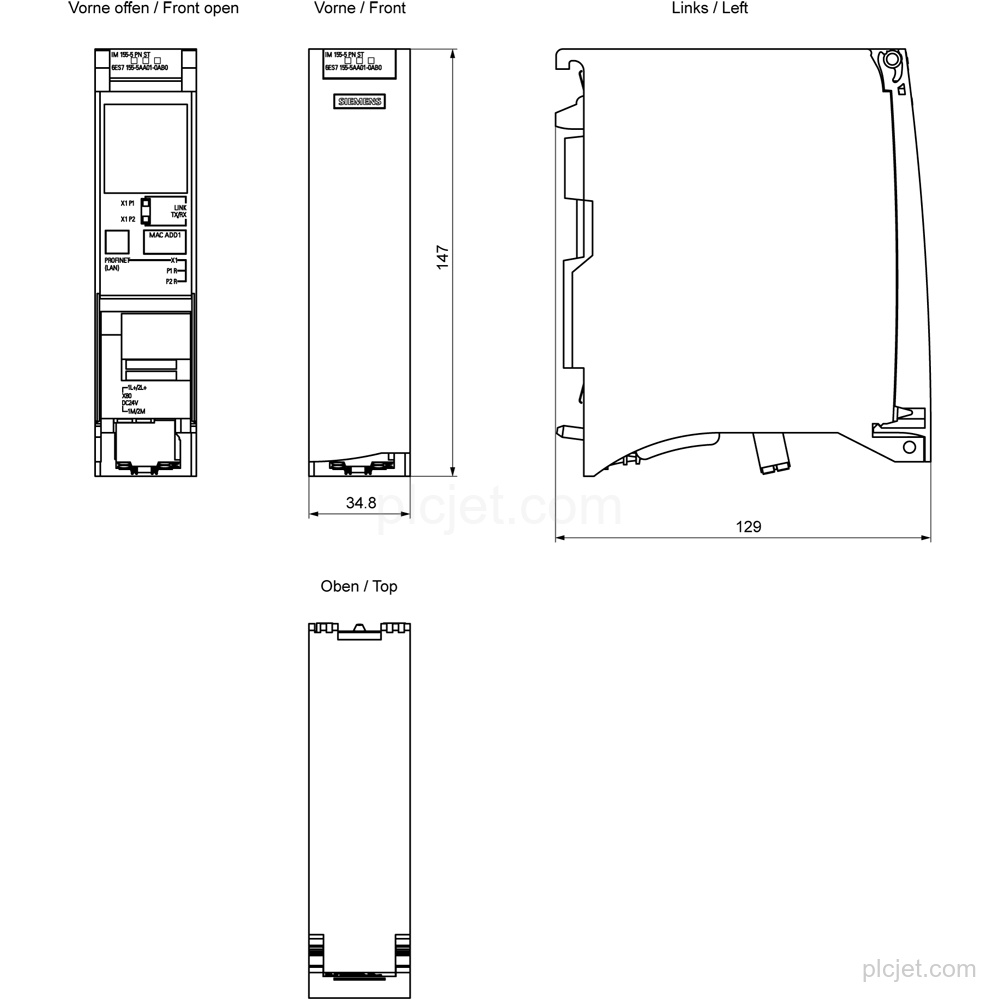

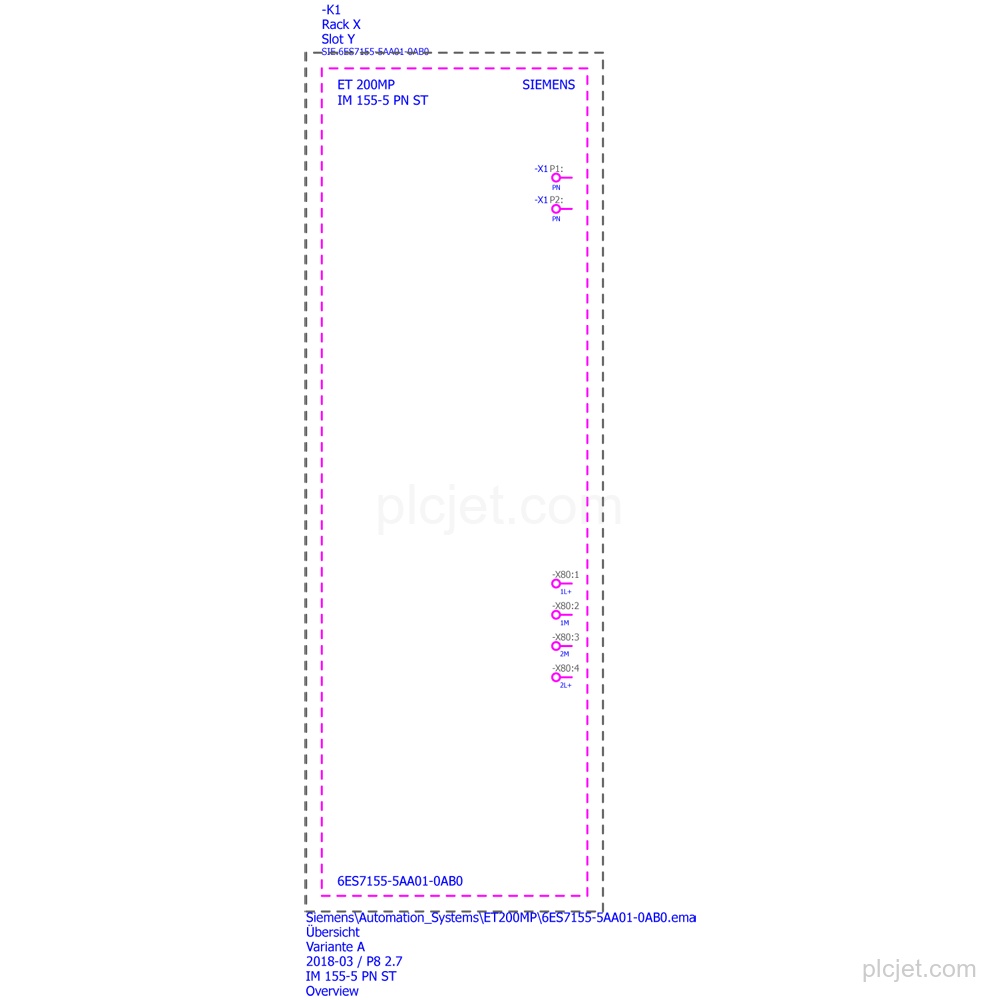

Technical Summary
| Product type | IM 155-5 PN ST |
|---|---|
| Module capacity | Up to 12 I/O modules without additional PS; up to 30 I/O modules with additional PS |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible range |
| PROFINET interfaces | 1 interface; 2 RJ45 ports with integrated switch |
| Transmission | 100BASE-TX |
| PROFINET functions | PROFINET IO Device, Open IE communication, MRP client, shared device |
| Shared device controllers | 2 maximum |
| IRT range | 250 μs to 4 ms in 125 μs frame steps |
| STEP 7 TIA Portal | Configurable/integrated from V15 |
| Firmware | V4.1.0; update possible |
Key Features
Supports up to 12 I/O modules without an additional power supply and up to 30 I/O modules with an additional power supply.
Has 1 PROFINET interface with 2 RJ45 ports, an integrated switch and 100BASE-TX transmission.
Supports PROFINET IO Device, Open IE communication, MRP client, shared device and prioritized startup.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V; reverse polarity and short-circuit protection are provided.
Supports IRT from 250 μs to 4 ms in 125 μs frame steps; shortest clock pulse and minimum bus cycle time are 250 μs.
STEP 7 TIA Portal configuration is supported from V15; firmware version is V4.1.0 and firmware update is possible.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7155-5AA01-0AB0?
It is the IM 155-5 PN ST PROFINET IO interface module for SIMATIC ET 200MP.
How many I/O modules can this interface module support?
It supports up to 12 I/O modules without an additional power supply and up to 30 I/O modules with an additional power supply.
What PROFINET connections are provided?
It has 1 PROFINET interface with 2 RJ45 ports, an integrated switch and 100BASE-TX transmission.
What supply voltage does it require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
What quantity, destination, schedule and additional BOM lines should be included in an inquiry?
Include the requested quantity, destination, schedule context and any additional BOM lines with the exact product number.
