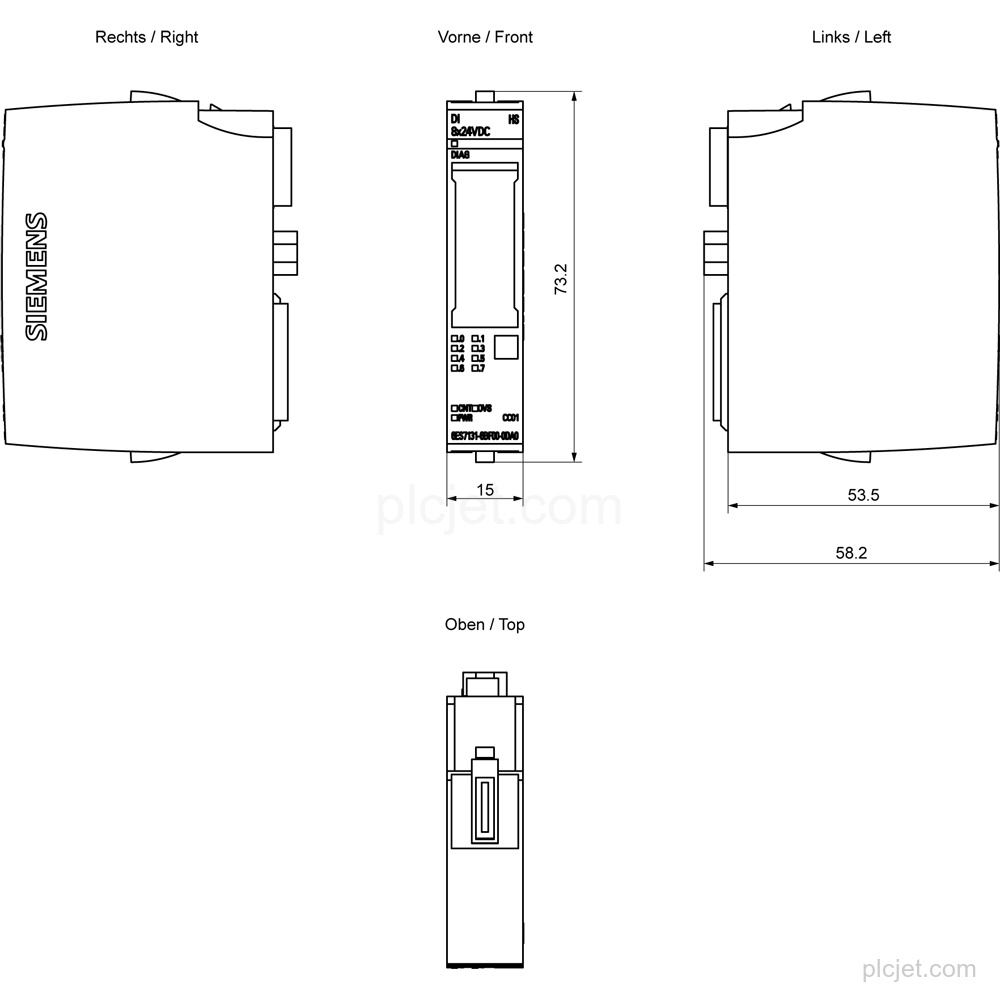

Product Overview
Technical Summary
| Product type | DI 8×24 V DC HS |
|---|---|
| Digital inputs | 8 |
| Operating modes | DI; Counter; Oversampling |
| Rated supply voltage | 24 V DC |
| Supply voltage range | 19.2 V to 28.8 V DC |
| Maximum counter frequency | 10 kHz |
| Oversampling resolution, min. | 7.8125 μs |
| Encoder supply output current, max. | 700 mA |
| Compatible BaseUnit | BU type A0 |
| Firmware version | V1.0.2 |
| Isochronous mode | 125 μs |
Key Features
8 digital inputs with 24 V DC rated input voltage and P-reading sourcing/sinking input.
Supports DI, Counter, and Oversampling modes; MSI mode is not supported.
Supports up to 4 counters, with maximum counting frequency of 10 kHz and 32-bit counting width.
Supports up to 8 digital inputs, 32 values per cycle, and minimum resolution of 7.8125 μs.
Provides 24 V encoder supply with module-wise electronic short-circuit protection and maximum output current of 700 mA.
Suitable for BU type A0 and color code CC01; mechanical coding element type is A.
Frequently Asked Questions
What is the exact product type of 6ES7131-6BF00-0DA0?
It is a SIMATIC ET 200SP digital input module with product type designation DI 8×24 V DC HS.
Which operating modes does this module support?
It supports DI, Counter, and Oversampling modes. MSI mode is not supported.
How many digital inputs and counters are available?
It has 8 digital inputs and supports up to 4 counters.
Which BaseUnit is suitable for this module?

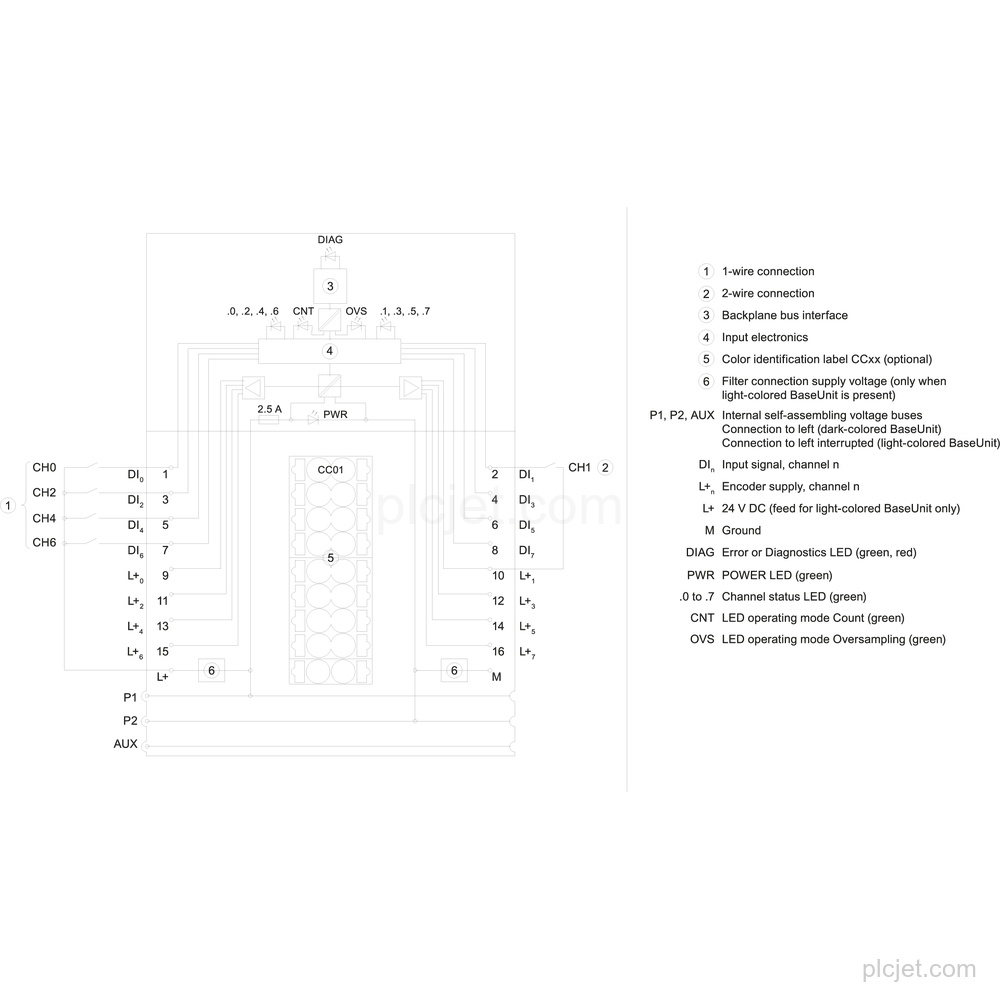

BU type A0 is suitable for the module. For a 3-wire connection, BU type A0 with AUX terminals or a potential distributor module is specified; for a 4-wire connection, BU type A0 plus a potential distributor module is specified.
