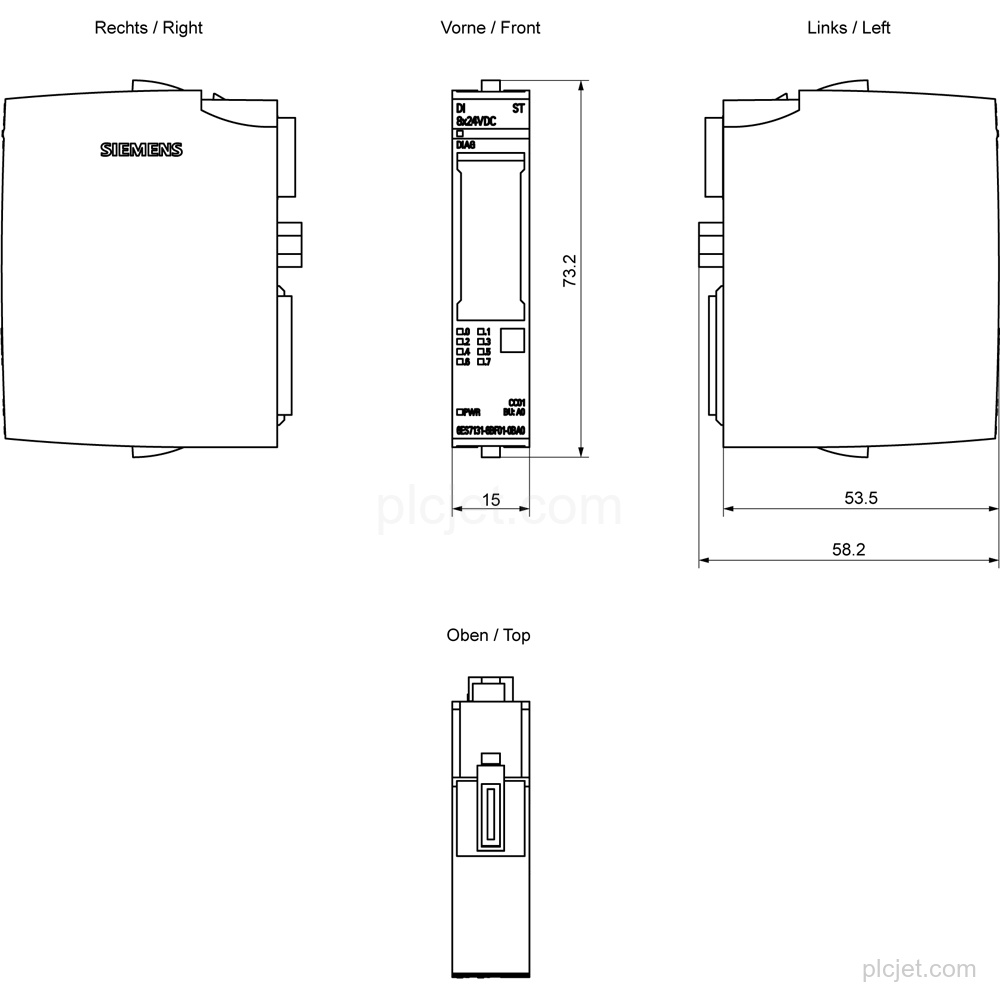

Product Overview
Technical Summary
| Product type | DI 8×24 VDC ST |
|---|---|
| Digital inputs | 8 |
| Input type | P-reading |
| Rated input voltage | 24 V DC |
| Supply voltage range | 19.2 V to 28.8 V DC |
| Input delay | 0.05 ms to 20 ms |
| Diagnostics | Short circuit, wire break, supply voltage, and encoder power supply |
| BaseUnit | BU type A0 |
| PROFINET | Suitable for operation on PROFINET R1 IMs |
| Firmware version | V0.0 |
Key Features
8 parameterizable digital inputs with P-reading and an IEC 61131 type 3 input characteristic.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
Parameterizable delay values are 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms, each with an additional delay of 30 to 500 μs depending on line length.
Module diagnostics include sensor-supply short circuit, wire break, supply-voltage monitoring, and encoder power-supply monitoring.

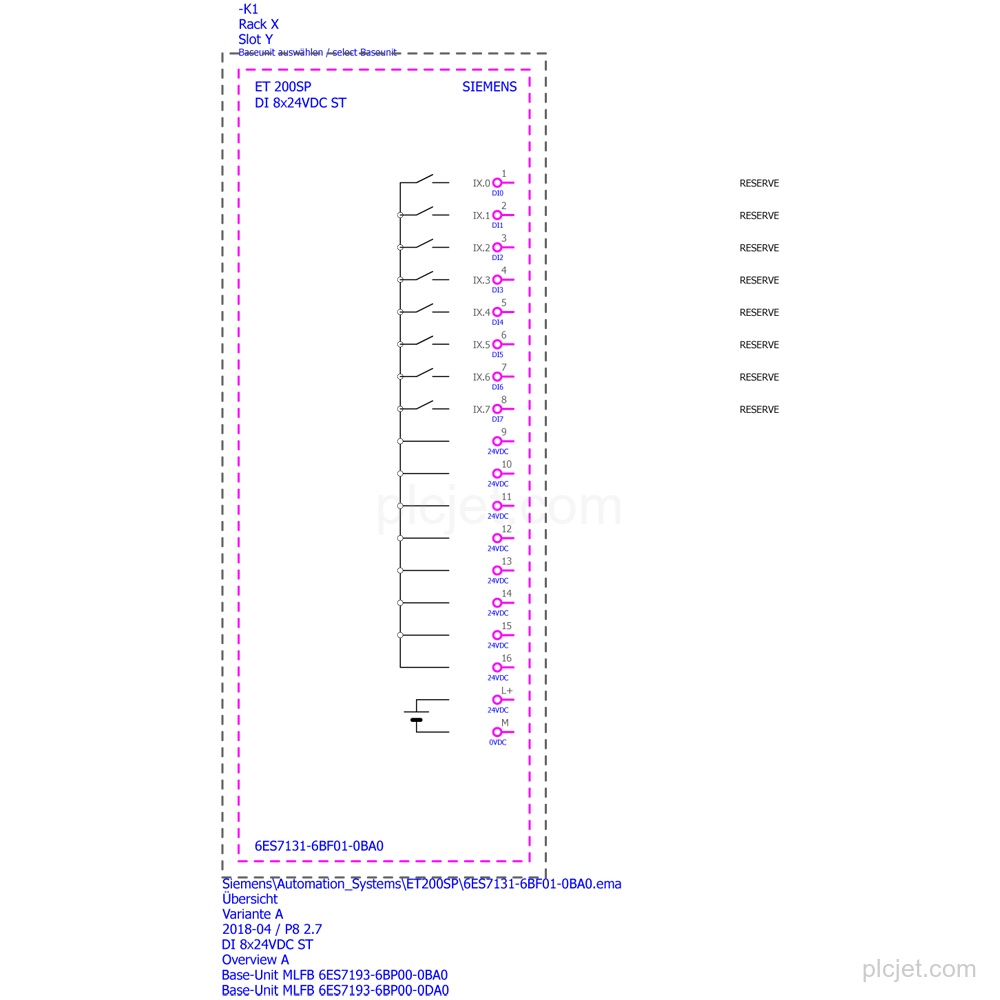

Fits BU type A0. 1-wire and 2-wire connections use BU type A0; 3-wire connection uses BU type A0 with AUX terminals or a potential distributor module.
Suitable for operation on PROFINET R1 IMs; configurable with STEP 7 TIA Portal from V14.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7131-6BF01-0BA0, SIMATIC ET 200SP DI 8×24 VDC ST.
How many digital inputs does the module have?
It has 8 parameterizable digital inputs with P-reading.
Which BaseUnit is used for this configuration?
It fits BU type A0. 3-wire connection requires BU type A0 with AUX terminals or a potential distributor module; 4-wire connection requires BU type A0 plus a potential distributor module.
What diagnostics are supported?
It supports diagnostics for sensor-supply short circuit, wire break, supply-voltage monitoring, and encoder power-supply monitoring.
What details should be included in a quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
