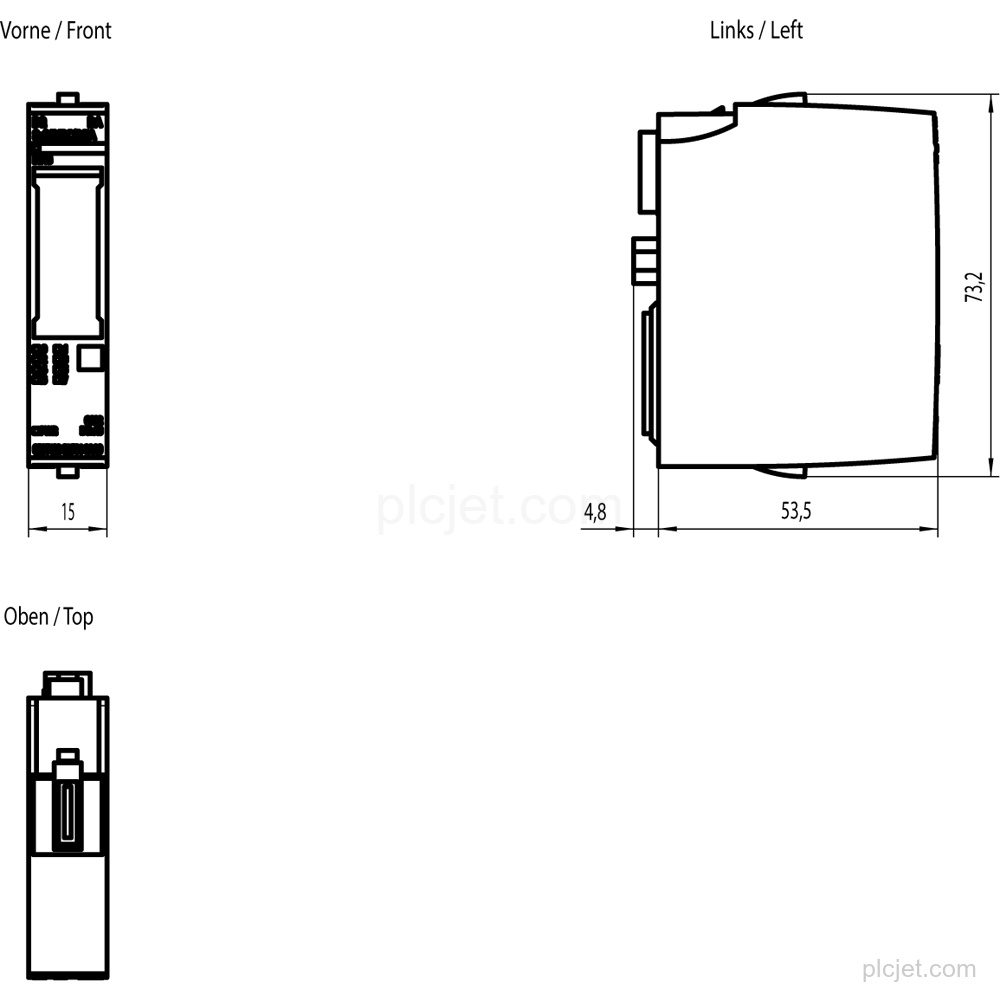

Product Overview
Applications
The module can control a digital input.
Two outputs can be switched in parallel for redundant control of a load; parallel switching for uprating is not supported.
Technical Summary
| Product type designation | DQ 8x24VDC/0.5A BA |
|---|---|
| Digital outputs | 8; source output (PNP, current-sourcing) |
| Output voltage | 24 V DC rated |
| Output current | 0.5 A per channel; 4 A per module maximum |
| Supply voltage | 24 V DC rated; permissible range 19.2 V to 28.8 V |
| BaseUnit | BU type A0 |
| Short-circuit protection | Yes; electronic, per channel |
| Switching frequency | 100 Hz maximum with resistive load; 2 Hz maximum with inductive load; 10 Hz maximum on lamp load |
| Installation current | 4 A maximum up to 60 °C for horizontal installation; 4 A maximum up to 50 °C for vertical installation |
| PROFINET engineering | GSDML V2.3 |
Key Features
Source outputs (PNP, current-sourcing); 8 digital outputs are parameterizable.
Rated output voltage: 24 V DC. Rated output current for signal "1": 0.5 A per channel.
Electronic short-circuit protection is provided per channel.
Fits BU type A0 and has color code CC02; packing unit: 1 piece.
Supply-voltage monitoring, diagnostic alarm, group error, substitute values, green PWR and channel-status LEDs, and green/red DIAG LED are supported.
STEP 7 TIA Portal is configurable/integrated from V14; PROFINET uses GSDML V2.3.
Frequently Asked Questions

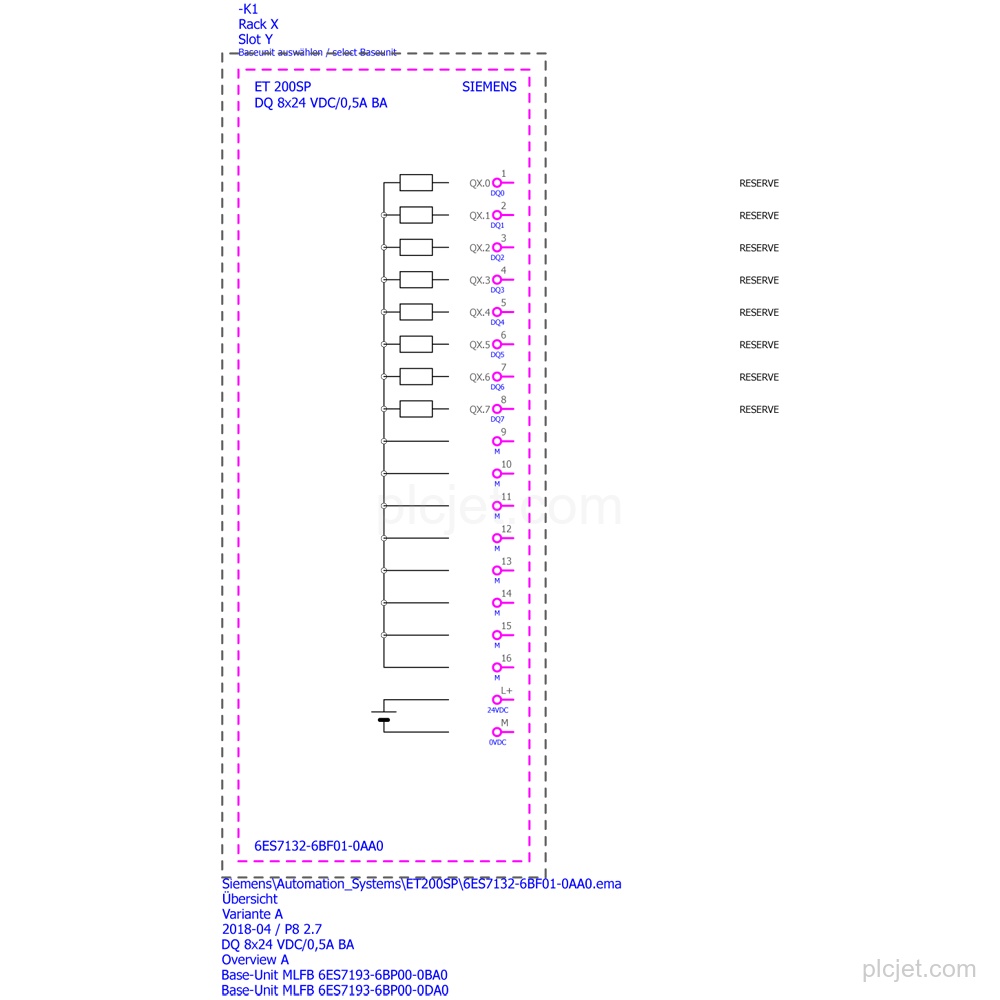

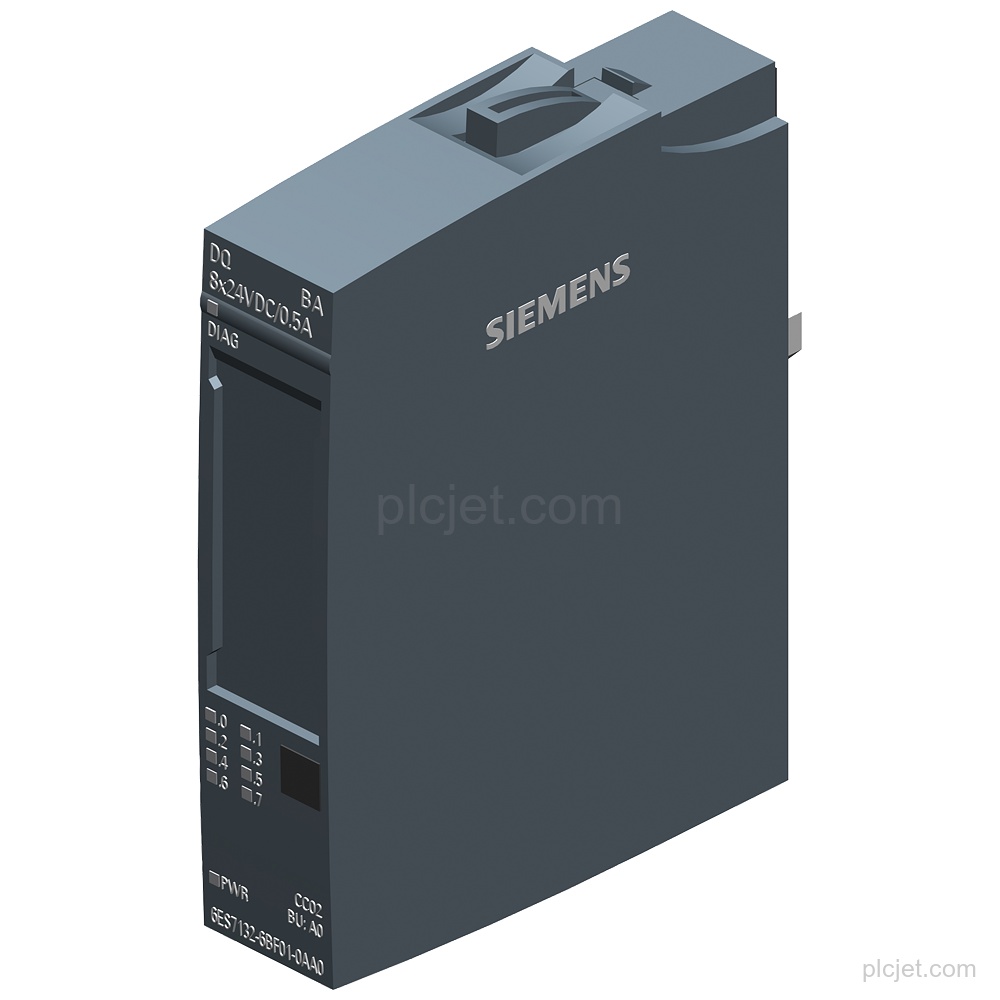

What is the exact product type of 6ES7132-6BF01-0AA0?
It is a SIMATIC ET 200SP DQ 8x24VDC/0.5A BA digital output module.
How many outputs and what output current does it have?
It has 8 source outputs and 0.5 A per channel for signal "1".
Which BaseUnit does this module use?
It fits BU type A0. A 3-wire connection uses BU type A0 with AUX terminals or a potential distributor module; a 4-wire connection uses BU type A0 plus a potential distributor module.
What diagnostics are supported?
It supports supply-voltage monitoring, diagnostic alarms, group error, substitute values, a green PWR LED, green channel-status LEDs, and a green/red DIAG LED.
