Product Overview
Applications
Controls digital inputs through the digital outputs.
Two outputs can be switched in parallel for redundant control of a load.
Monitors the supply voltage and provides diagnostic information.

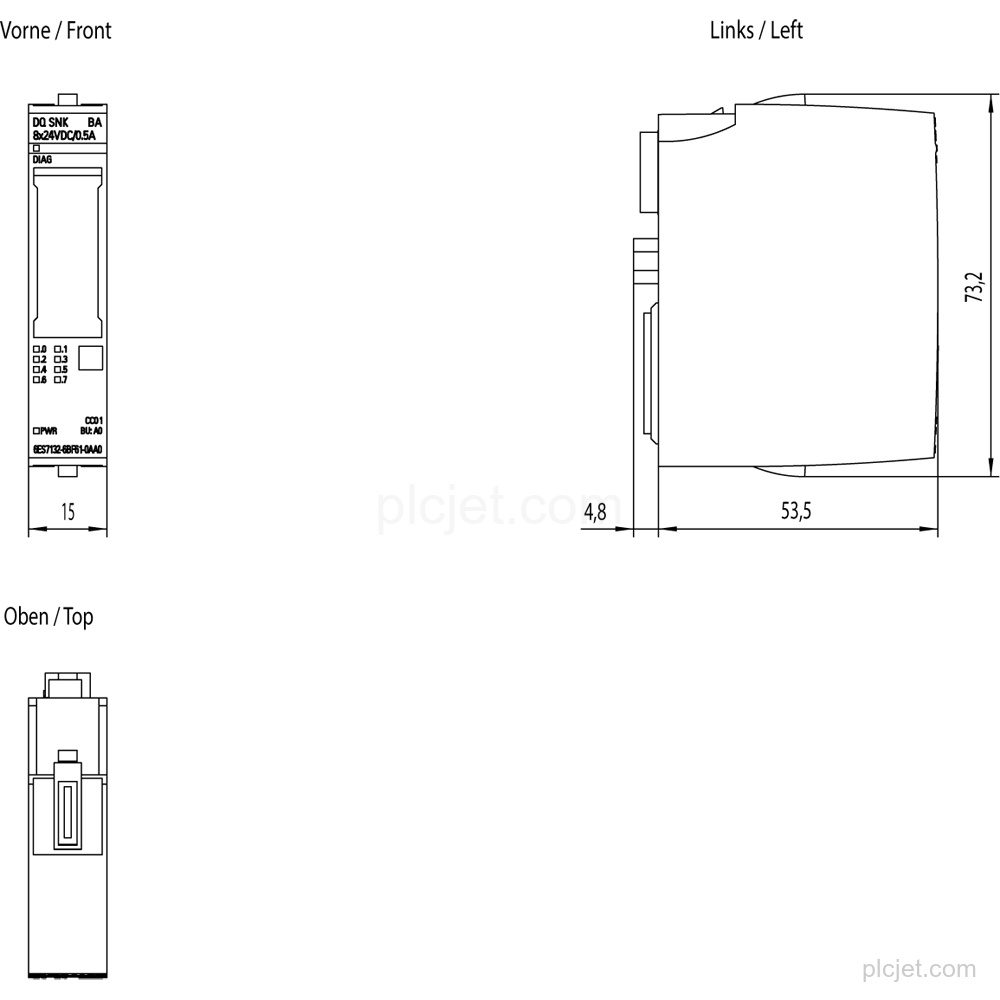

Technical Summary
| Product type designation | DQ 8x24VDC/0,5A SNK BA |
|---|---|
| Digital outputs | 8 sink outputs (NPN) |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Rated output current | 0.5 A per channel |
| Maximum total current | 4 A per module; up to 60 °C horizontal or 50 °C vertical installation |
| Short-circuit protection | Yes |
| BaseUnit | BU type A0 |
| PROFINET GSD version | GSDML V2.3 |
| Firmware version | V0.0 |
| Product lifecycle | Active Product |

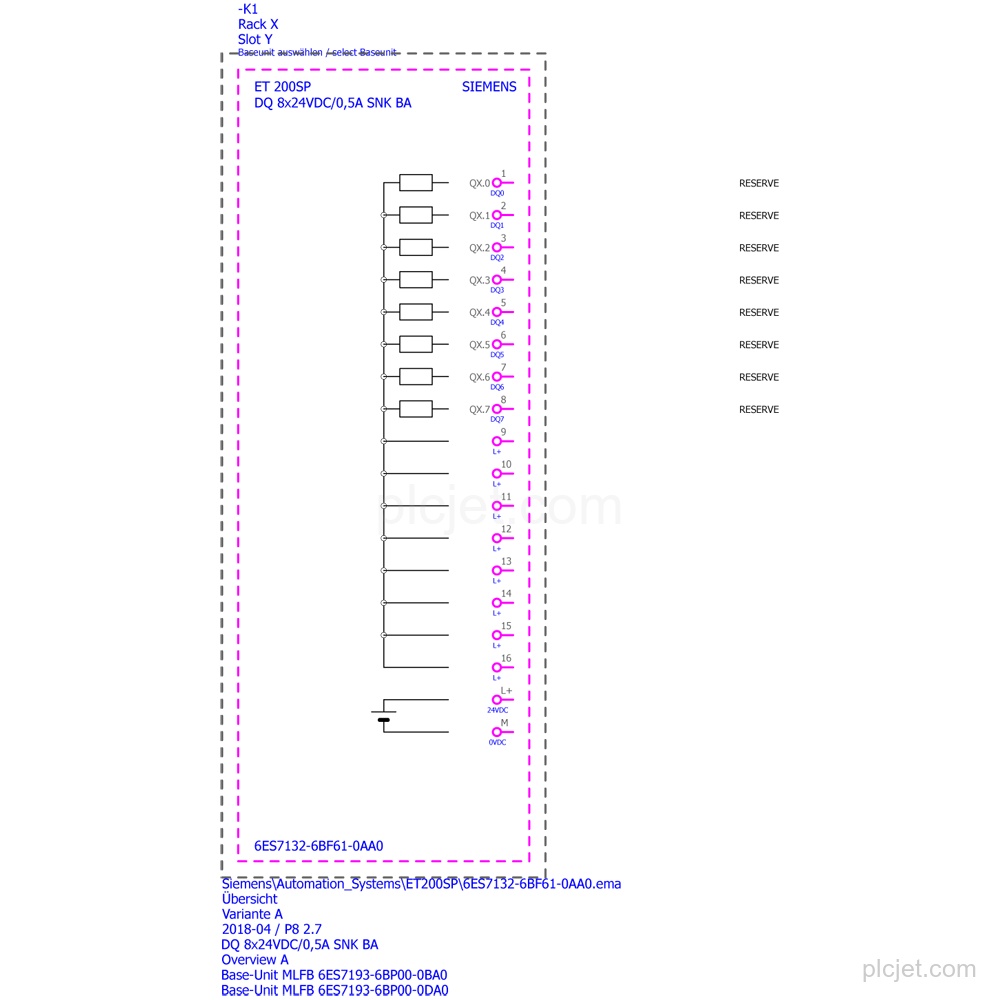

Key Features
8 parameterizable sink outputs (NPN) with current-sinking operation.
Rated output voltage: 24 V DC; rated output current for signal "1": 0.5 A per channel.
Short-circuit protection, supply-voltage monitoring, group error, diagnostic alarm, and green/red DIAG LED.
Total module current is max. 4 A; this applies up to 60 °C for horizontal installation and up to 50 °C for vertical installation.
PROFINET uses GSDML V2.3; STEP 7 TIA Portal is configurable/integrated from V14.
Fits BU type A0, has color code CC01, mechanical coding element type B, and substitute values can be connected.
Frequently Asked Questions
What is the exact product type of 6ES7132-6BF61-0AA0?

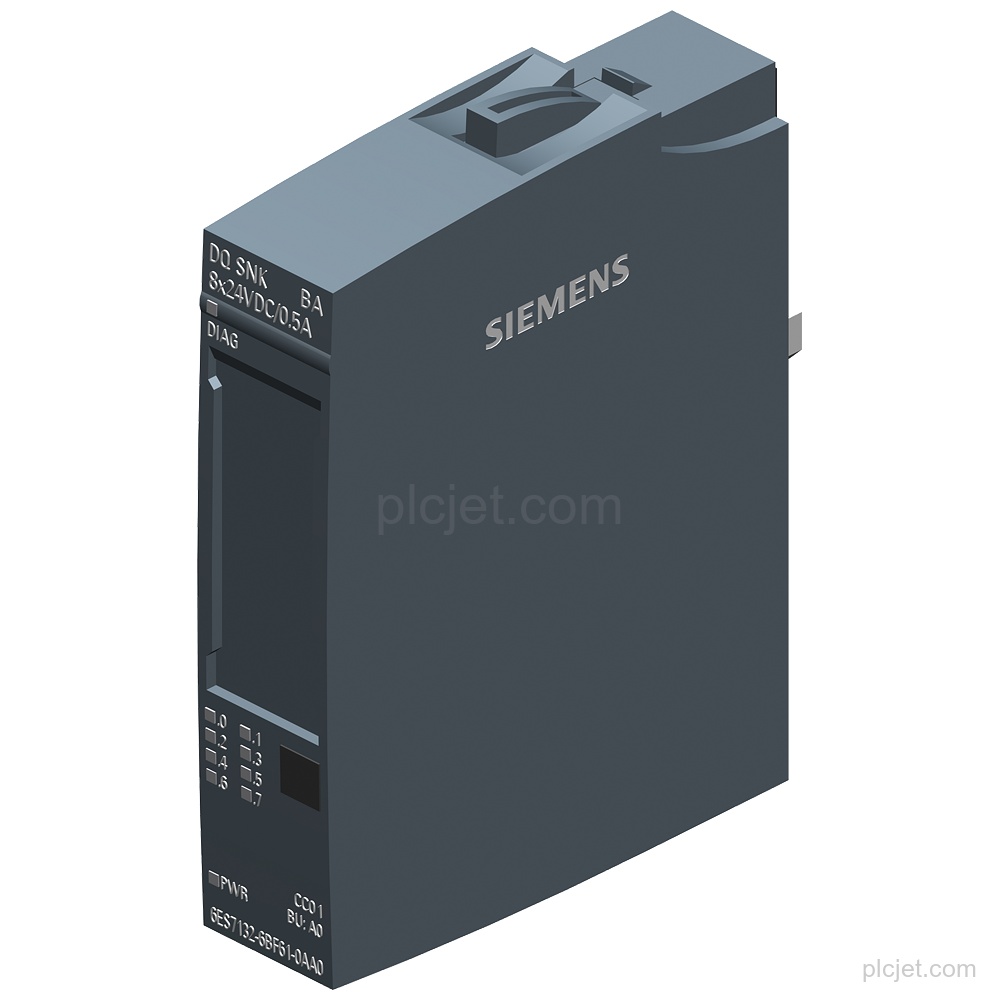

It is a SIMATIC ET 200SP digital output module with product type designation DQ 8x24VDC/0,5A SNK BA.
How many outputs does this module have?
It has 8 parameterizable sink outputs (NPN).
What output current is available per channel?
The rated output current for signal "1" is 0.5 A per channel, with a maximum total current of 4 A per module.
Which BaseUnit does the module fit?
It fits BU type A0.
