Product Overview
Applications
The module can control a digital input.
Technical Summary
| Product type | DQ 4×24 … 230 V AC/2 A ST |
|---|---|
| Digital outputs | 4 |
| Output type | Triac with zero point detection |
| Output voltage | 24 V AC to 230 V AC |
| Current per channel, max. | 2 A |
| Current per module, max. | 8 A |
| Horizontal installation | 8 A up to 40 °C; 6 A up to 50 °C; 4 A up to 60 °C |
| Vertical installation | 8 A up to 30 °C; 6 A up to 40 °C; 4 A up to 50 °C |
| Usable BaseUnits | BU type B1 |
| Firmware version | V1.0 |
| PROFINET GSDML | V2.3 |
Key Features

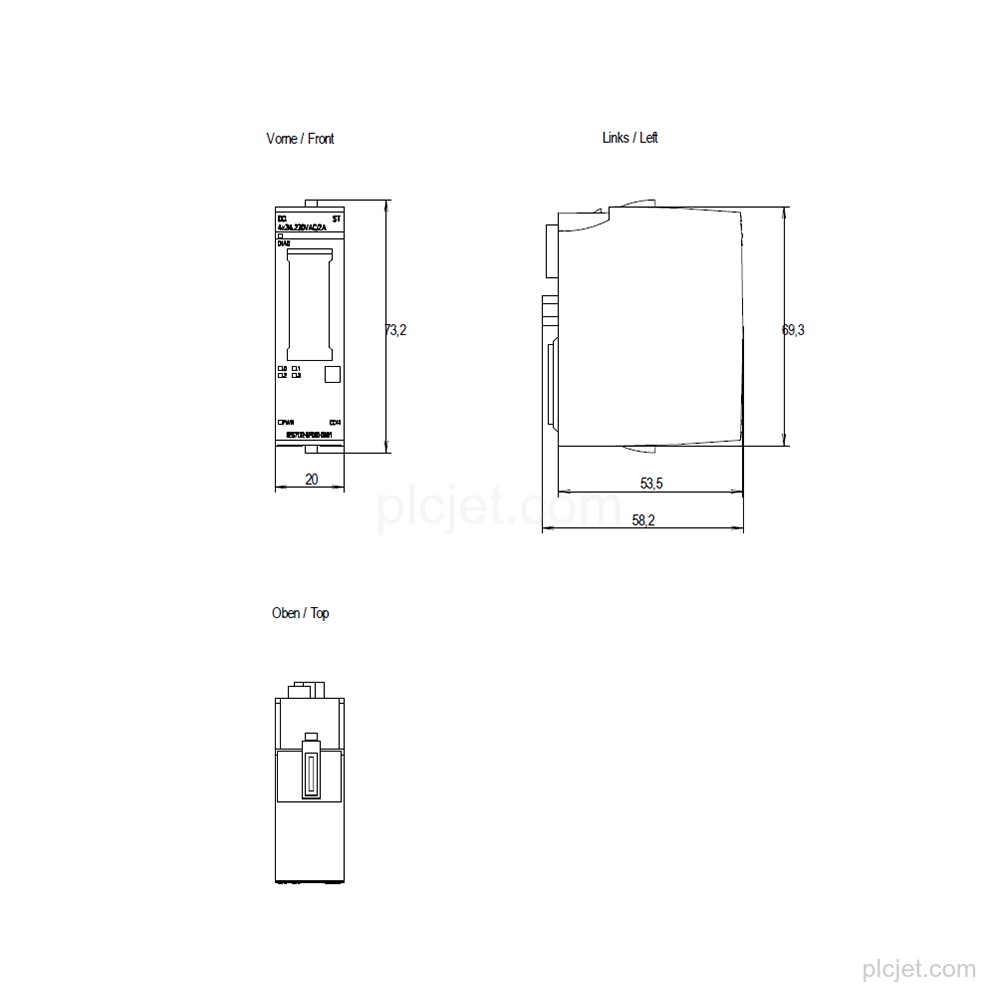

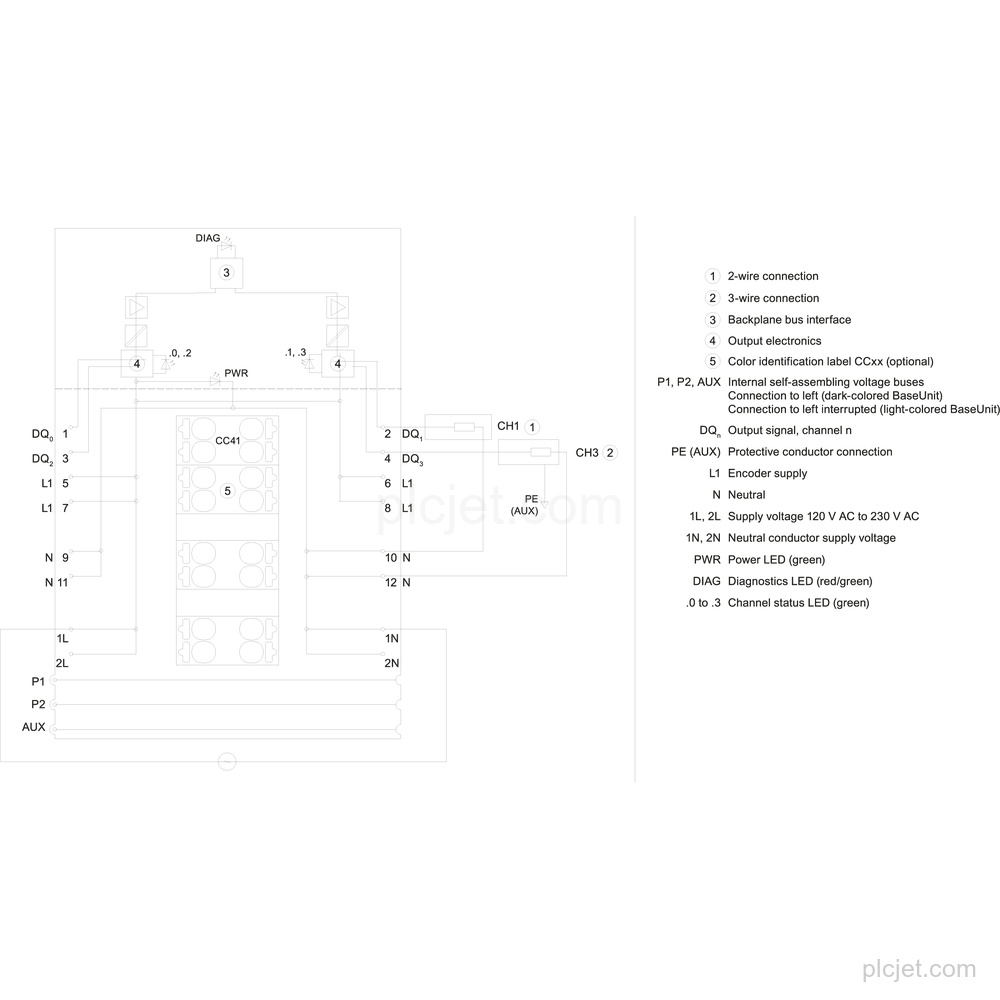

4 digital outputs use Triac technology with zero point detection and current-sourcing operation.
Each channel supports up to 2 A; total module current is up to 8 A.
Rated output voltage is 230 V AC, with a 24 V AC to 230 V AC range.
For horizontal installation, maximum total current is 8 A up to 40 °C, 6 A up to 50 °C, or 4 A up to 60 °C. For vertical installation, it is 8 A up to 30 °C, 6 A up to 40 °C, or 4 A up to 50 °C.
The module is suitable for BU type B1 and has color code CC41.
The outputs have no short-circuit protection; with BU type B1, a miniature quick-response fuse with 10 A tripping current must be provided.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7132-6FD00-0BB1?
It is a SIMATIC ET 200SP digital output module, type DQ 4×24 … 230 V AC/2 A ST.
How many outputs does the module have?
It has 4 Triac digital outputs with zero point detection.
What current can the outputs switch?
The maximum current is 2 A per channel and 8 A per module, subject to the stated installation and temperature limits.
Which BaseUnit is suitable for this module?
It is suitable for BU type B1.
What configuration details should be included in a quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
