Product Overview
Technical Summary
| Product type | DQ 4×24 … 230 V AC/2 A HF |
|---|---|
| Output type | Triac; 4 digital outputs |
| Rated output voltage | 230 V; 24V AC to 230V AC |
| Current per channel | 2 A; max. 4 A, see additional description in manual |
| Current per module | 8 A |
| Supply voltage | 230 V; 47 … 63 Hz, max. rate of change of frequency 1 mHz/s |
| BaseUnit | BU type U0 |
| Protection | No short-circuit protection; external fusing necessary |
| Diagnostic functions | Channel-by-channel open-circuit detection and wire-break diagnosis; group error: Yes |
| Engineering | STEP 7 TIA Portal from V14; STEP 7 V5.5 or higher; PROFINET GSDML V2.3; PROFIBUS GSD as of Revision 5 |
Key Features
4 parameterizable Triac outputs with current-sourcing operation.
Rated output current is 2 A per channel; current per module is max. 8 A.
Supports DQ, DQ with energy-saving function, phase control, half-wave and full-wave operation.
Provides channel-by-channel open-circuit detection and wire-break diagnosis, plus group error and LED indications.
Uses BU type U0 for 1-wire and 2-wire connections; 3-wire connection requires BU type U0 + Potential distributor module. Mechanical coding element: type C.
Frequently Asked Questions
What exact configuration does Siemens 6ES7132-6FD00-0CU0 use?

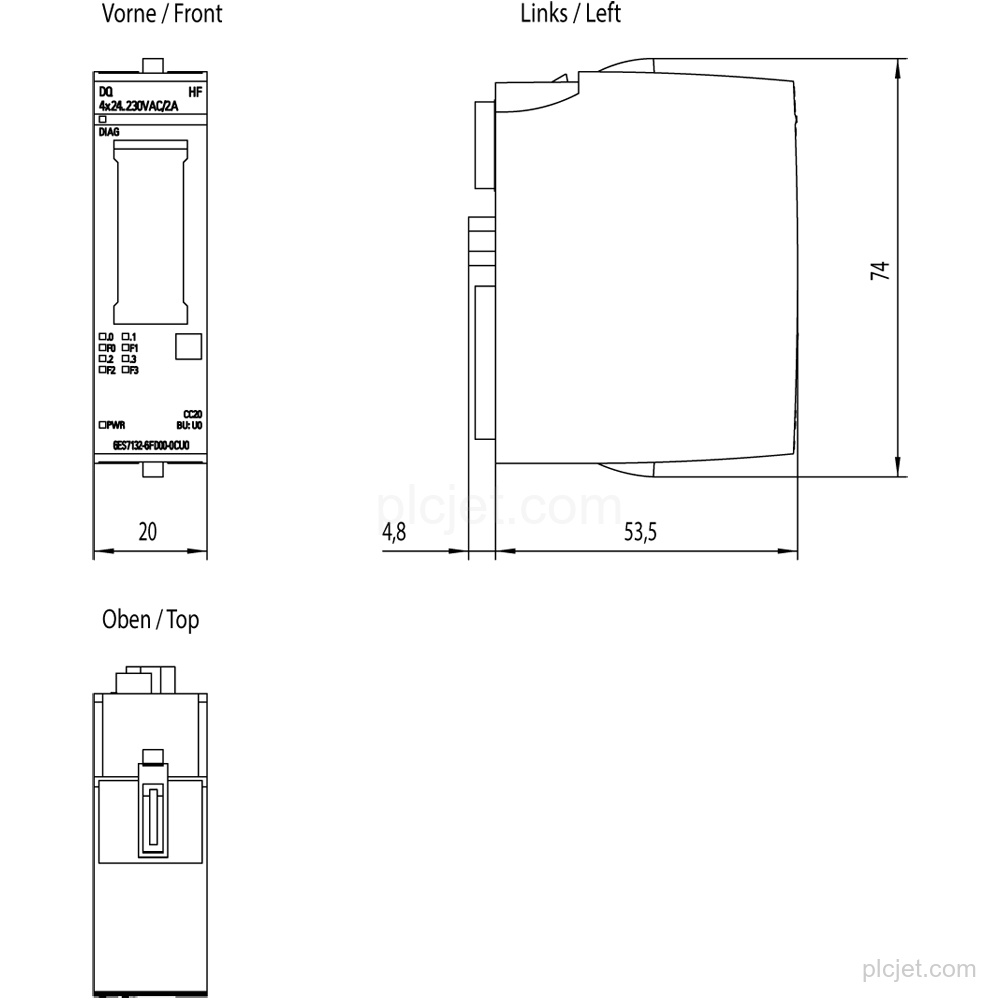

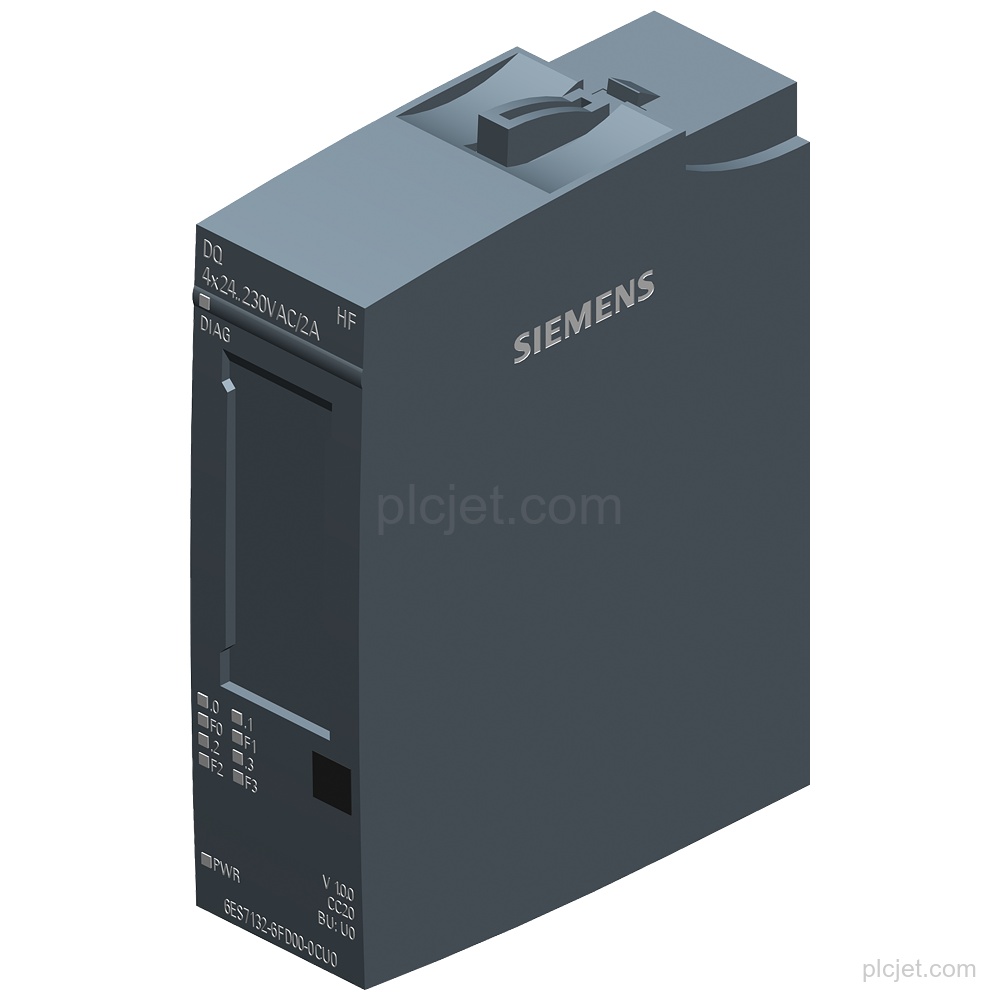

It is a DQ 4×24 … 230 V AC/2 A HF digital output module with 4 Triac outputs, BU type U0 and color code CC20.
What output current is available?
The rated current is 2 A per channel, with a maximum of 8 A per module. For resistive load, the maximum is 2 A; max. 4 A requires the additional description in the manual.
Does the module include short-circuit protection?
It has no short-circuit protection; external fusing is necessary.

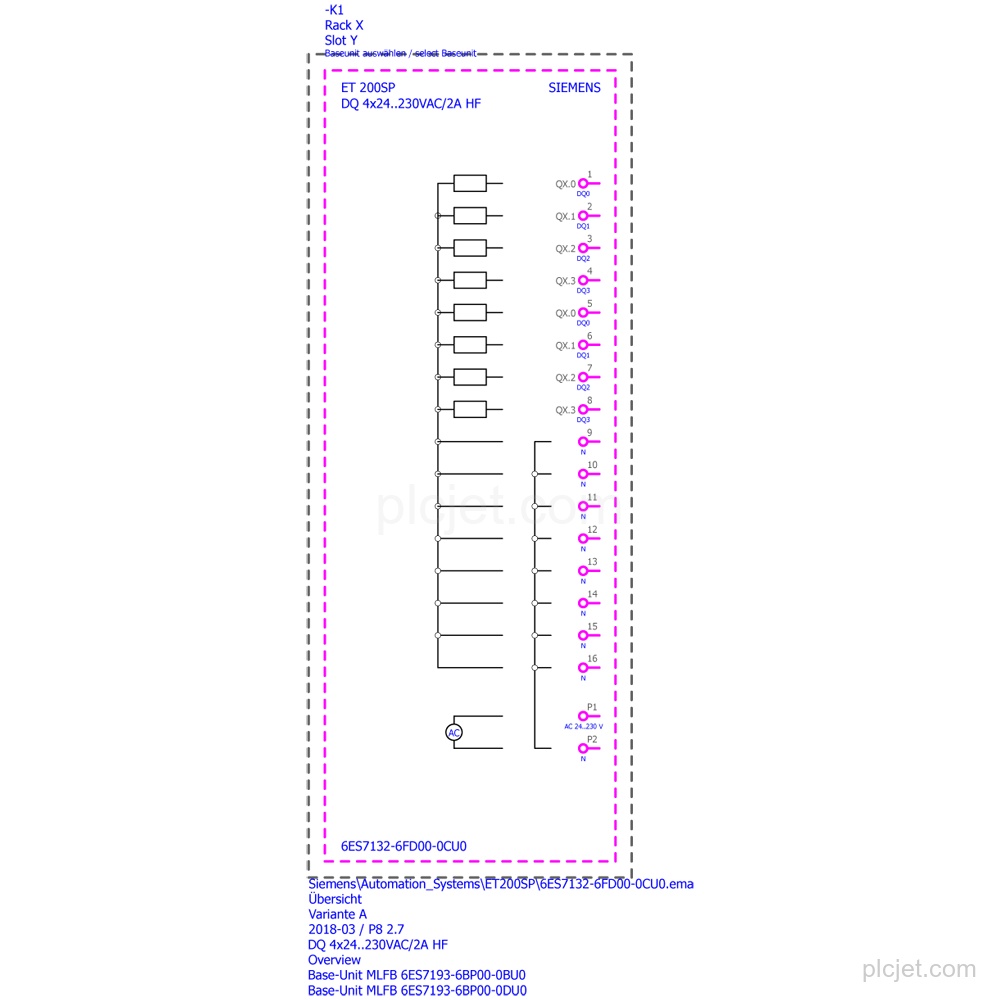

Which BaseUnit is used for the connection variants?
BU type U0 is used for 1-wire and 2-wire connections. A 3-wire connection requires BU type U0 + Potential distributor module.
