Product Overview
Technical Summary
| Product type | RQ CO 4x24VDC/2A ST |
|---|---|
| Output configuration | 4 relay outputs with 4 changeover contacts |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Maximum current per channel | 2 A |
| Maximum current per module | 8 A |
| Usable BaseUnit | BU type A0 |
| Color code | CC00 |
| Maximum switching frequency with resistive load | 2 Hz |
| Firmware version | V0.0 |
| Module diagnostics | Supply voltage monitoring; substitute values connectable |
Key Features

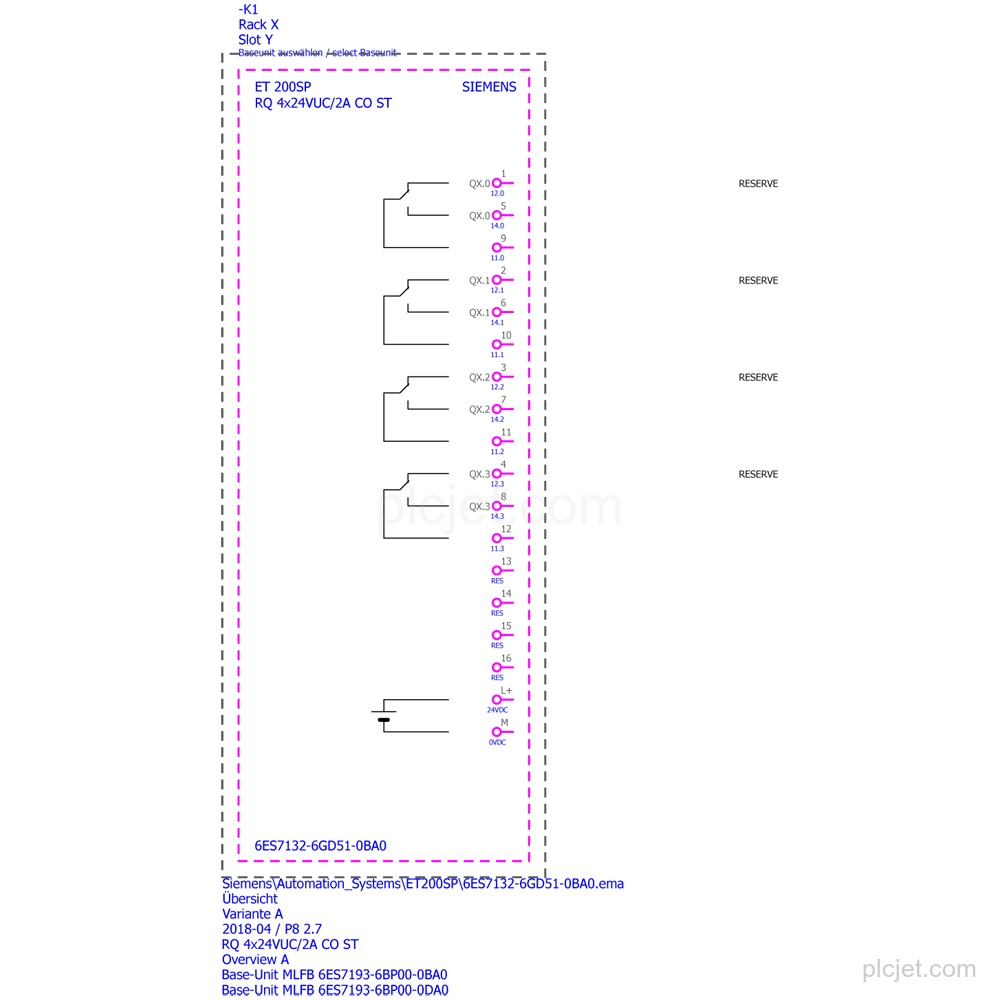

4 relay outputs with 4 changeover contacts; digital outputs are parameterizable.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
Maximum current per channel: 2 A; maximum current per module: 8 A.
For horizontal installation, the maximum is 8 A up to 40 °C, 6 A up to 50 °C, or 4 A up to 60 °C. For vertical installation, the maximum is 8 A up to 30 °C, 6 A up to 40 °C, or 4 A up to 50 °C.
Fits BU type A0 and has color code CC00, automatic encoding, and mechanical coding element type C.
Module diagnostics monitor the supply voltage; substitute values are connectable. Channels, channels and backplane bus, and channels and the electronics power supply are isolated.
Frequently Asked Questions
What is the exact product type of the Siemens 6ES7132-6GD51-0BA0?

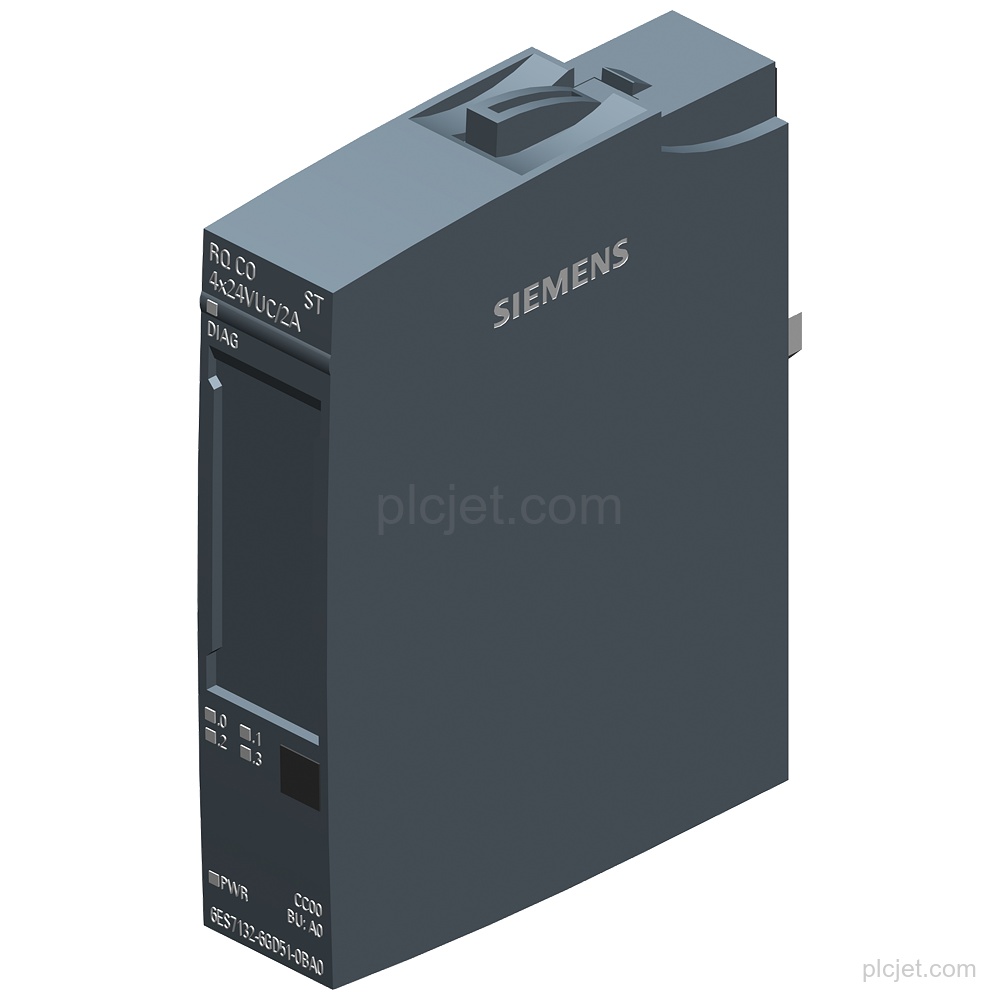

It is a SIMATIC ET 200SP signal relay module with product type designation RQ CO 4x24VDC/2A ST.
How many relay outputs does this module have?
It has 4 relay outputs with 4 changeover contacts.
What supply voltage and output current does it use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC. Maximum current is 2 A per channel and 8 A per module.
Which BaseUnit does the module fit?
It fits BU type A0.
What configuration details should be included in a quotation request?
Include the exact order number, requested quantity, destination, schedule context, and any additional BOM lines.
