Product Overview
Technical Summary

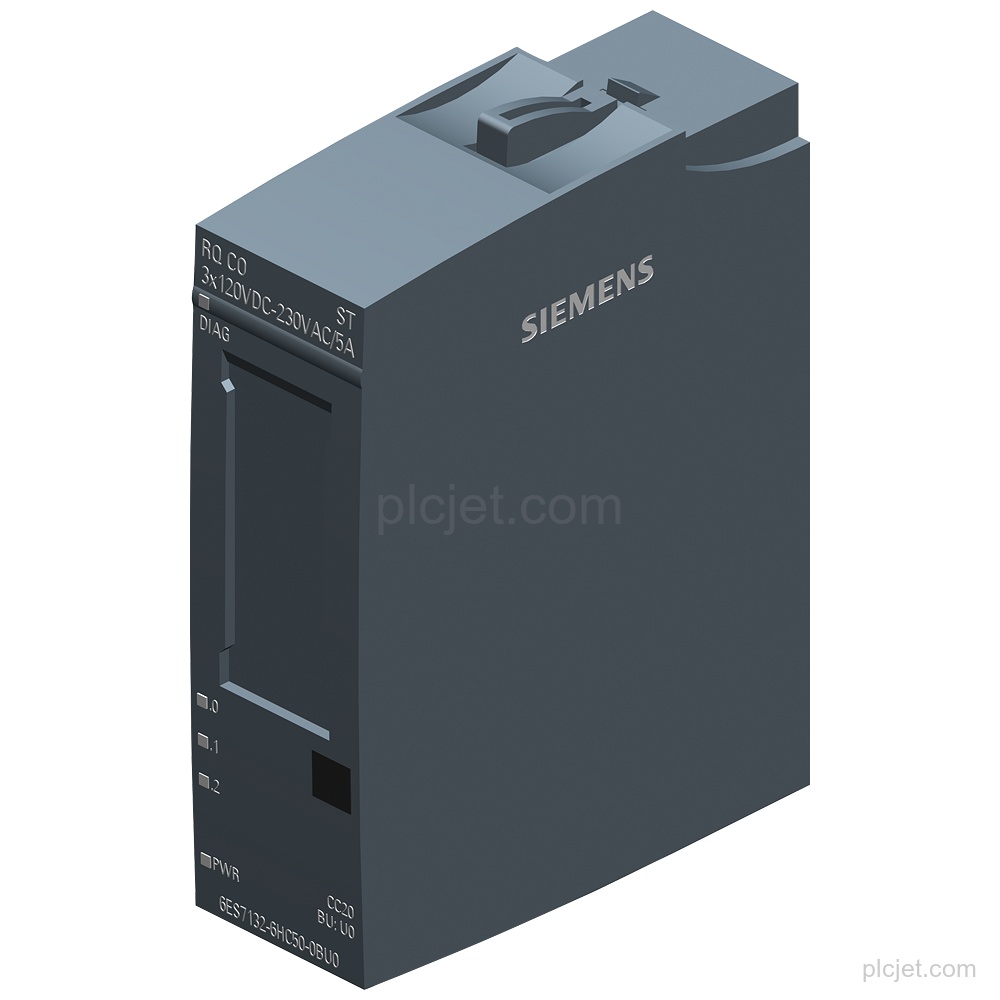

| Product type | RQ 3x120VDC-230VAC/5A CO ST |
|---|---|
| Digital outputs | 3 relay outputs; changeover contact, isolated |
| Rated supply voltage | 24 V DC |
| Supply voltage range | 19.2 V to 28.8 V DC |
| Output switching voltage | 24 V DC to 120 V DC; 24V AC to 230V AC |
| Maximum current per channel | 5 A |
| Maximum current per module | 15 A |
| Suitable BaseUnit | BU type U0 |
| PROFINET GSDML | V2.34 |
Key Features

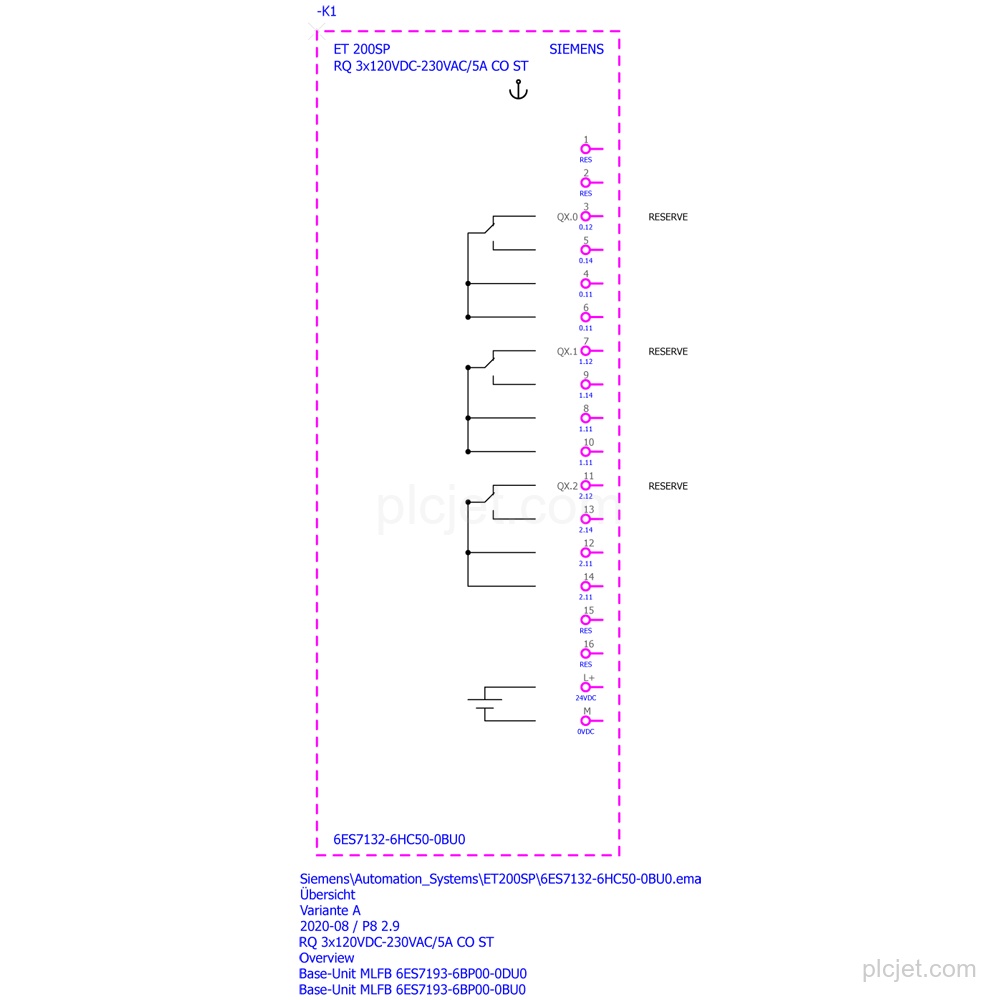

3 relay outputs with isolated changeover contacts.
Maximum current is 5 A per channel and 15 A per module; resistive-load switching capacity is 5 A maximum.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC and reverse polarity protection.
Module diagnostics include supply-voltage monitoring, diagnostic alarms, substitute values, a green PWR LED, and a green/red DIAG LED.
Suitable BaseUnit: BU type U0. The module has automatic encoding and a type C mechanical coding element.
Frequently Asked Questions
What is the exact product type of 6ES7132-6HC50-0BU0?
The product type is RQ 3x120VDC-230VAC/5A CO ST.
How many relay outputs does this module have?
It has 3 relay outputs with isolated changeover contacts.
What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
Which BaseUnit is suitable for this module?
BU type U0 is suitable for 2-wire and 3-wire connections.
