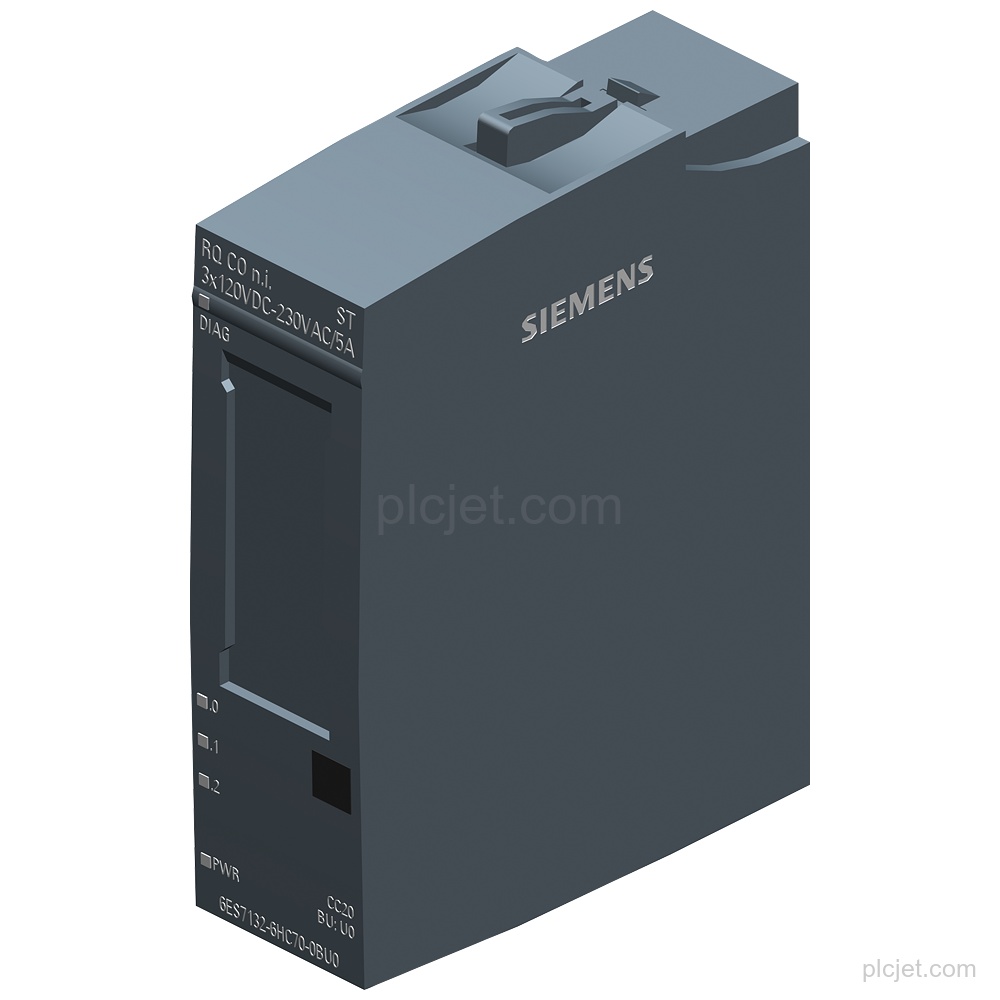

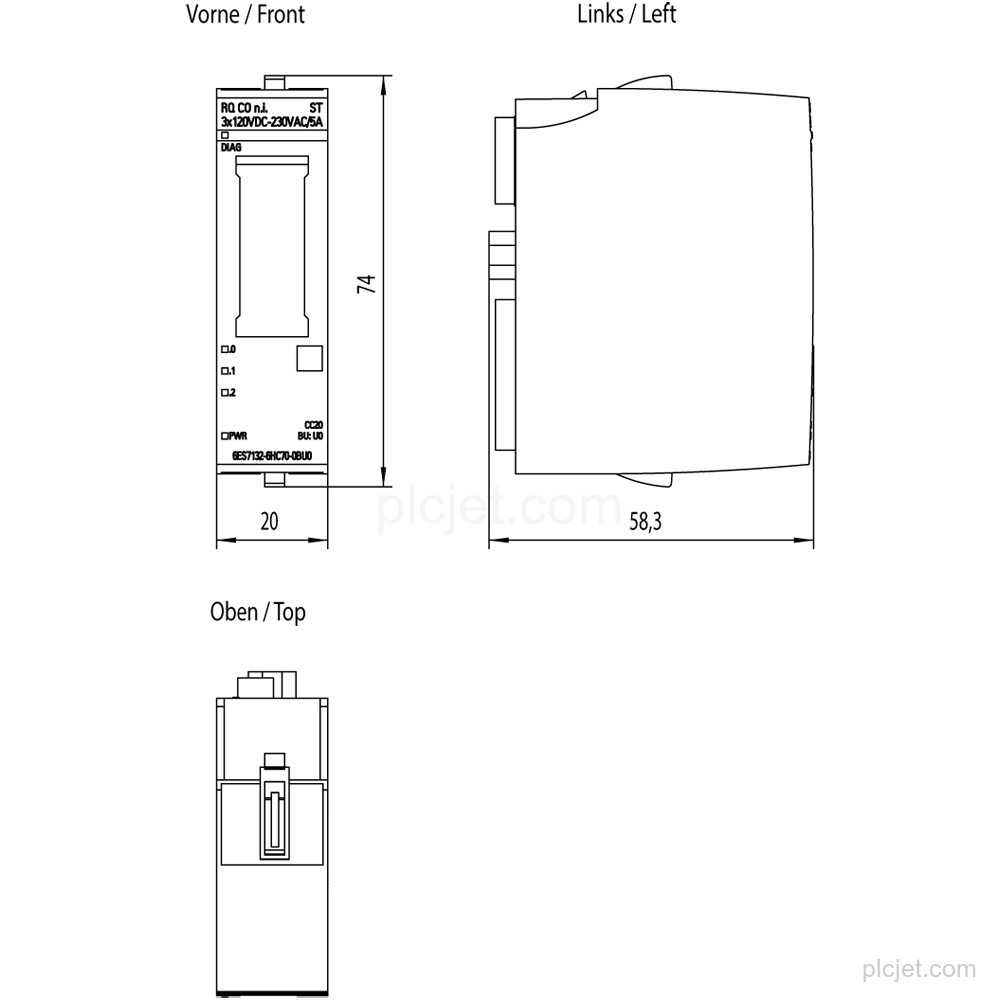

Product Overview
Technical Summary
| Product type | RQ 3x120VDC-230VAC/5A CO n.i. ST |
|---|---|
| Digital outputs | 3 relay outputs; changeover contact, non-floating |
| Rated supply voltage | 24 V DC |
| Output switching voltage | 24 V DC to 120 V DC; 24V AC to 230V AC |
| Switching capacity | 5 A max. with resistive load; 2 A max. with inductive load |
| BaseUnit | BU type U0 |
| Module color code | CC20 |
| Power consumption | 40 mA rated value without load; 55 mA max. |
| Diagnostics | Supply-voltage monitoring, diagnostic alarm, module diagnostics, and connectable substitute values |
| Engineering | STEP 7 TIA Portal: TIA V19 or higher with HSP0463; integrated as of TIA V20 |
| Firmware | V0.0; FW update possible: No |
Key Features

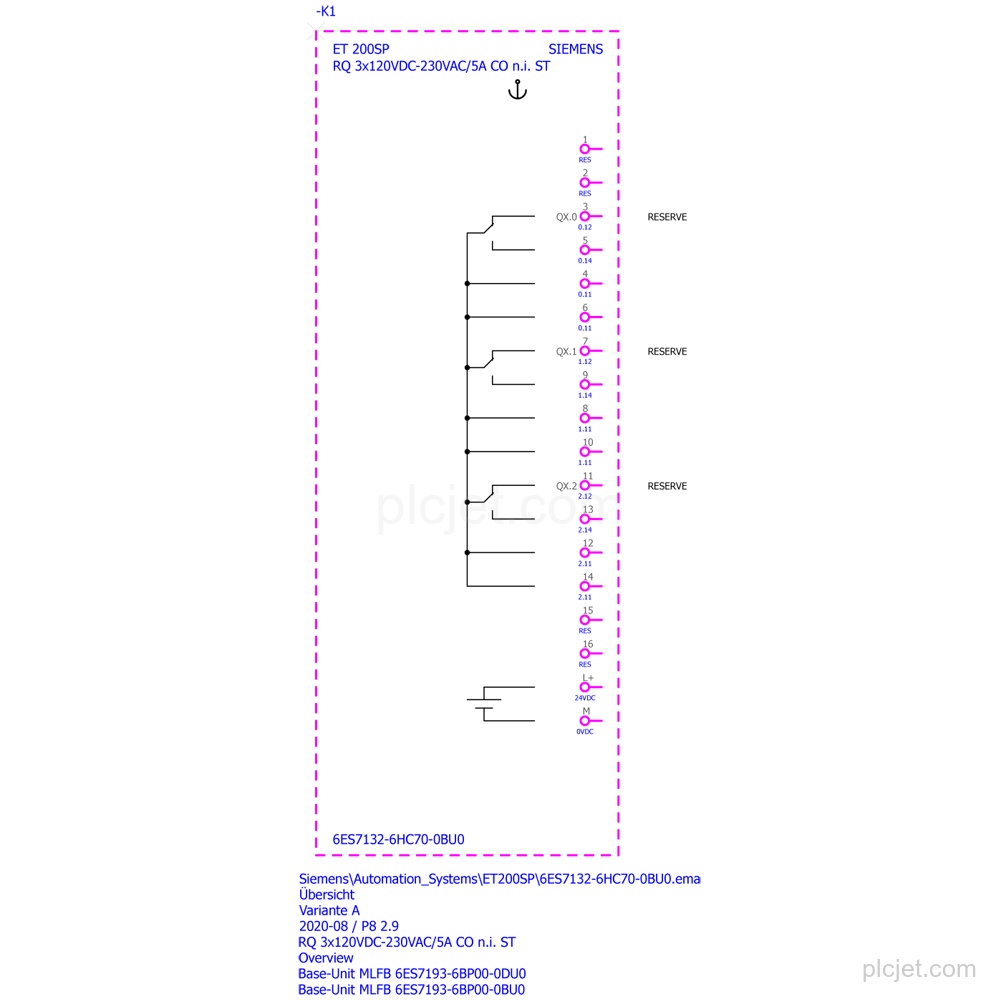

Provides 3 digital relay outputs with non-isolated changeover contacts; both current-sinking and current-sourcing operation are supported.
Supports up to 5 A with resistive load and up to 2 A with inductive load. The maximum current is 5 A per channel and 5 A per module.
Rated relay coil supply is 24 V DC, with a permissible supply range of 19.2 V to 28.8 V. The module is suitable for BU type U0.
Provides module diagnostics, supply-voltage monitoring, diagnostic alarms, green PWR and channel-status LEDs, and connectable substitute values.
Supports STEP 7 TIA Portal from TIA V19 or higher with HSP0463, or integrated from TIA V20. Automatic and mechanical coding are supported; the mechanical coding element is type C.
Frequently Asked Questions
What is the exact configuration of Siemens 6ES7132-6HC70-0BU0?
It is a SIMATIC ET 200SP relay module with 3 non-isolated changeover contacts, substitute value output, and module diagnostics for supply voltage.
Which BaseUnit is suitable for this relay module?
BU type U0 is suitable for both 2-wire and 3-wire connection variants.
What load can the relay outputs switch?
The outputs support up to 5 A with resistive load and up to 2 A with inductive load. The maximum current is 5 A per channel and 5 A per module.
What should be included in a quotation request for this exact line item?
Include the requested quantity, destination, schedule context, and whether you have additional BOM lines.
