Product Overview
Applications
Provides relay outputs for switching connected loads through normally open contacts.
Technical Summary
| Product type | RQ 4×120 VDC … 230 VAC/5 A NO ST |
|---|---|
| Digital outputs | 4 relay outputs; parameterizable: Yes |
| Rated supply voltage | 24 V DC |
| Rated switching voltage | 24 V DC to 120 V DC; 24 V AC to 230 V AC |
| Current per channel, max. | 5 A |
| Current per module, max. | 20 A |
| Usable BaseUnits | BU type B0, B1 |
| Diagnostics | Supply-voltage monitoring, diagnostic alarm, substitute values connectable |
| Firmware version | V0.0 |
| Product lifecycle | Active Product |
Key Features
4 relay outputs with normally open contacts; current per channel is max. 5 A.
Rated switching voltage is 24 V DC to 120 V DC and 24 V AC to 230 V AC.
Fits BU type B0 and B1; 3-wire connection uses BU type B0 and 2-wire connection uses BU type B1.
Module diagnostics include supply-voltage monitoring, diagnostic alarm, substitute values, and a green/red DIAG LED.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
Frequently Asked Questions
What exact product is 6ES7132-6HD01-0BB1?

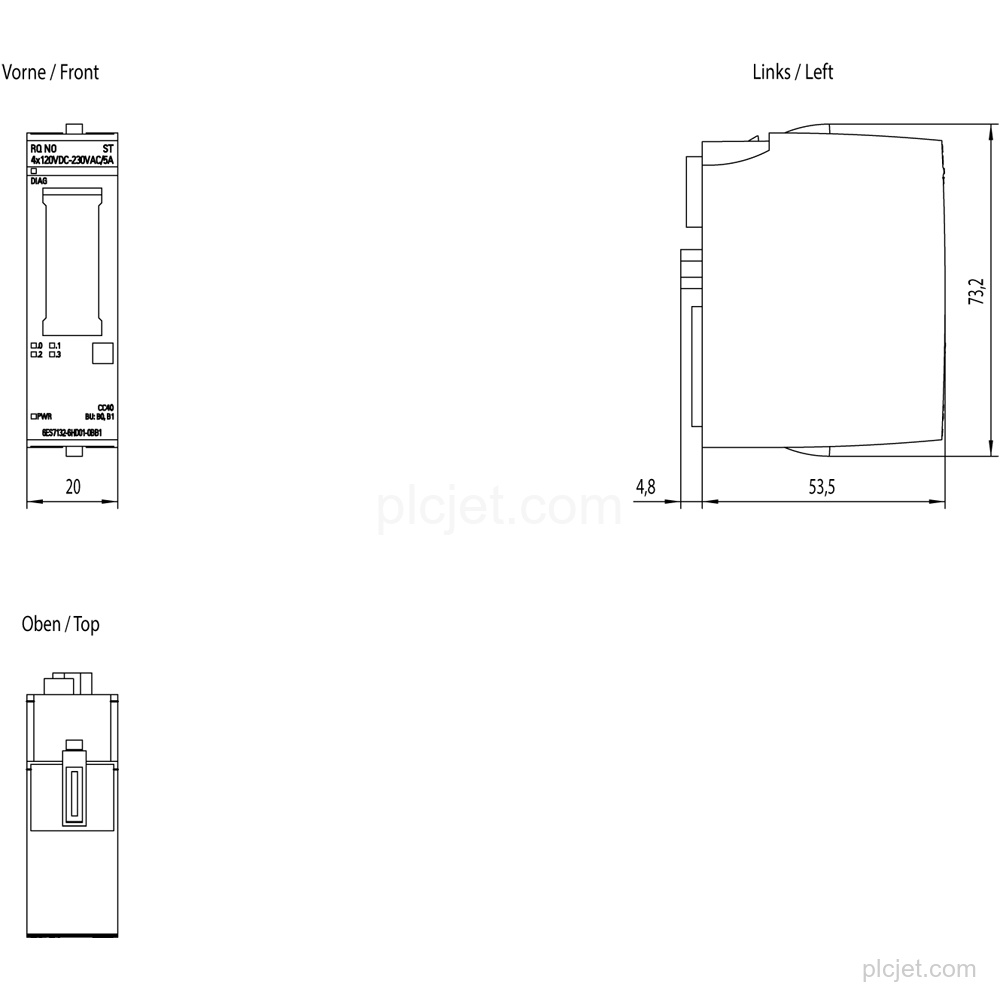

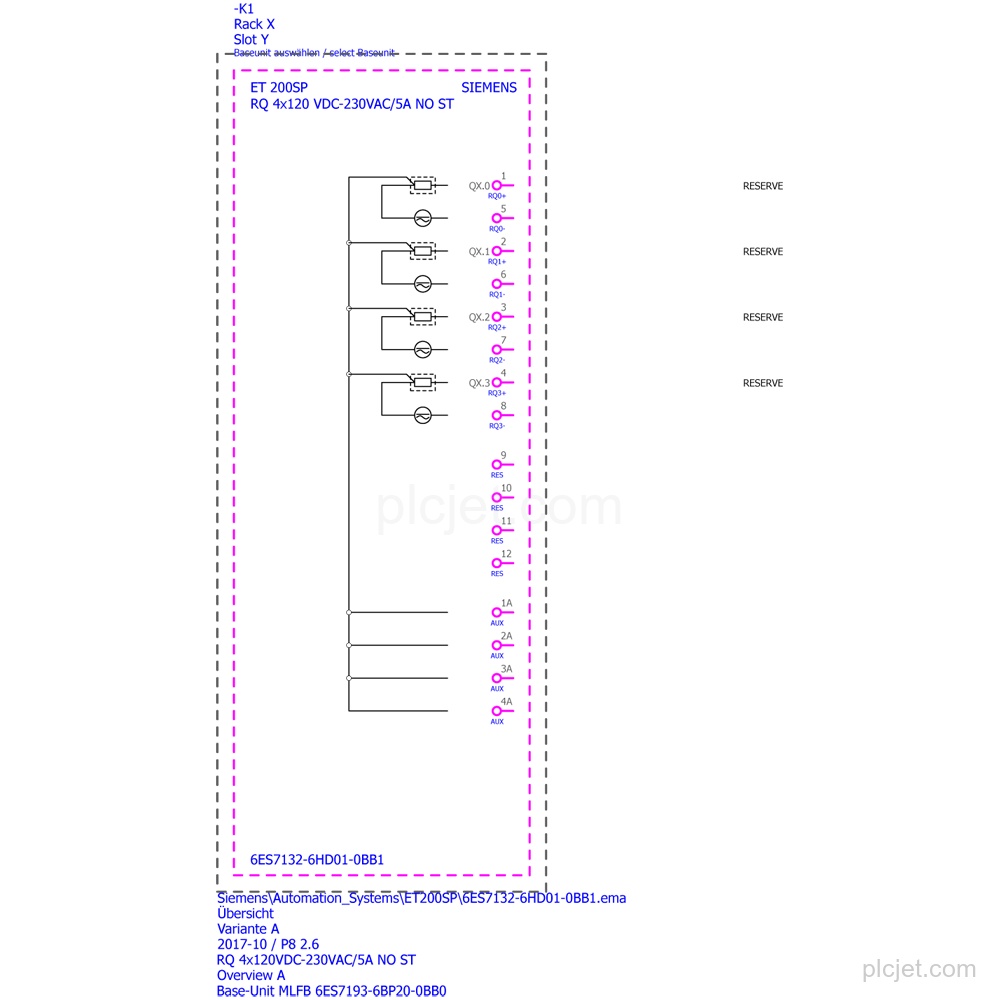

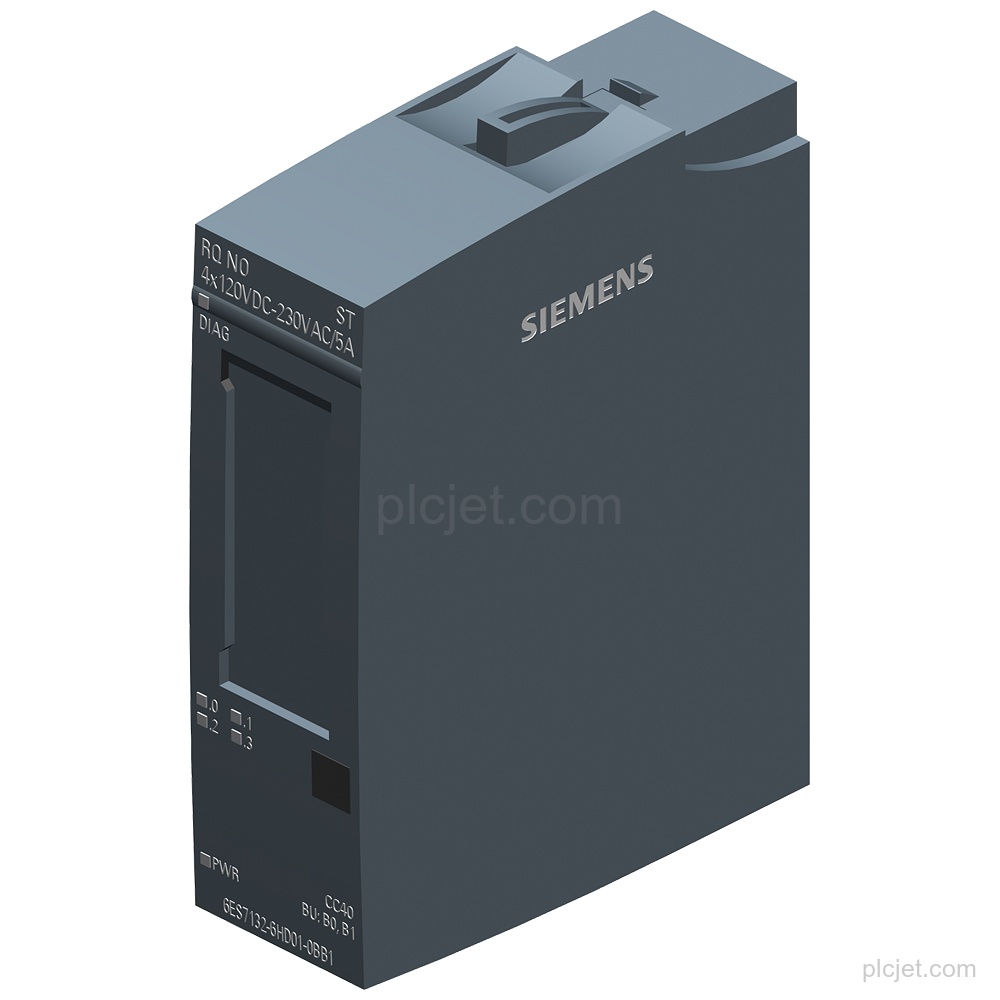

It is a SIMATIC ET 200SP RQ 4×120 VDC … 230 VAC/5 A NO ST relay module with 4 relay outputs.
Which BaseUnits can this relay module use?
It fits BU type B0 and B1. BU type B0 is used for 3-wire connection, and BU type B1 for 2-wire connection.
What is the maximum current per channel?
The maximum current per channel is 5 A. The maximum current per module is 20 A.
What is included in this configuration?
The collected product description specifies a packing unit of 1 piece. The order description does not specify additional components.
