Product Overview
Applications

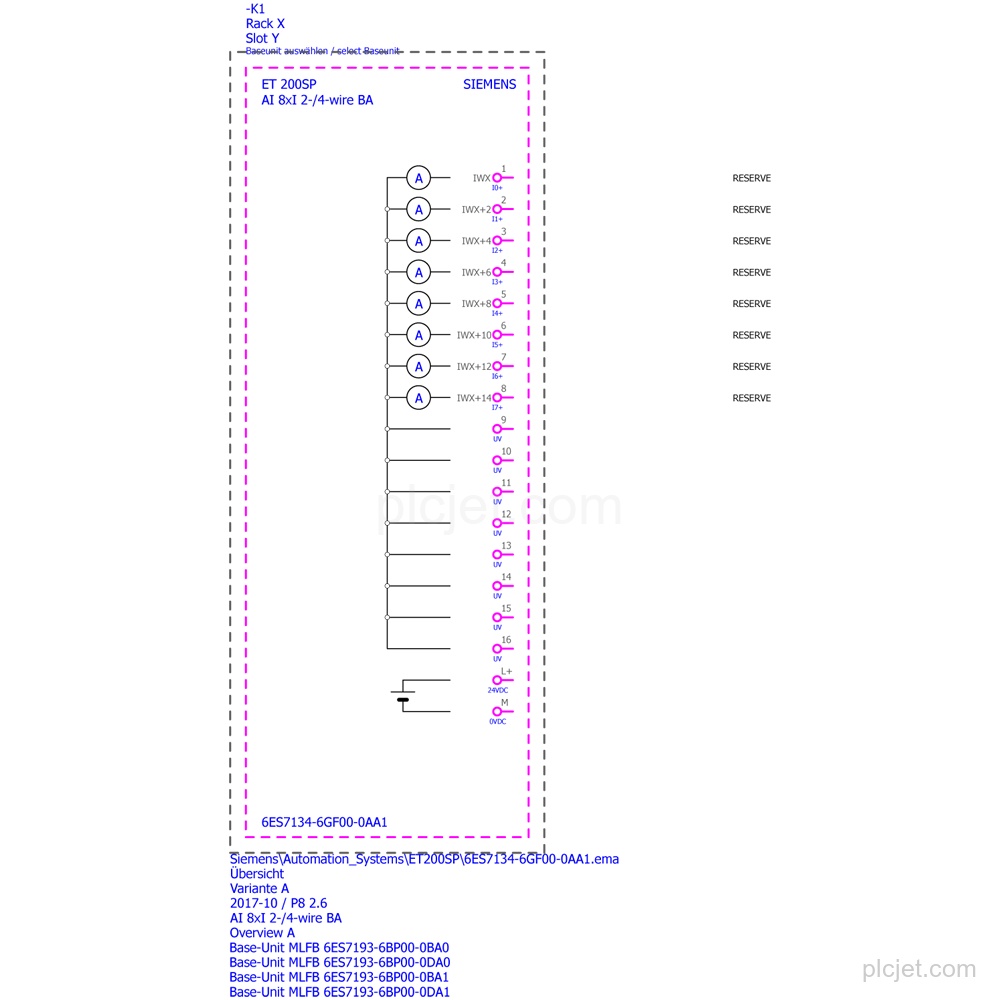

The module supports current measurement with 2-wire and 4-wire transducers.

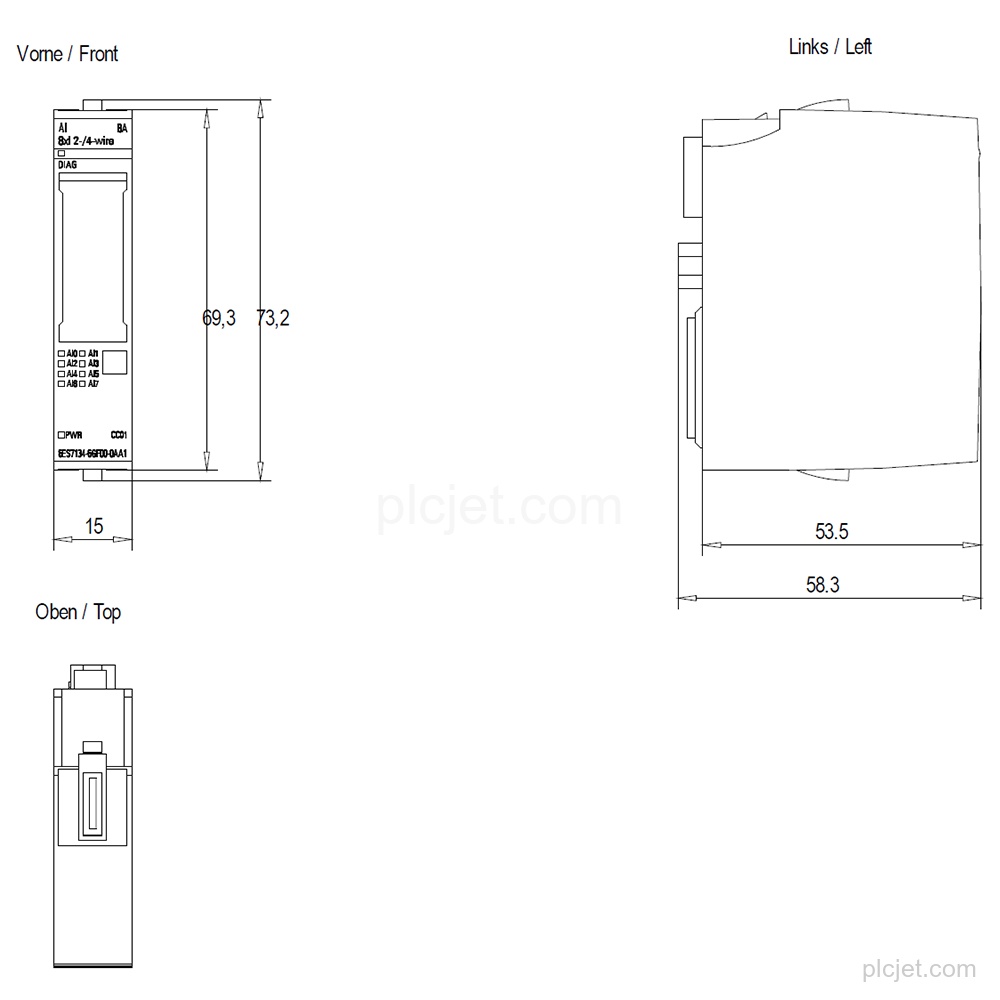

Technical Summary
| Product type | AI 8xI 2-/4-wire BA |
|---|---|
| Analog inputs | 8; Single-ended |
| Current input ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Rated supply voltage | 24 V DC |
| Supply voltage permissible range | 19.2 V to 28.8 V DC |
| Resolution with overrange | 16 bit including sign |
| Cycle time | 1 ms; all channels, per channel |
| Connection BaseUnits | BU type A0, A1; 4-wire connection requires BU type A0, A1 + potential distributor module |
Key Features
The module has 8 single-ended analog inputs for current measurement.
Supported rated input ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
Resolution with overrange is up to 16 bit including sign.
The module is suitable for BU type A0, A1 and has a maximum address space of 16 byte.
Diagnostics include supply-voltage monitoring, wire break at 4 to 20 mA, short-circuit, group error, and overflow/underflow module-wise.
It is configurable with TIA Portal V21 and STEP 7 V5.7 SP3; firmware version is V2.0.0 and FW update is possible.
Frequently Asked Questions
What is the exact product type of 6ES7134-6GF00-0AA1?
The product type designation is AI 8xI 2-/4-wire BA.
How many analog current inputs does the module have?
It has 8 single-ended analog inputs for current measurement.
Which BaseUnits are suitable for this module?
BU type A0 and A1 are suitable; 4-wire connection requires BU type A0, A1 + potential distributor module.
What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
