Product Overview
Technical Summary
| Product type | AI 2xU/I 2-/4-wire HF |
|---|---|
| Analog inputs | 2; Differential inputs |
| Input ranges | 0 to +10 V, 1 V to 5 V, -10 V to +10 V, -5 V to +5 V, 0 to 20 mA, -20 mA to +20 mA, 4 mA to 20 mA |
| Resolution | Up to 16 bit |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Encoder supply output current | Max. 20 mA; max. 50 mA per channel for a duration < 10 s (two-wire); 100 mA; max. 150 mA for a duration < 10 s (four-wire) |
| BaseUnits | BU type A0, A1 |
| Diagnostics | Channel diagnostics, diagnostic alarm, limit value alarm, wire break, short-circuit, group error, overflow/underflow |
| Operating temperature | Horizontal installation: -30 °C to 60 °C; vertical installation: -30 °C to 50 °C |
| Product lifecycle | Active Product |
Key Features
2 differential analog inputs support voltage measurement and current measurement.
Voltage ranges include 0 to +10 V, 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V; current ranges include 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA. Resolution is up to 16 bit.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Encoder supply has short-circuit protection; output current is max. 20 mA for two-wire and 100 mA for four-wire connections.
The module has channel diagnostics, diagnostic and limit value alarms, supply-voltage monitoring, wire-break detection for 4 mA to 20 mA, and channel-by-channel short-circuit detection.

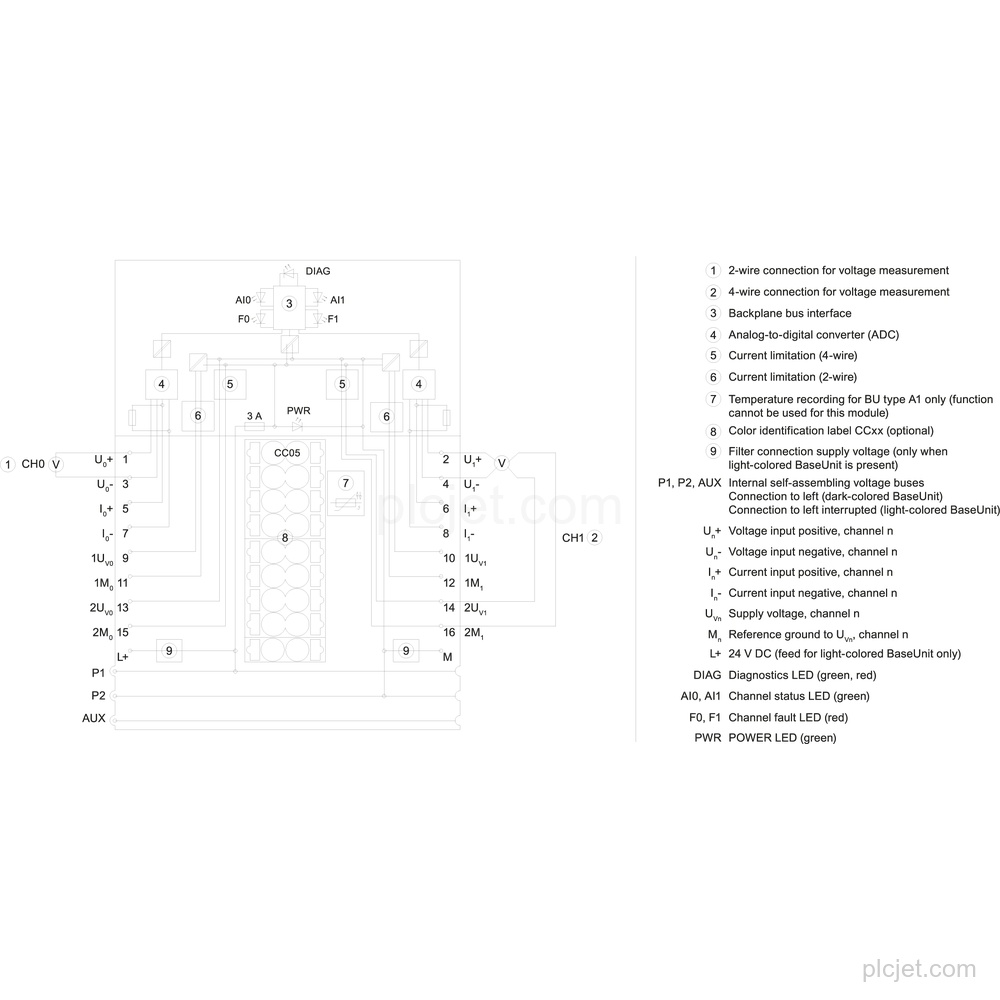

2-wire and 4-wire connections use BU type A0, A1. Shielded cable length is max. 1 000 m, or 200 m for voltage measurement.

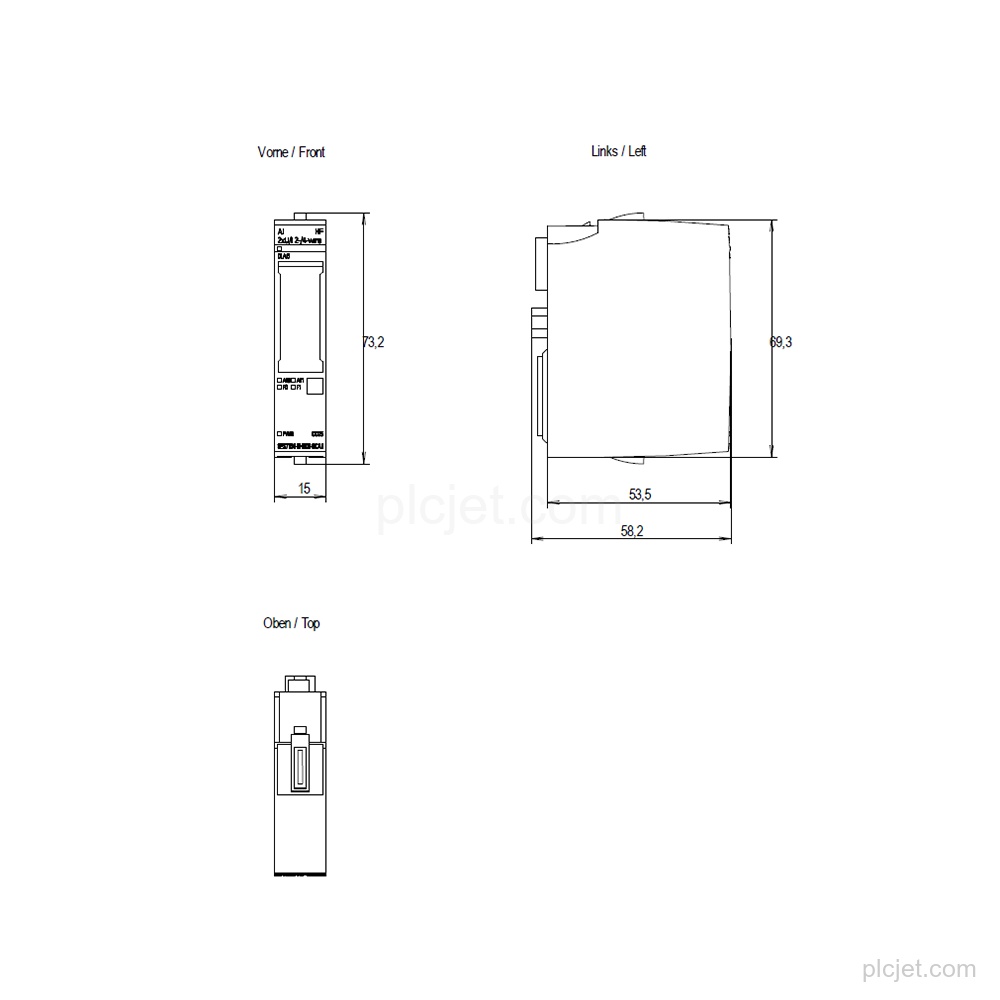

Dimensions are 15 mm × 73 mm × 58 mm and weight is approx. 32 g. Horizontal installation is permitted from -30 °C to 60 °C; vertical installation is permitted from -30 °C to 50 °C.
Frequently Asked Questions
What exact product is Siemens 6ES7134-6HB00-0CA1?
It is a SIMATIC ET 200SP analog input module, product type AI 2xU/I 2-/4-wire HF.
How many analog inputs does this module have?
It has 2 differential analog inputs for voltage measurement and current measurement.
Which BaseUnits and connection variants are supported?
2-wire and 4-wire connections use BU type A0, A1.
What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
