Product Overview
Applications
Supports voltage measurement through the analog inputs.
Supports current measurement with 2-wire and 4-wire transducers.
Technical Summary
| Product type | AI 2xU/I 2-/4-wire HS |
|---|---|
| Analog inputs | 2; Differential inputs |
| Input ranges | 0 to +10 V; 1 V to 5 V; -10 V to +10 V; -5 V to +5 V; 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution, max. | 16 bit |
| Cycle time (all channels), min. | 125 μs |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Suitable BaseUnits | BU type A0, A1 |
| Firmware version | V2.0.3 |
Key Features
2 differential analog inputs support voltage and current measurement.
Supported ranges include 0 to +10 V, 1 V to 5 V, -10 V to +10 V, -5 V to +5 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA, with up to 16 bit resolution.
Cycle time for all channels is 125 μs min.; oversampling supports 2 channels per module and up to 16 values per cycle.
Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
The module provides channel diagnostics, diagnostic alarms, wire-break and short-circuit diagnostics, and supports PROFINET GSDML V2.3 and PROFIBUS GSD Revision 3 and 5 and higher.

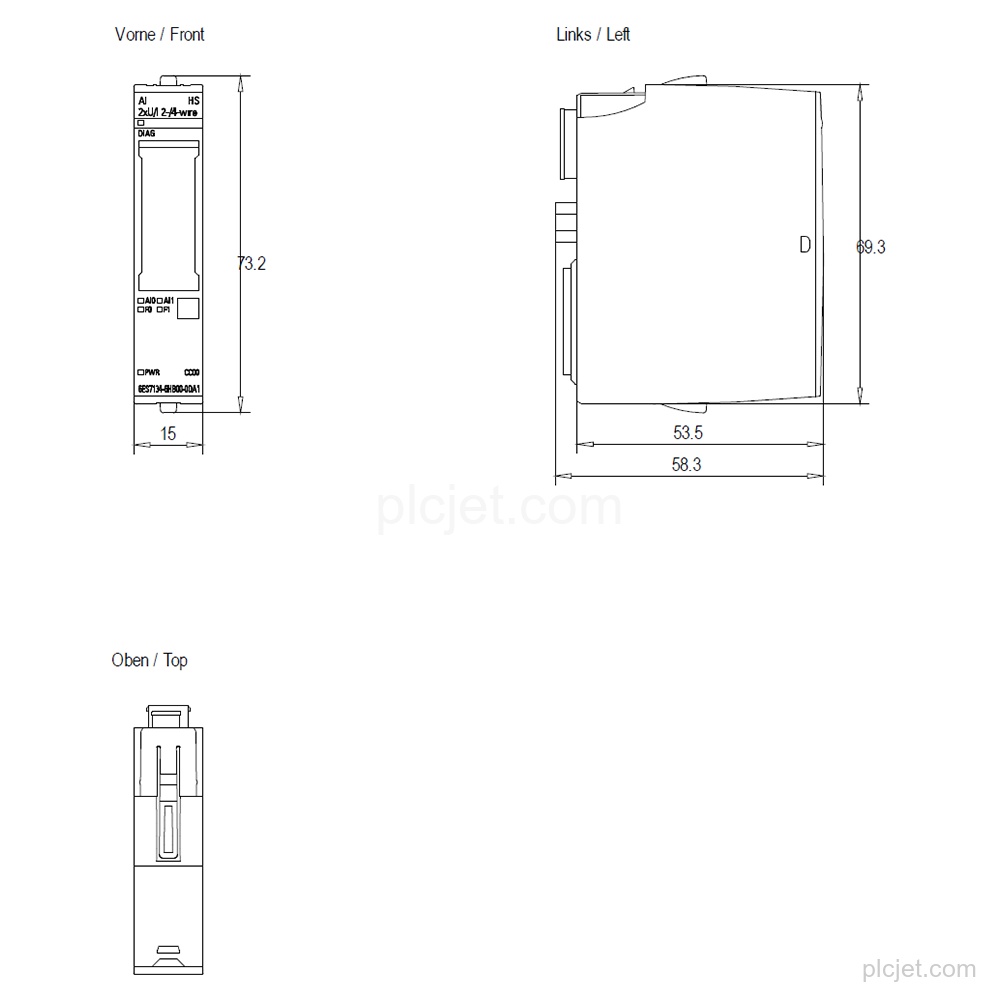

Suitable BaseUnits are BU type A0, A1. Dimensions are 15 mm × 73 mm × 58 mm, and weight is approx. 32 g.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7134-6HB00-0DA1?
It is an AI 2xU/I 2-/4-wire HS SIMATIC ET 200SP analog input module.
How many analog inputs does the module have?
It has 2 differential analog inputs for voltage and current measurement.
Which BaseUnits are suitable for this module?

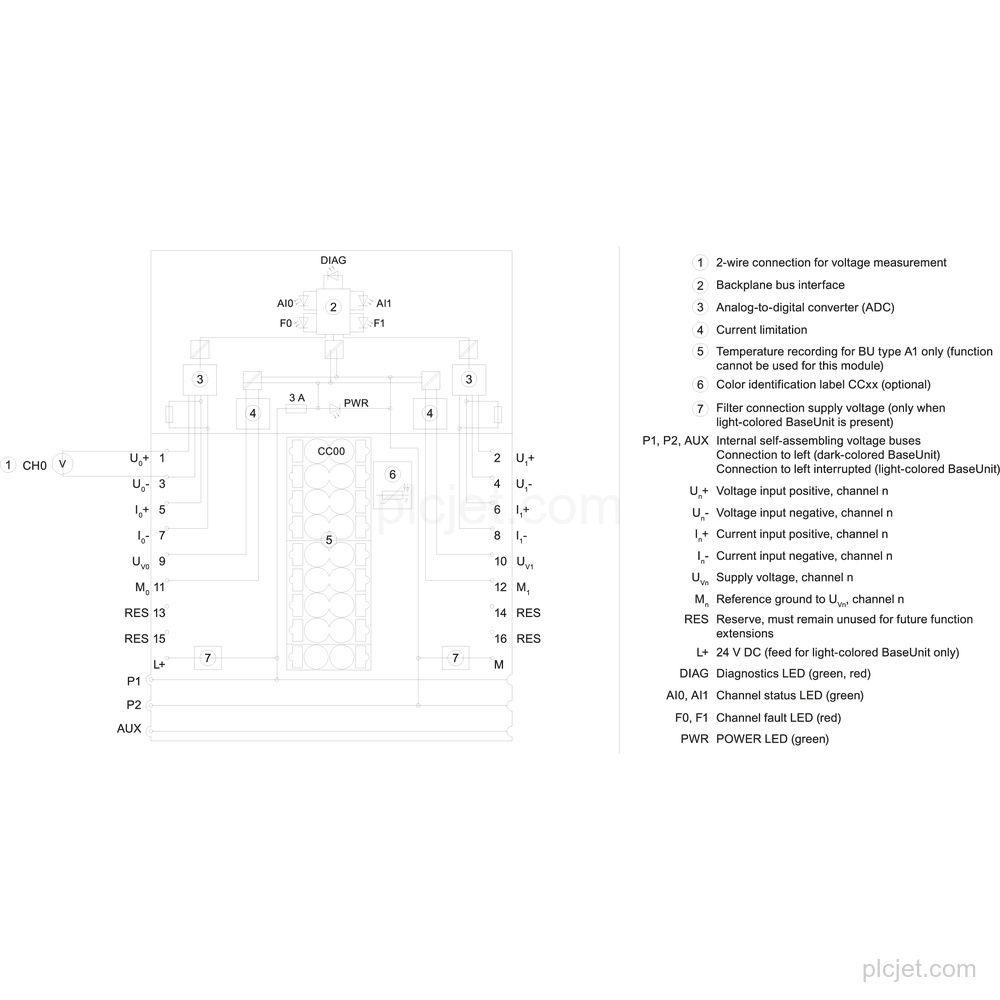

Suitable BaseUnits are BU type A0 and BU type A1 for 2-wire and 4-wire connections.
What supply voltage does the configuration require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
