Product Overview
Applications
Supports temperature measurement using thermocouple inputs with adjustable technical units °C/°F/K.
Supports voltage measurement with input ranges from -1 V to +1 V, -250 mV to +250 mV, -50 mV to +50 mV and -80 mV to +80 mV.
Technical Summary
| Product type | AI 4xTC HS |
|---|---|
| Analog inputs | 4 |
| Resolution | 16 bit including sign |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Cycle time | 5 ms minimum, all channels |
| BaseUnits | BU type A0, A1 |
| Protection diagnostics | Channel-by-channel wire break and overflow/underflow diagnostics |
| Firmware update | Yes |
Key Features
Provides 4 analog inputs for thermocouple types B, C, E, J, K, L, N, R, S, T, U and TXK/TXK(L) to GOST.
Supports 16 bit including sign, with a maximum resolution of 16 bit including overrange.
Rated supply is 24 V DC with a permissible range of 19.2 V to 28.8 V DC and reverse polarity protection.
Provides channel-by-channel wire-break and overflow/underflow diagnostics, group error detection, and diagnostic alarms.

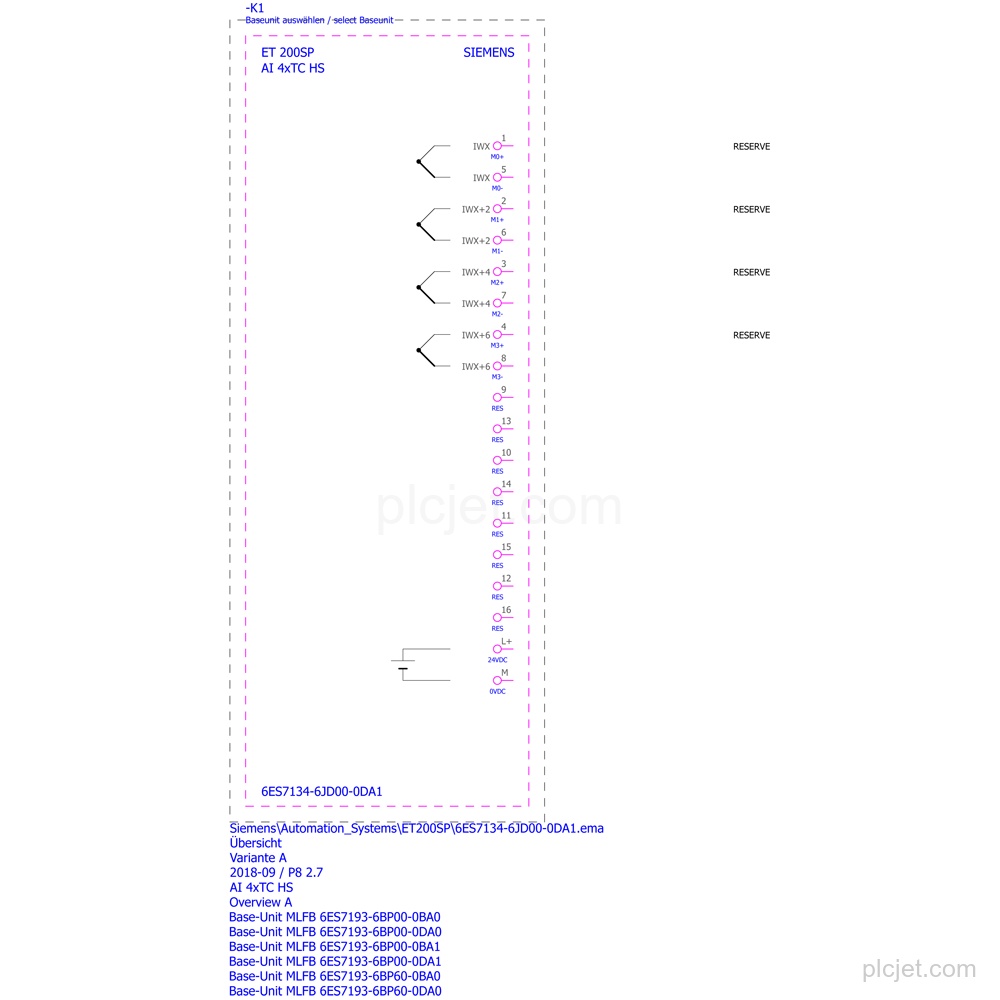

Suitable for BU type A0, A1 and supports 2-wire connection with BU type A0, A1.
FW update is possible; configuration is supported with STEP 7 TIA Portal V15 with HSP 265/integrated as of V15.1 and STEP 7 V5.5 SP3 or higher.
Frequently Asked Questions

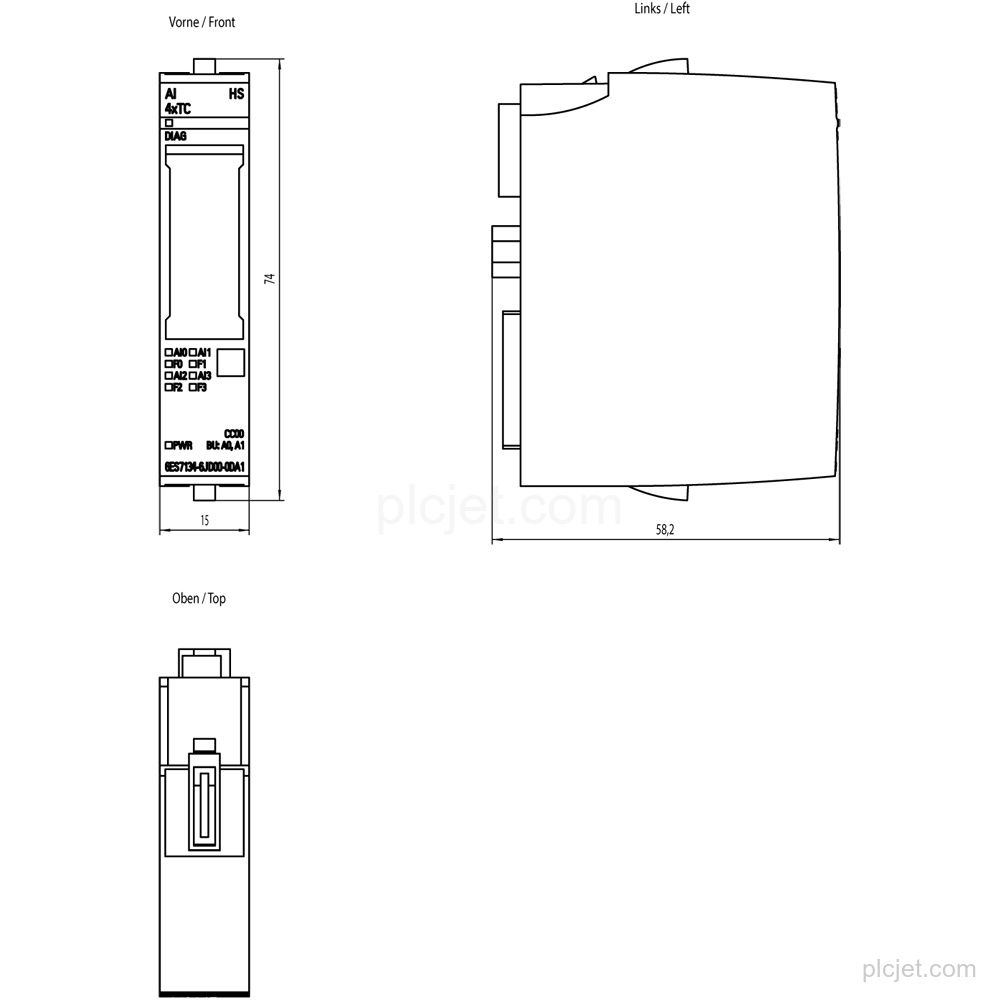

What is the exact product type of Siemens 6ES7134-6JD00-0DA1?

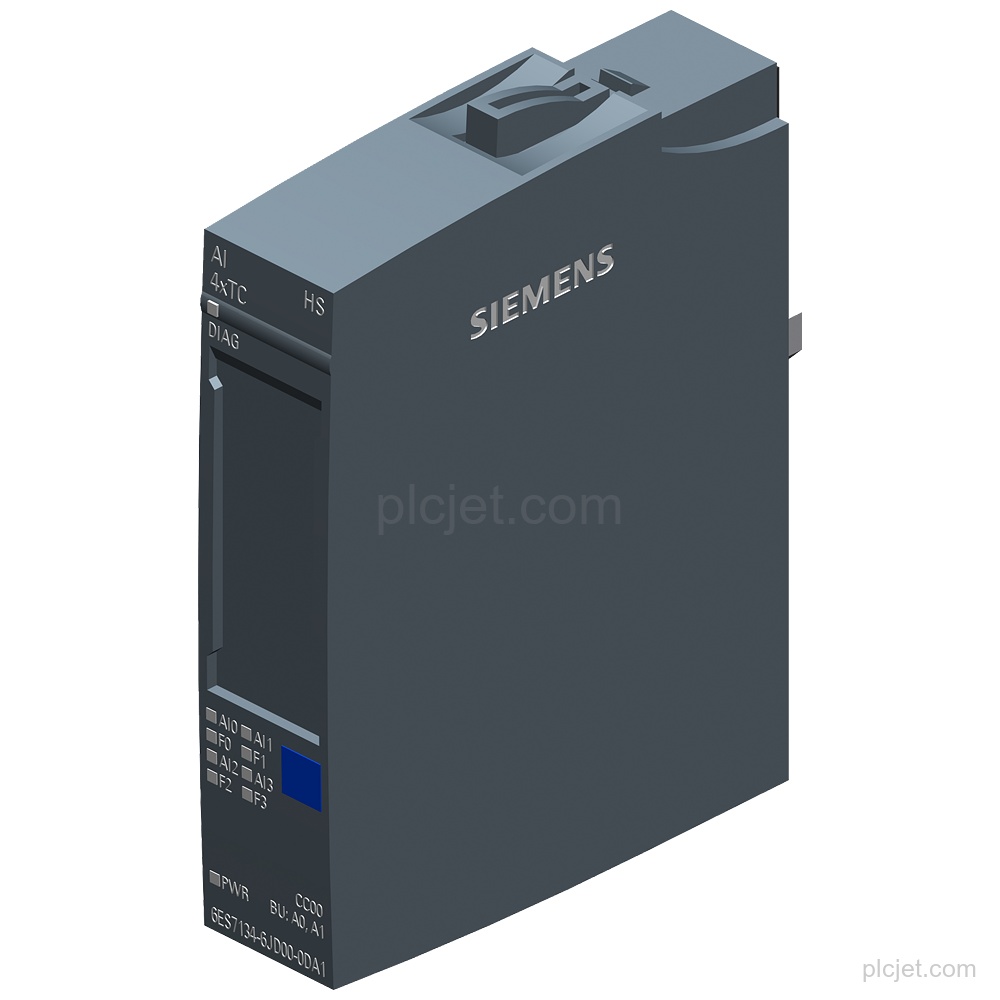

The product type is AI 4xTC HS, a SIMATIC ET 200SP analog input module.
How many analog inputs does this module have?
It has 4 analog inputs for thermocouple and voltage measurement.
Which BaseUnits are suitable for this module?
It is suitable for BU type A0 and A1, including 2-wire connection.
What supply voltage does the module require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
Can this exact line item be included in a quotation request?
Yes. Include the requested quantity, destination, schedule context, and any additional BOM lines.
