Product Overview
Applications
Measures temperature with RTD and thermocouple input ranges, including adjustable °C/°F/K units.
Supports voltage measurement and resistance measurement with a 2-wire connection.

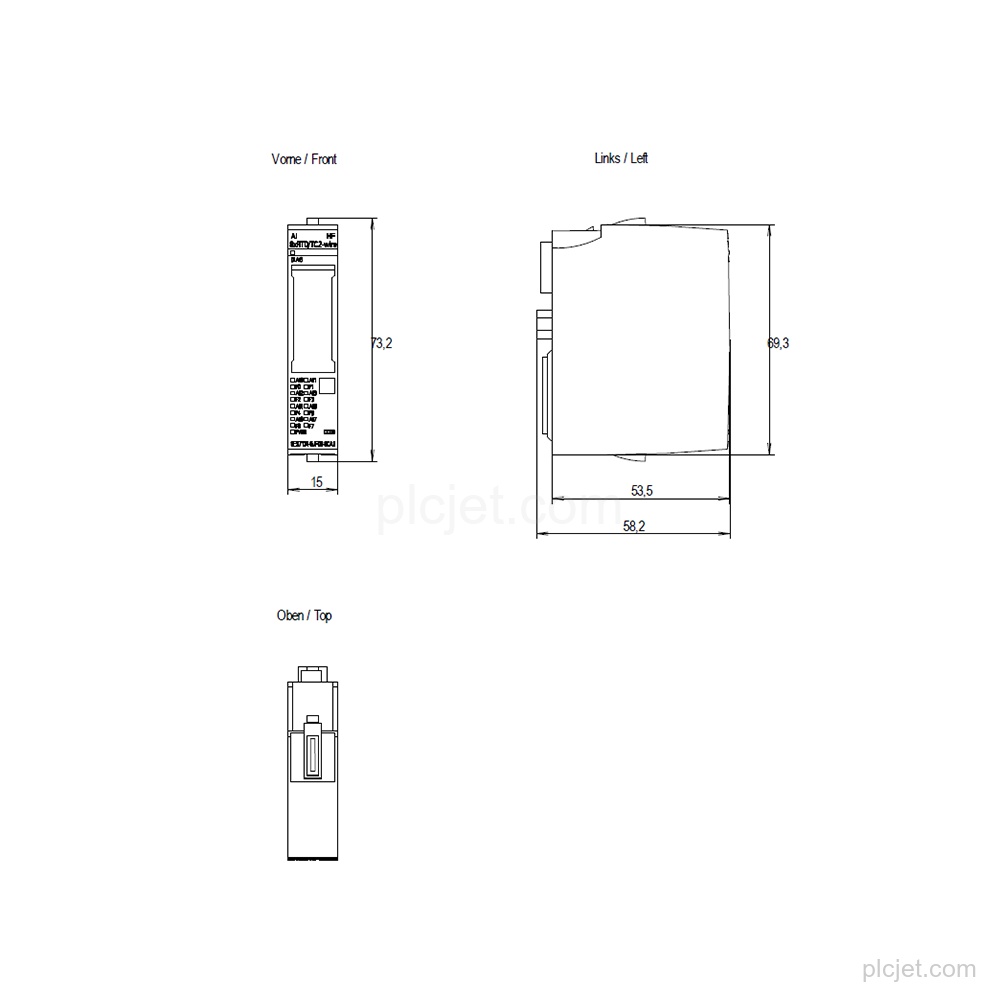

Technical Summary
| Product type | AI 8xRTD/TC 2-wire HF |
|---|---|
| Analog inputs | 8 |
| Resolution | 16 bit including sign |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Input connection | 2-wire; 3-wire and 4-wire resistance measurement: No |
| Supported BaseUnits | BU type A0, A1 |
| Operating temperature, horizontal installation | -30 °C to 60 °C |
| Operating temperature, vertical installation | -30 °C to 50 °C |
| Product lifecycle | Active Product |

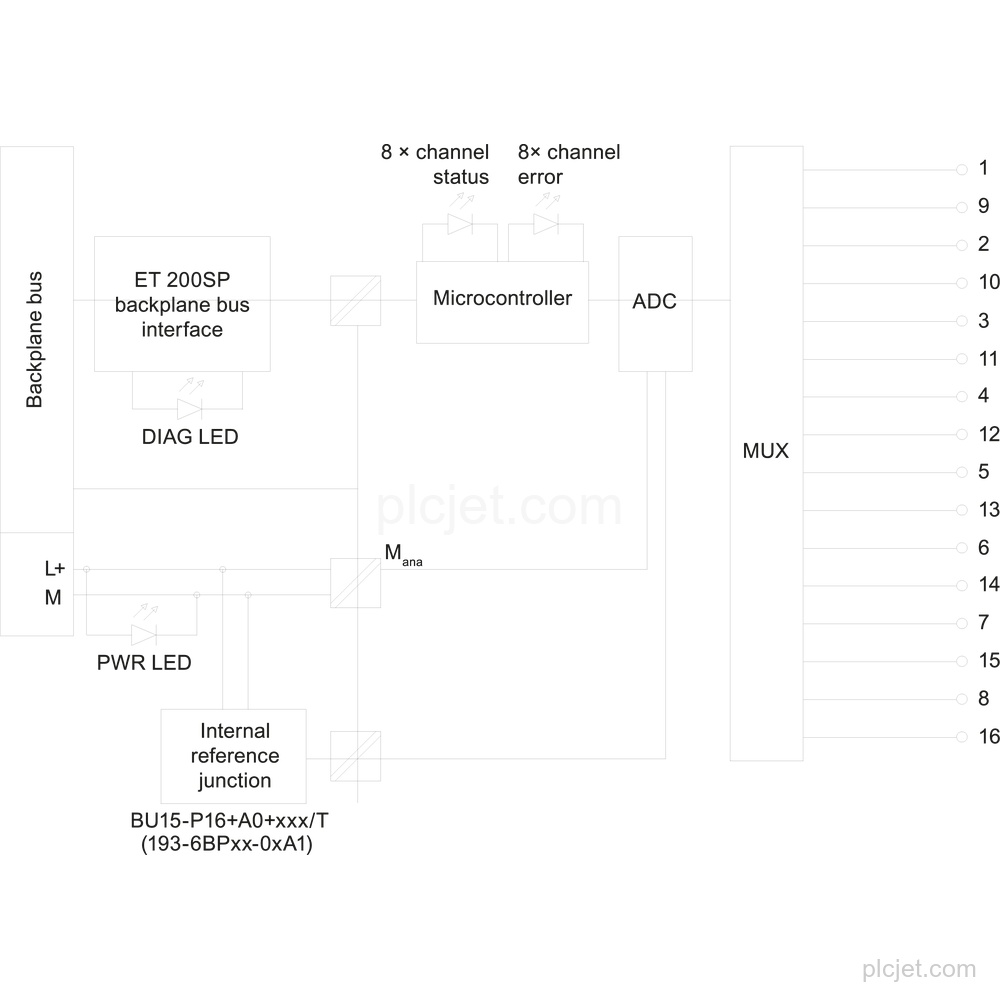

Key Features
8 analog inputs for RTD, thermocouple, voltage and resistance measurement.
16 bit resolution including sign for voltage, thermocouple and resistance thermometer ranges.
Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V DC; reverse polarity protection: Yes.
Diagnostic alarm, wire-break detection channel by channel, group error, and overflow/underflow channel by channel.
Suitable BaseUnits: BU type A0, A1; mechanical coding element: Type A; color code: CC00.
STEP 7 TIA Portal configurable/integrated from V16, V17 / V18; PROFINET GSDML V2.35; PROFIBUS GSD Revision 3 and 5 and higher.
Frequently Asked Questions
What is the exact Siemens model and module type?
It is Siemens 6ES7134-6JF00-0CA1, SIMATIC ET 200SP AI 8xRTD/TC 2-wire HF.
How many analog inputs does this module have?
It has 8 analog inputs.
Which BaseUnits are suitable for this module?
Suitable BaseUnits are BU type A0 and A1.
What connection is supported for resistance measurement?
Resistance measurement with a 2-wire connection is supported; 3-wire and 4-wire resistance measurement are not.
