Product Overview
Applications
Measures voltage, current, energy, frequency, power, active power and reactive power.
Monitors up to 16 freely selectable process values through hardware interrupts when values exceed or undershoot the selected value.
Technical Summary
| Product type | AI Energy Meter RC ST |
|---|---|

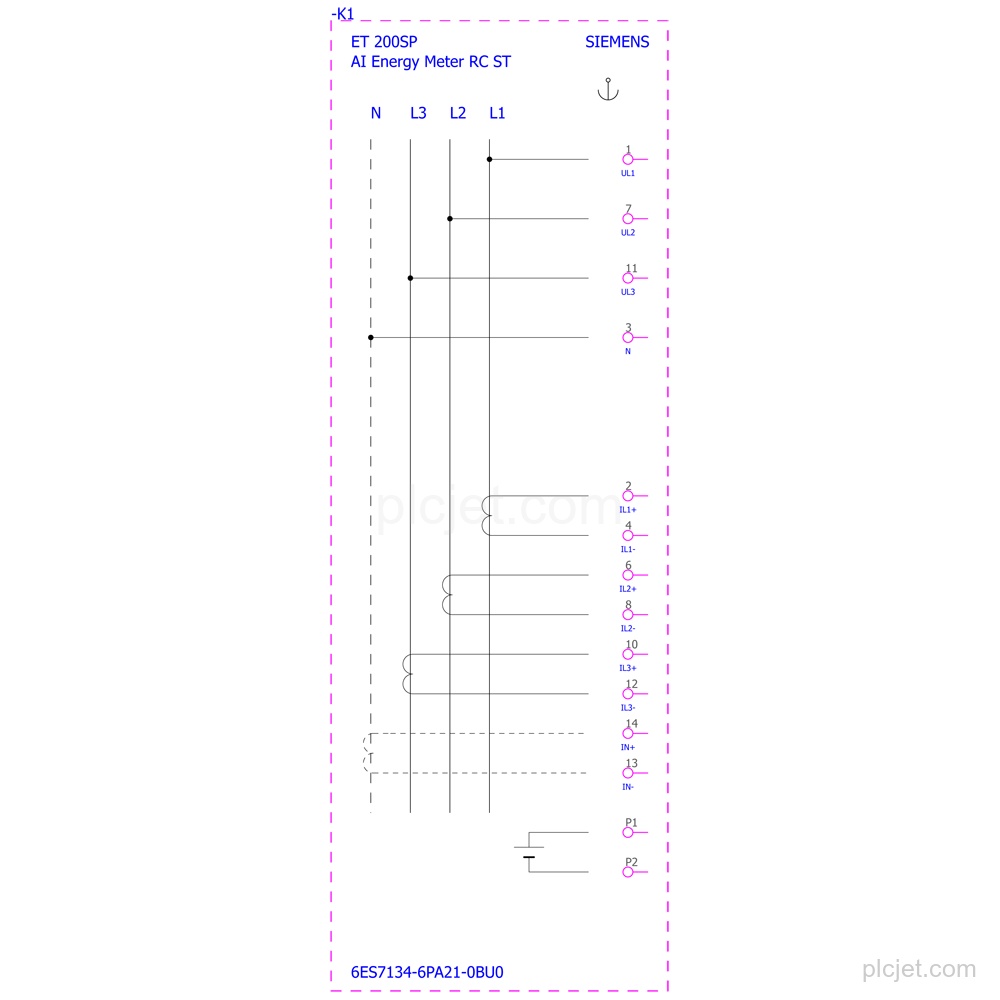

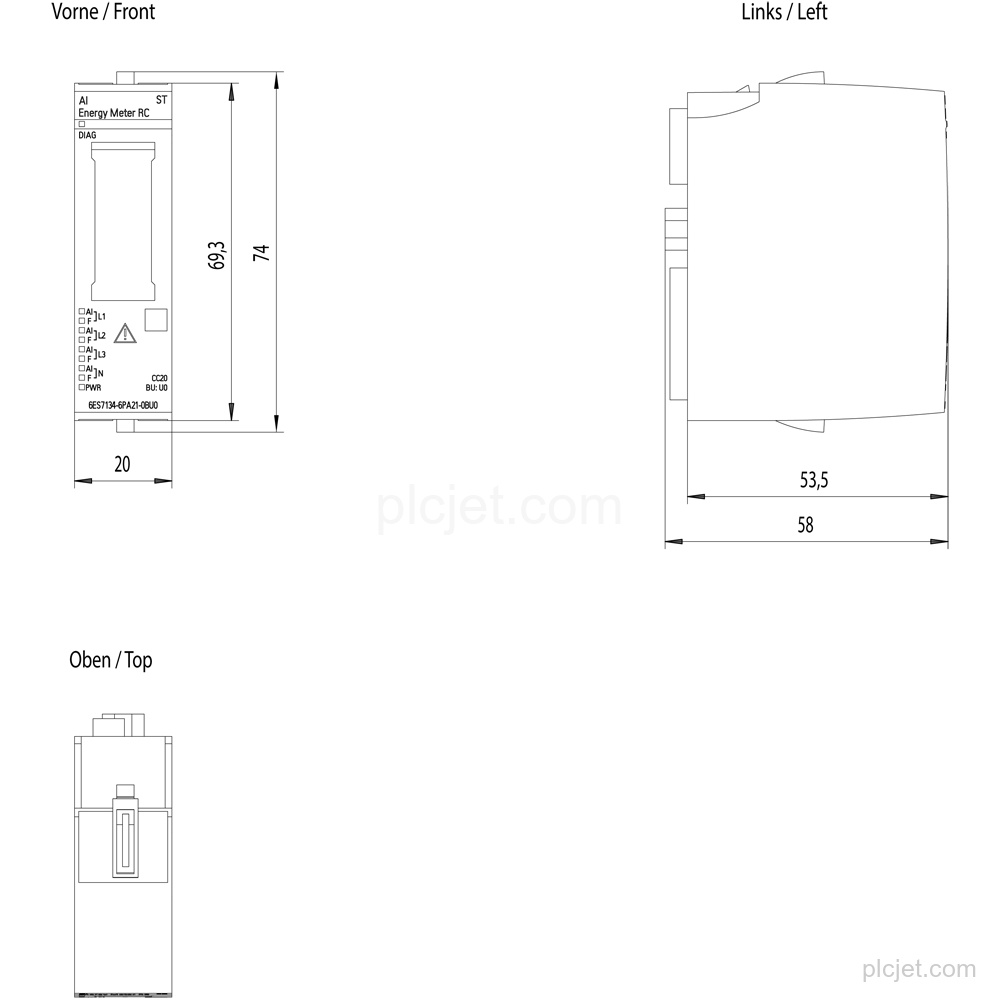

| Measurement inputs | Voltage and current; Rogowski coil or 333 mV current-voltage converter |
| Supply voltage | 24 V DC rated; 19.2 V DC to 28.8 V DC permissible range |
| Usable BaseUnit | BU type U0 |
| Current capacity | max. 3 + neutral conductor |
| Input interface | 333 mV interface |
| Cycle time | 50 ms; all channels active, consistent update of all measured and calculated values |
| Frequency measuring range | 40 Hz to 70 Hz |
| Voltage measuring range | 3 V to 300 V phase and neutral conductor; 6 V to 519 V line conductors |
| Mounting position | any |
Key Features
Measures voltage, current, energy, frequency, power, active power, reactive power, power factor, active factor and reactive power compensation.
Supports Rogowski coils and current-voltage converters with a 333 mV interface; current measurement supports max. 3 + neutral conductor.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC; usable BaseUnit is BU type U0.
Provides cyclic and acyclic measured value access, fixed and freely definable measured value sets, and a 50 ms typical cycle time for consistent updates of all channels.
Configurable via GSD file; STEP 7 V16 or higher with HSP is supported. PROFINET GSD revision is V2.3, and PROFIBUS uses Revision 3 and 5 and higher.
Any mounting position is supported. Diagnostic, limit value and hardware interrupt functions are available, with green channel-status and red channel-diagnostic LEDs.
Frequently Asked Questions
What is the exact Siemens line item?

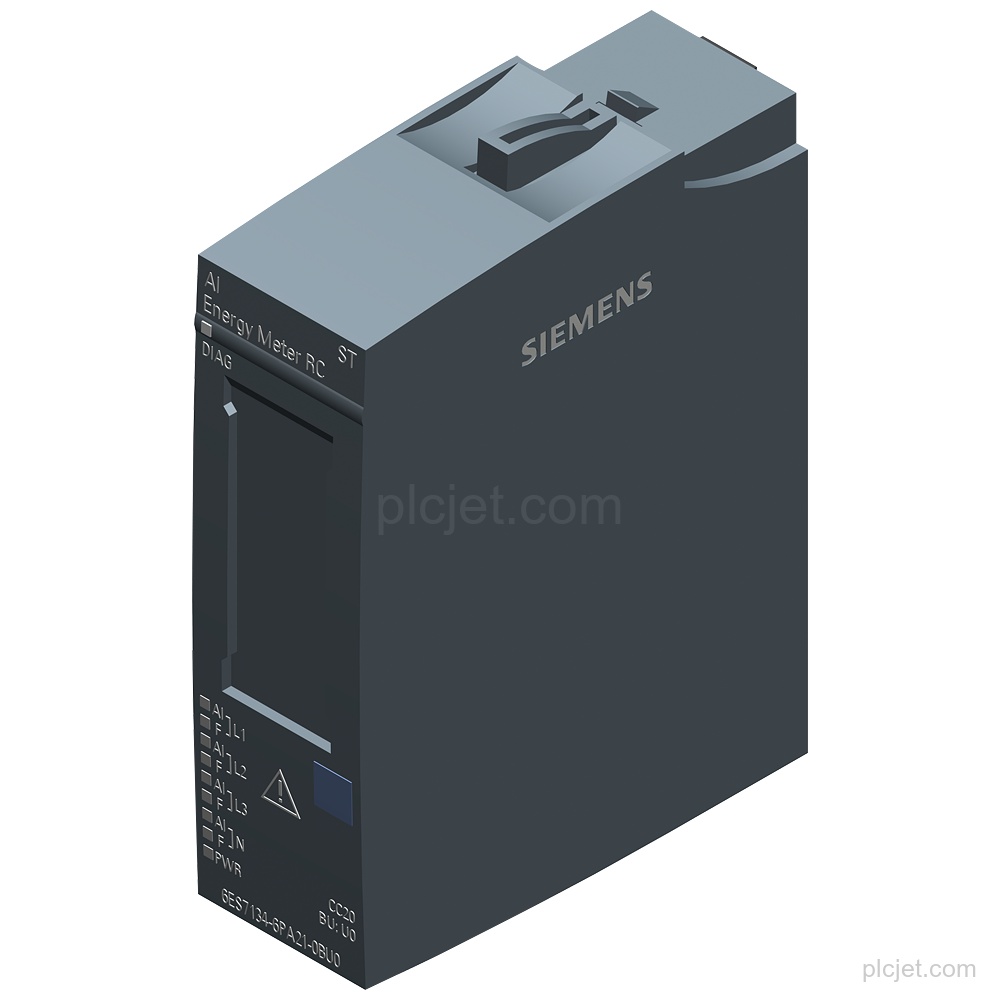

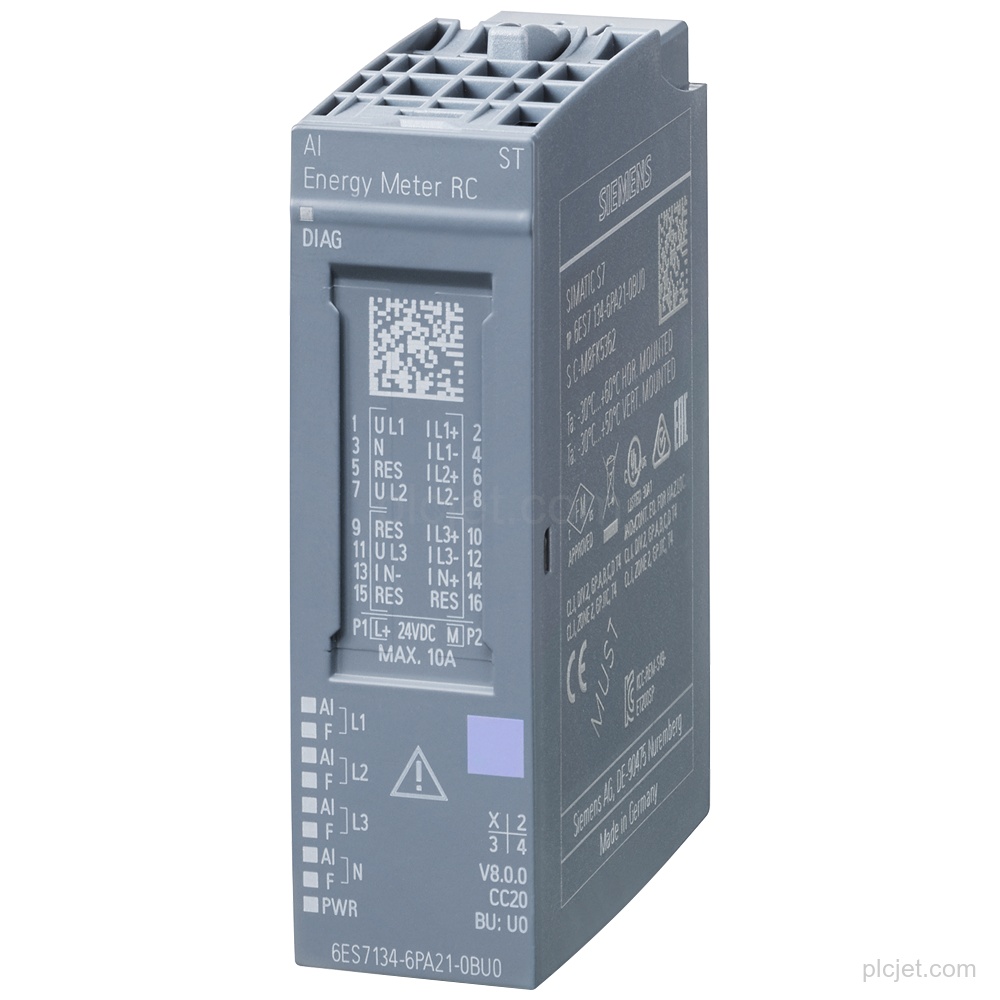

It is Siemens 6ES7134-6PA21-0BU0, SIMATIC ET 200SP AI Energy Meter RC ST.
Which BaseUnit is usable with this module?
The usable BaseUnit is BU type U0.
What input signals does the module support?
It supports Rogowski coils and current-voltage converters with a 333 mV interface.
What supply voltage is required?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC.
What project details should be included with a quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM lines.
