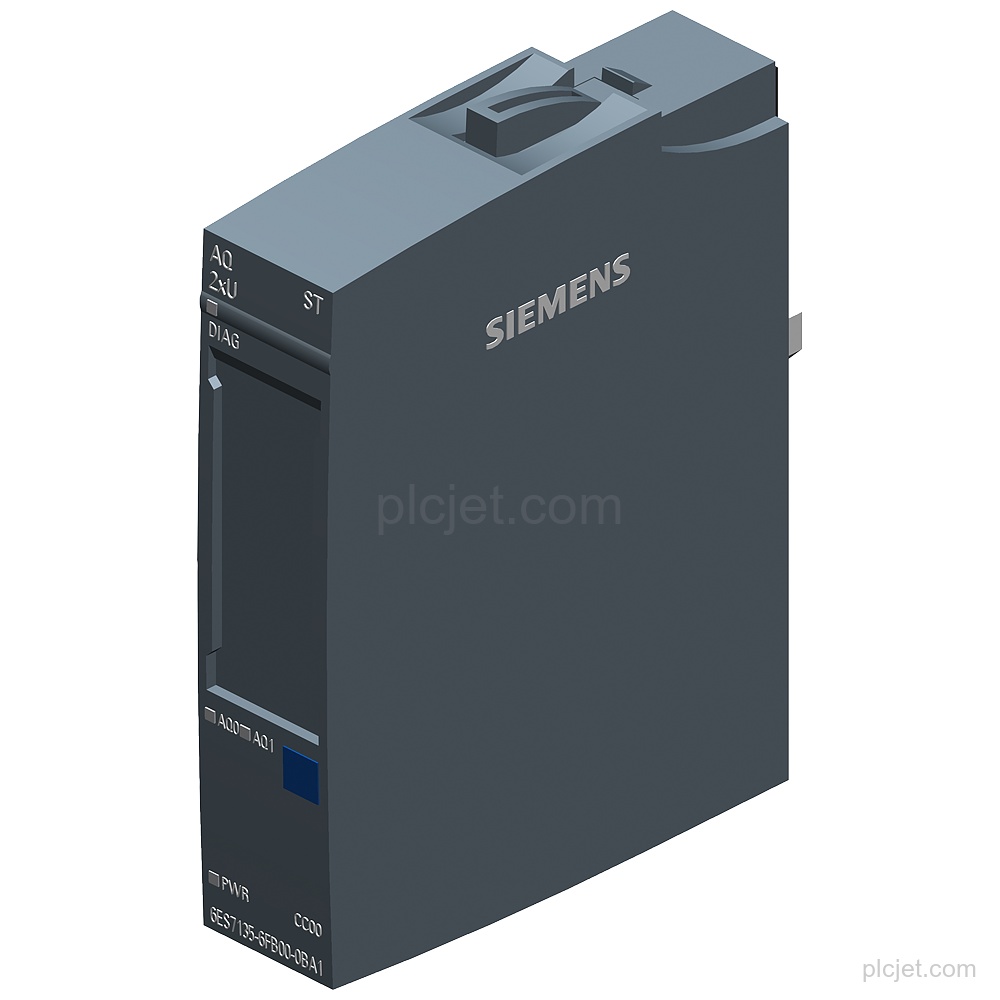

Product Overview
Technical Summary
| Product type | AQ 2xU ST |
|---|---|
| Analog outputs | 2 |
| Supply voltage, rated | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Voltage output ranges | 0 to 10 V; 1 V to 5 V; -5 V to +5 V; -10 V to +10 V |
| Resolution with overrange, max. | 16 bit |
| Cycle time, all channels, min. | 1 ms |
| Load impedance with voltage outputs, min. | 2 kΩ |
| Usable BaseUnits | BU type A0, A1 |
| Firmware version | V1.0.3 |
Key Features

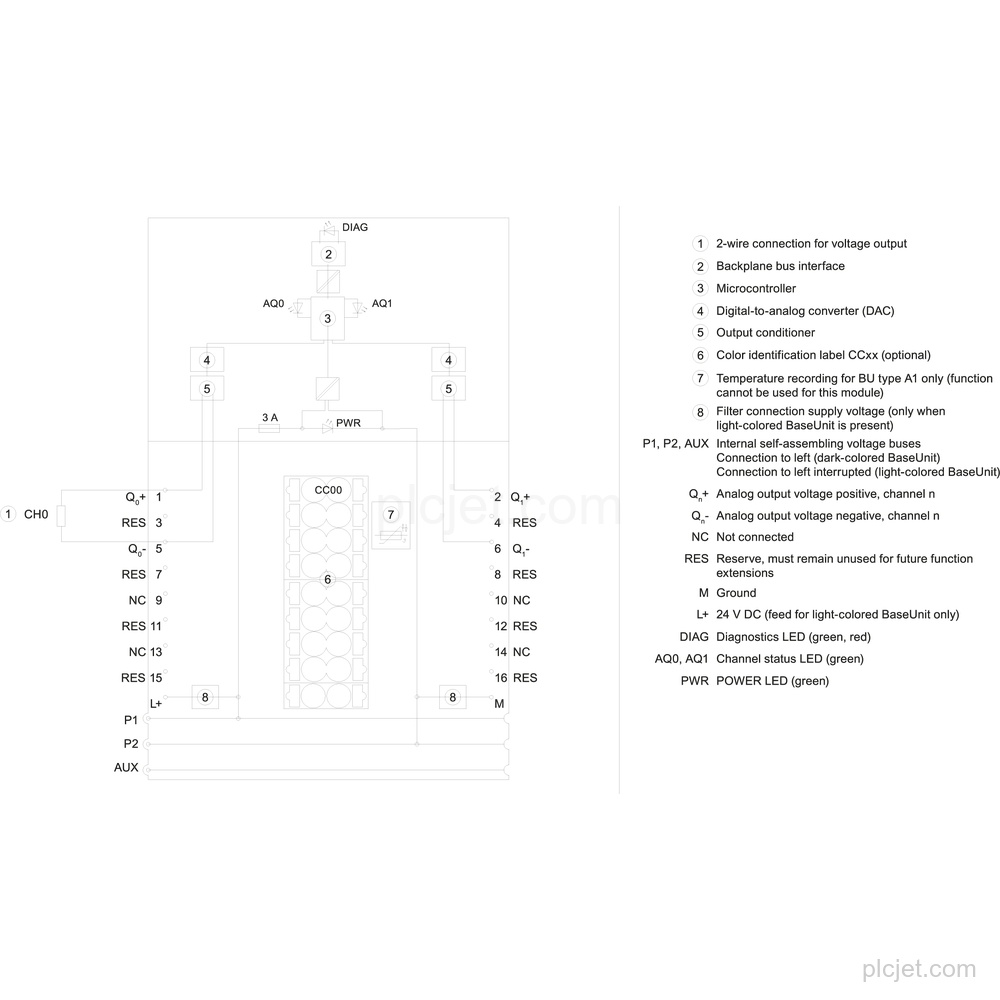

The module has 2 analog voltage outputs and supports two-wire actuator connections.
Supported ranges are 0 to 10 V, 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V.
Maximum resolution with overrange is 16 bit; minimum cycle time for all channels is 1 ms.
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
The module provides module diagnostics, supply-voltage monitoring, short-circuit and group-error diagnostics, and green/red DIAG LED indication.

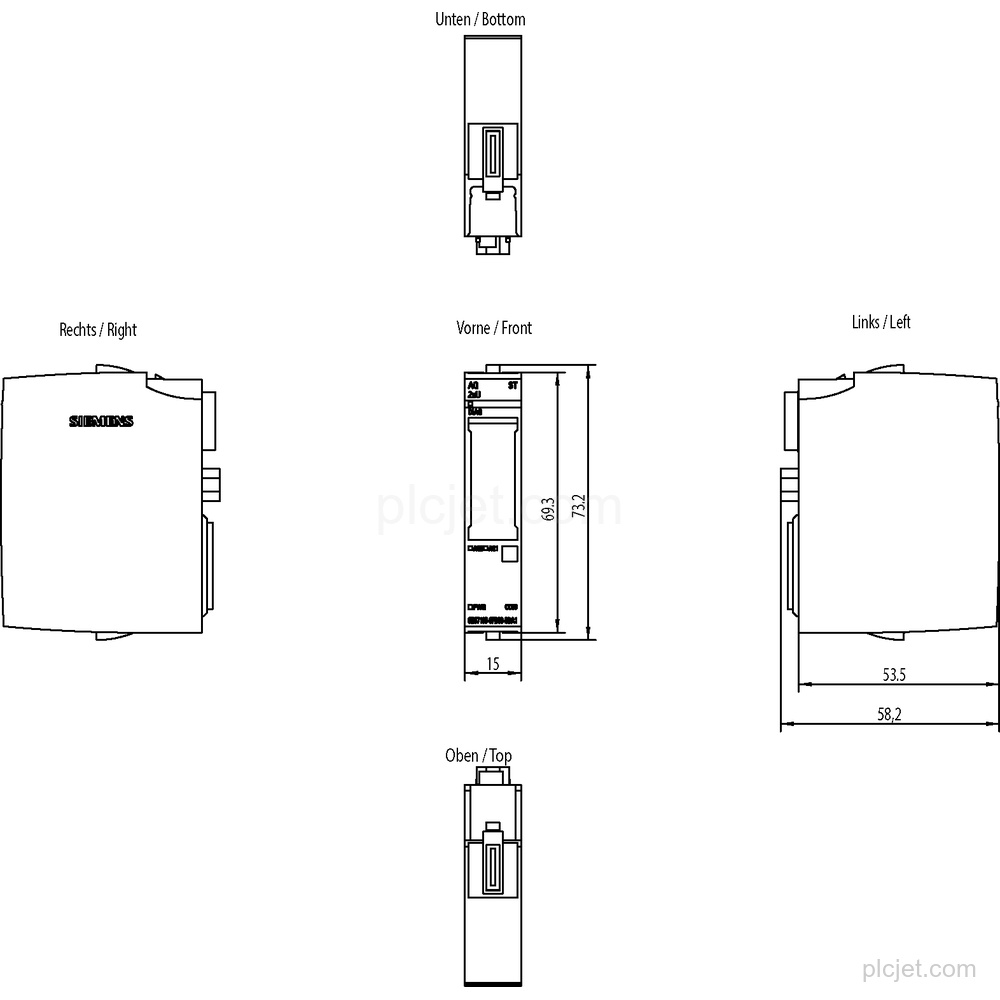

It is suitable for BU type A0, A1, uses mechanical coding element Type A, and measures 15 mm wide, 73 mm high, and 58 mm deep.
Frequently Asked Questions
What is the exact product type of 6ES7135-6FB00-0BA1?
It is a Siemens SIMATIC ET 200SP analog output module with product type AQ 2xU ST.
How many analog outputs does this module have?
It has 2 analog voltage outputs.
What voltage ranges are supported?
The supported ranges are 0 to 10 V, 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V.
Which BaseUnits are usable with this module?
Usable BaseUnits are BU type A0 and A1.
