Product Overview
Applications
Generates voltage or current output signals through the module's 2 analog outputs.
Technical Summary
| Product type | AQ 2xU/I HS |
|---|---|
| Analog outputs | 2 |
| Output ranges | Voltage: 0 to 10 V, 1 V to 5 V, -5 V to +5 V, -10 V to +10 V; current: 0 to 20 mA, -20 mA to +20 mA, 4 mA to 20 mA |
| Resolution | Up to 16 bit |
| Rated supply | 24 V DC |
| Cycle time | 125 μs minimum, all channels |
| Usable BaseUnits | BU type A0, A1 |
| Diagnostics | Supply voltage, wire break, short-circuit, group error, overflow/underflow |
| Product lifecycle | Active Product |
Key Features
2 analog outputs support voltage ranges from -10 V to +10 V and current ranges from -20 mA to +20 mA.
Resolution is up to 16 bit, with a minimum cycle time of 125 μs for all channels.
Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
Diagnostics include supply-voltage monitoring, wire break for current outputs, short-circuit detection for voltage outputs, and group error.
The module is suitable for BU type A0, A1 and has color code CC00.

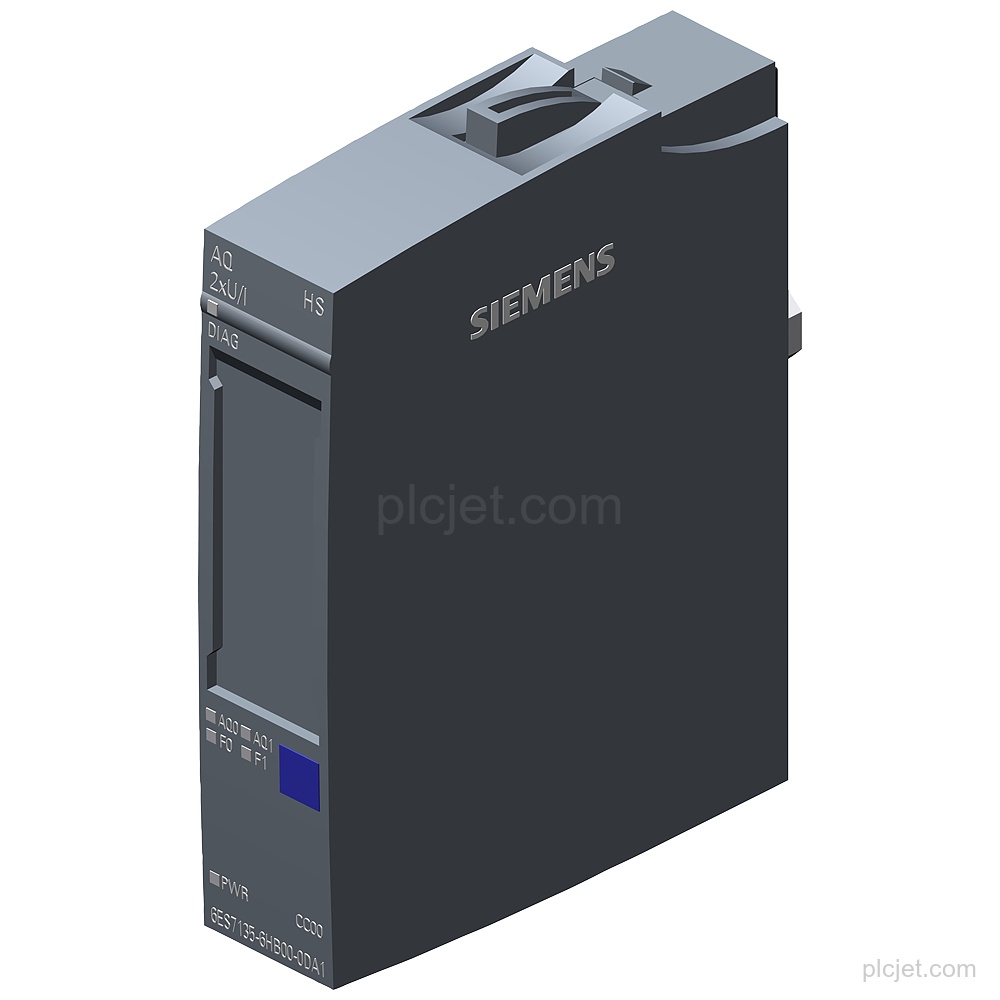

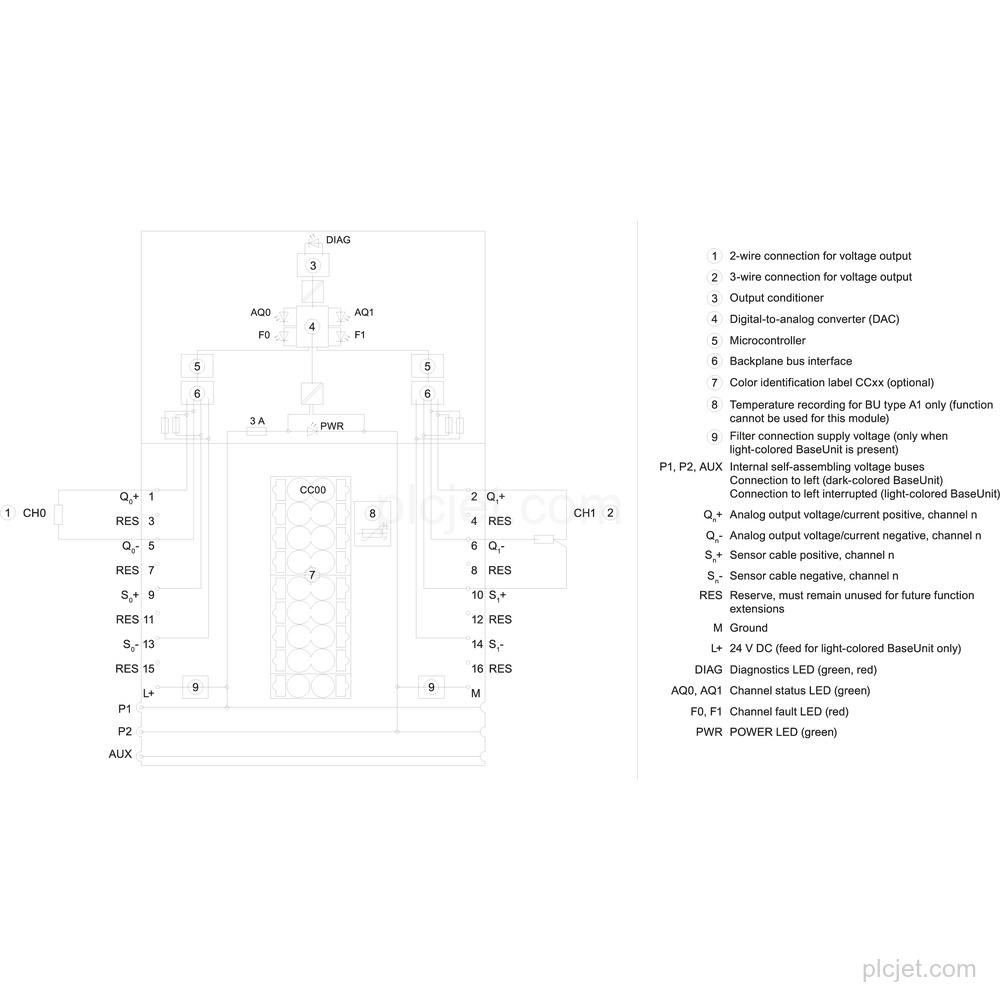

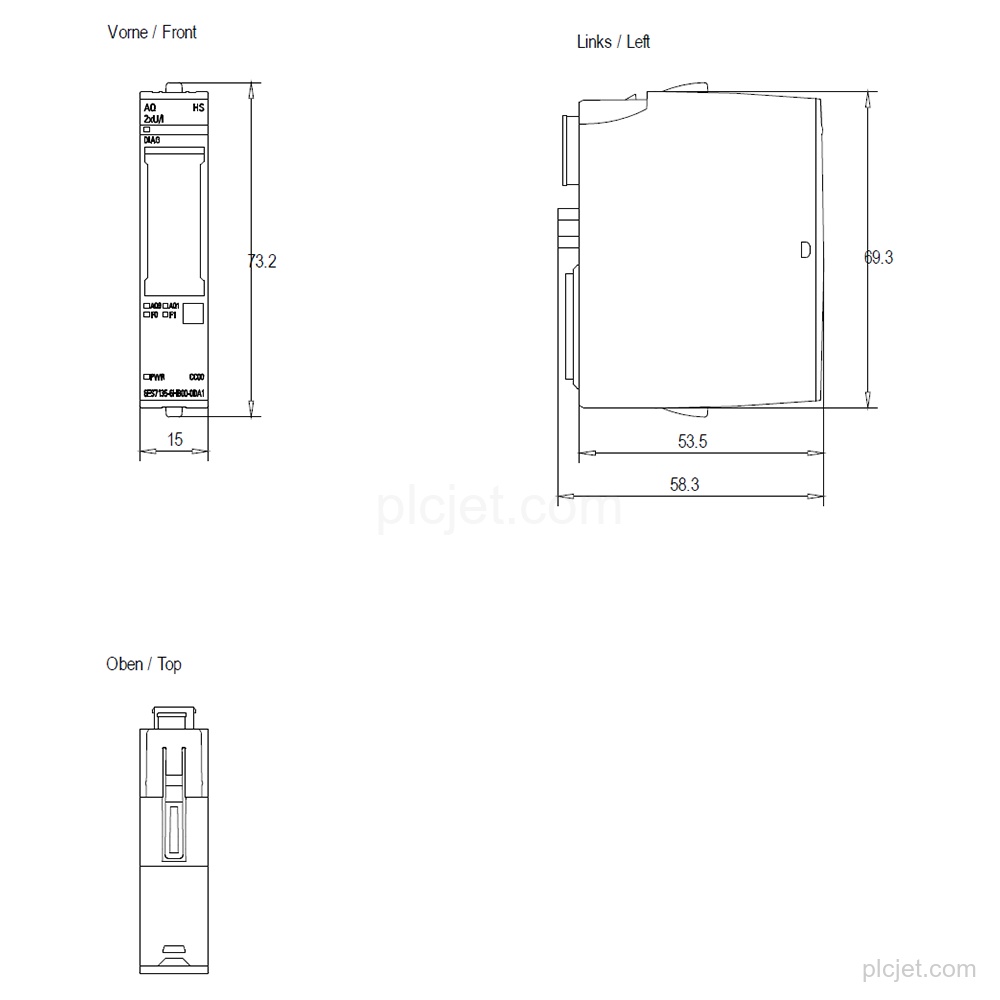

Dimensions are 15 mm wide, 73 mm high, and 58 mm deep; horizontal or vertical installation is supported from -30 °C to 60 °C or 50 °C respectively.
Frequently Asked Questions
What is the exact product type of 6ES7135-6HB00-0DA1?
It is the SIMATIC ET 200SP analog output module AQ 2xU/I HS.
Which output ranges does this module support?
It supports voltage ranges of 0 to 10 V, 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V, plus current ranges of 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
Which BaseUnits are suitable for this module?
It is suitable for BU type A0 and A1.
What should be included in a quotation request for this line item?
Include the exact order number, requested quantity, destination, schedule context, and any additional BOM lines.
