Product Overview
Applications
Supports operation as a PROFINET IO device.
Supports Open IE communication through TCP/IP.
Technical Summary
| Product type | IM 155-6 PN ST |
|---|---|
| Module capacity | 32 ET 200SP modules; 16 ET 200AL modules |
| PROFINET interfaces | 1; 2 ports through BusAdapter |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible range |
| Current consumption | 450 mA rated; 550 mA maximum |
| Hot swapping | Single hot swapping |
| Firmware version | V4.2 |
| BusAdapter | BA 2x RJ45, BA 2x FC, BA 2x M12 |
| Protection | Reverse polarity protection and short-circuit protection |
| Included item | Server module 6ES7193-6PA00-0AA0 |
Key Features
Supports up to 32 ET 200SP modules and 16 ET 200AL modules.
Has 1 PROFINET interface with 2 ports through a BusAdapter and an integrated switch.
Supports single hot swapping during operation.
Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
Includes server module 6ES7193-6PA00-0AA0.
Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
What is the exact product type of 6ES7155-6AU01-0BN0?

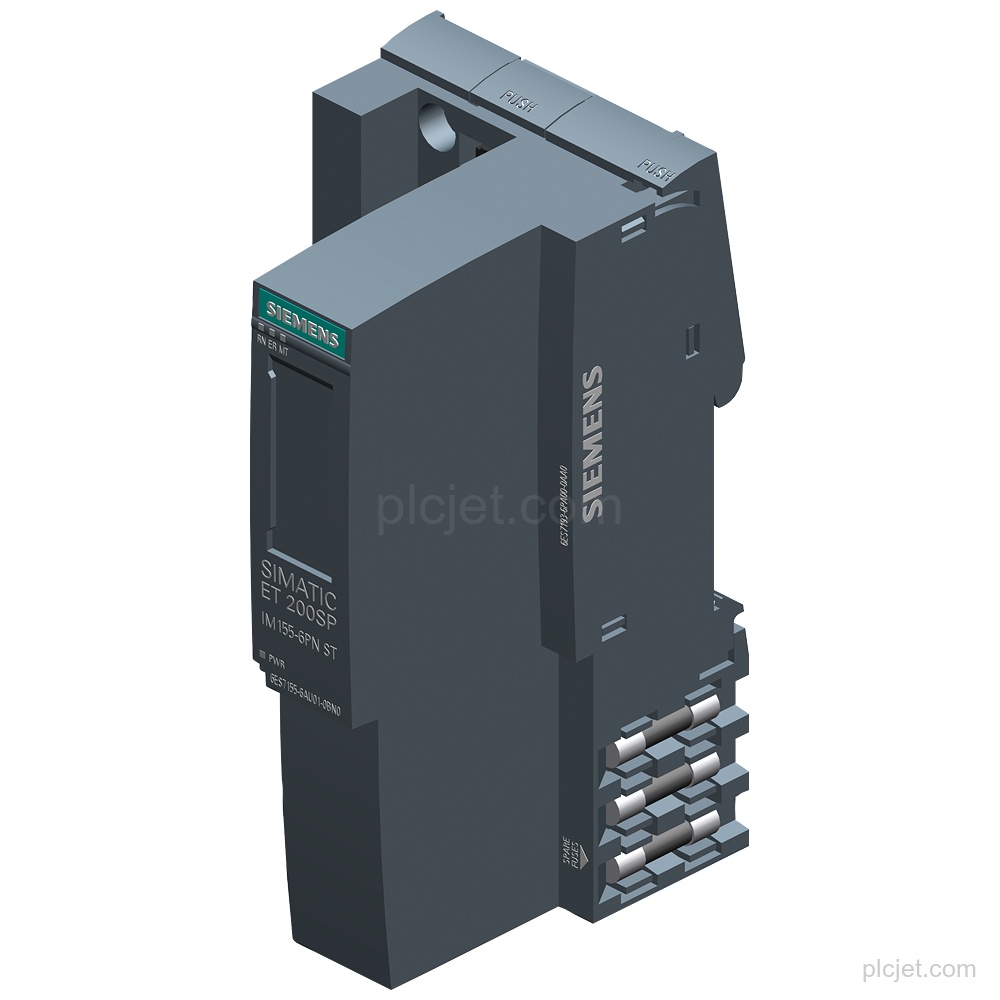

The product type is IM 155-6 PN ST, a SIMATIC ET 200SP PROFINET interface module.
How many modules can this interface module support?
It supports up to 32 ET 200SP modules and 16 ET 200AL modules.
What supply voltage does it use?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
Which BusAdapter options are supported?
Supported BusAdapter options are BA 2x RJ45, BA 2x FC, and BA 2x M12.
Can this line item be included in a project quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
