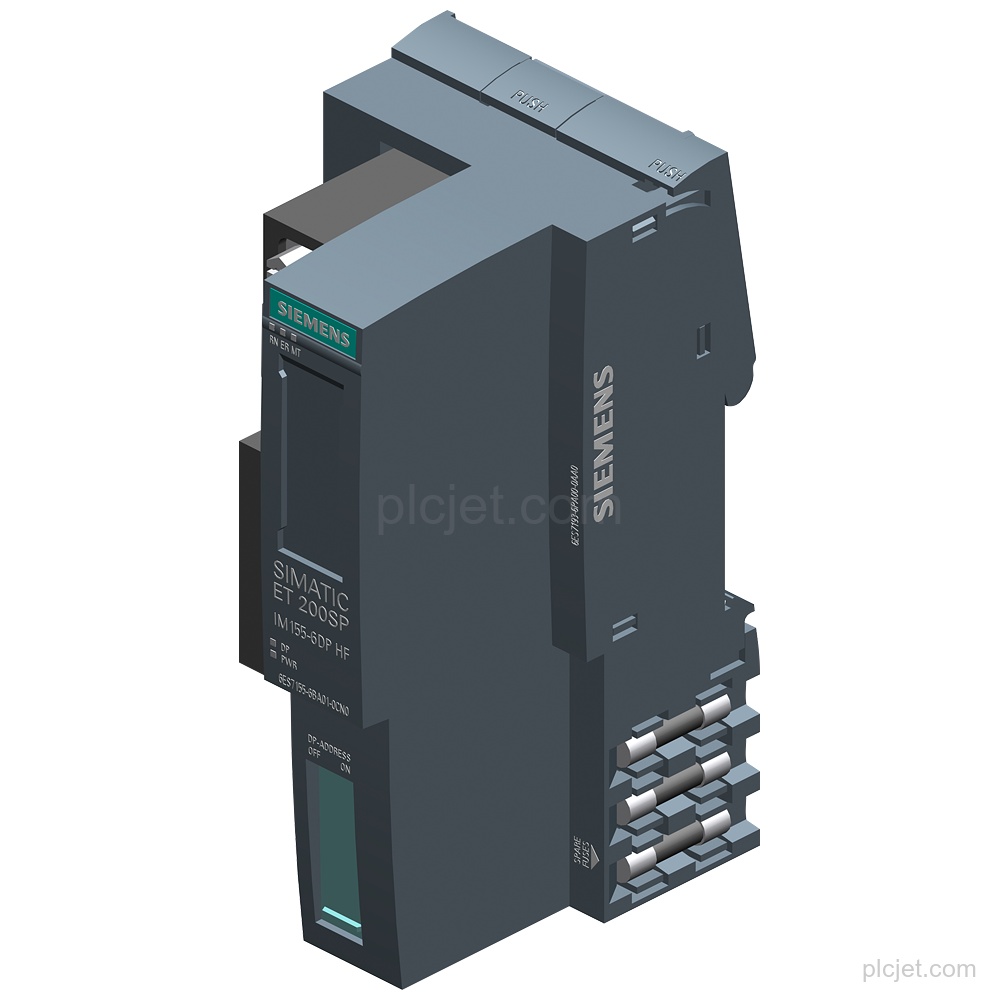

Product Overview
Technical Summary
| Product type | IM 155-6 DP HF |
|---|---|
| PROFIBUS interfaces | 1 |
| Maximum ET 200SP modules | 32 |
| Maximum ET 200AL modules | 16 |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Maximum transmission rate | 12 Mbit/s |
| Firmware version | V4.2 |
| Firmware update possible | Yes |
Key Features
Has 1 integrated RS 485 socket and supports PROFIBUS DP device communication at up to 12 Mbit/s.
Supports up to 32 operable ET 200SP modules and 16 operable ET 200AL modules.
Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
Supports multi-hot swapping during operation.
The bundle consists of interface module 6ES7155-6BU01-0CN0, server module 6ES7193-6PA00-0AA0 and PROFIBUS plug 6ES7972-0BB70-0XA0.
Frequently Asked Questions
What is the exact product type of 6ES7155-6BA01-0CN0?
It is an IM 155-6 DP HF interface module for SIMATIC ET 200SP.
How many modules can this configuration support?
It supports up to 32 ET 200SP modules and 16 ET 200AL modules.
Which supply voltage does it use?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
Which components are included in the bundle?
The bundle consists of interface module 6ES7155-6BU01-0CN0, server module 6ES7193-6PA00-0AA0 and PROFIBUS plug 6ES7972-0BB70-0XA0.
