Product Overview
Technical Summary
| Product type | BA 2x LC |
|---|---|
| Functional status | from FS04 |
| PROFINET interfaces | 1; 2 ports (switch) LC Multimode Glass Fibre |
| LC ports | 2; Wavelength of 1 270 … 1 380 nm, corresponds to 100BASE-FX |
| Operating temperature, horizontal | -30 °C to 60 °C |
| Operating temperature, vertical | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Key Features

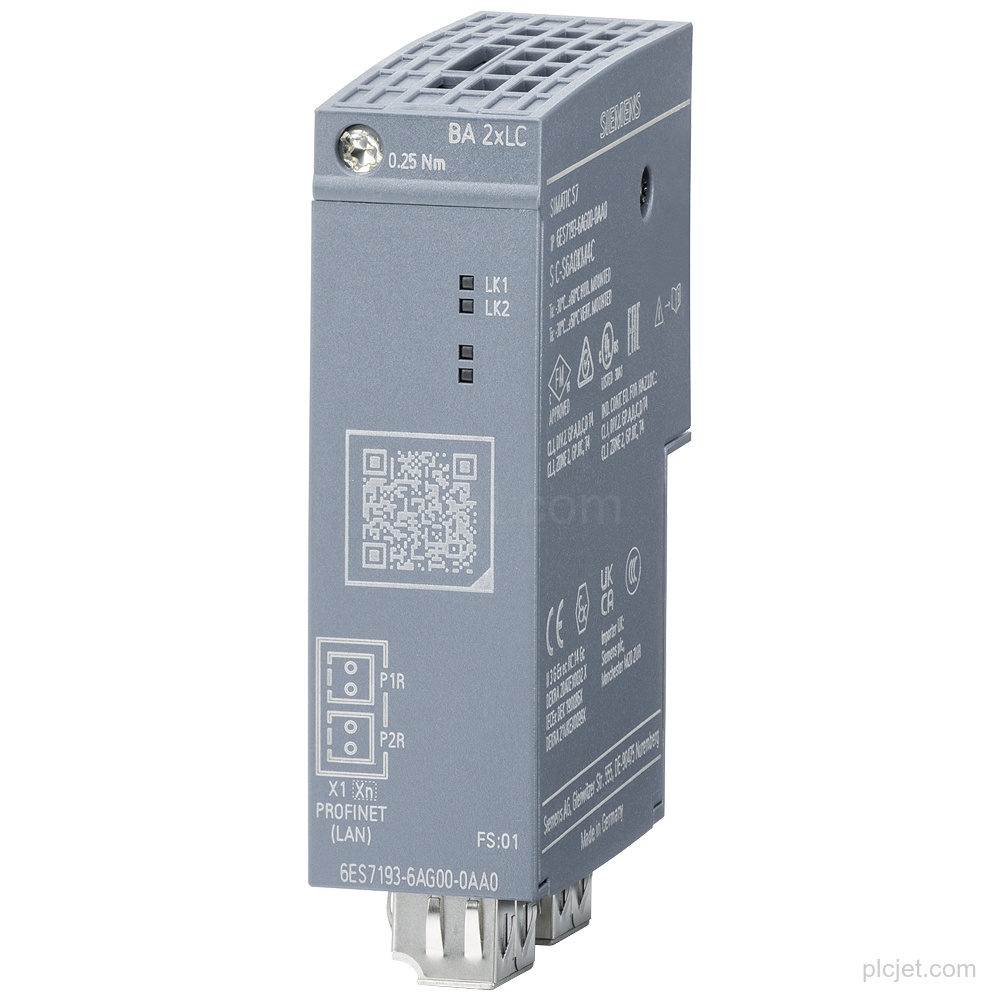

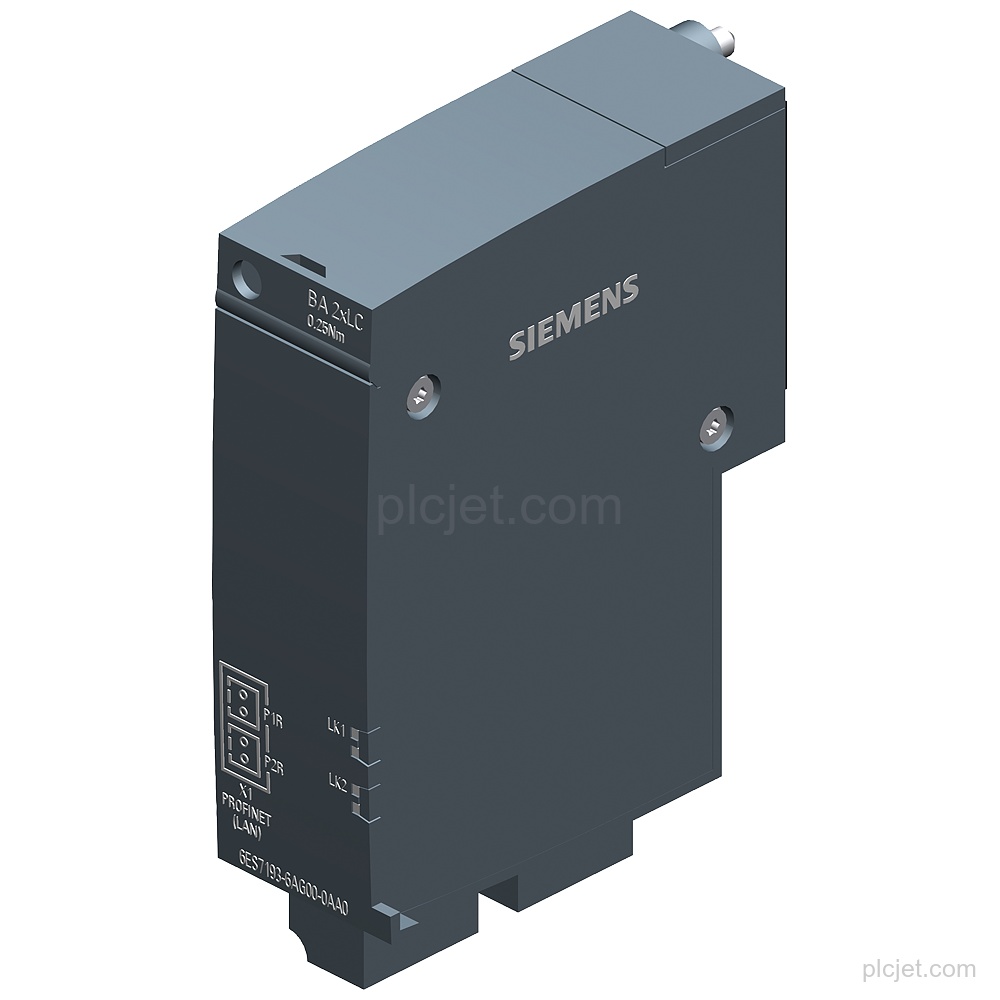

BA 2x LC bus adapter with 2 LC glass FOC connections.
1 PROFINET interface with 2 ports using LC Multimode Glass Fibre.

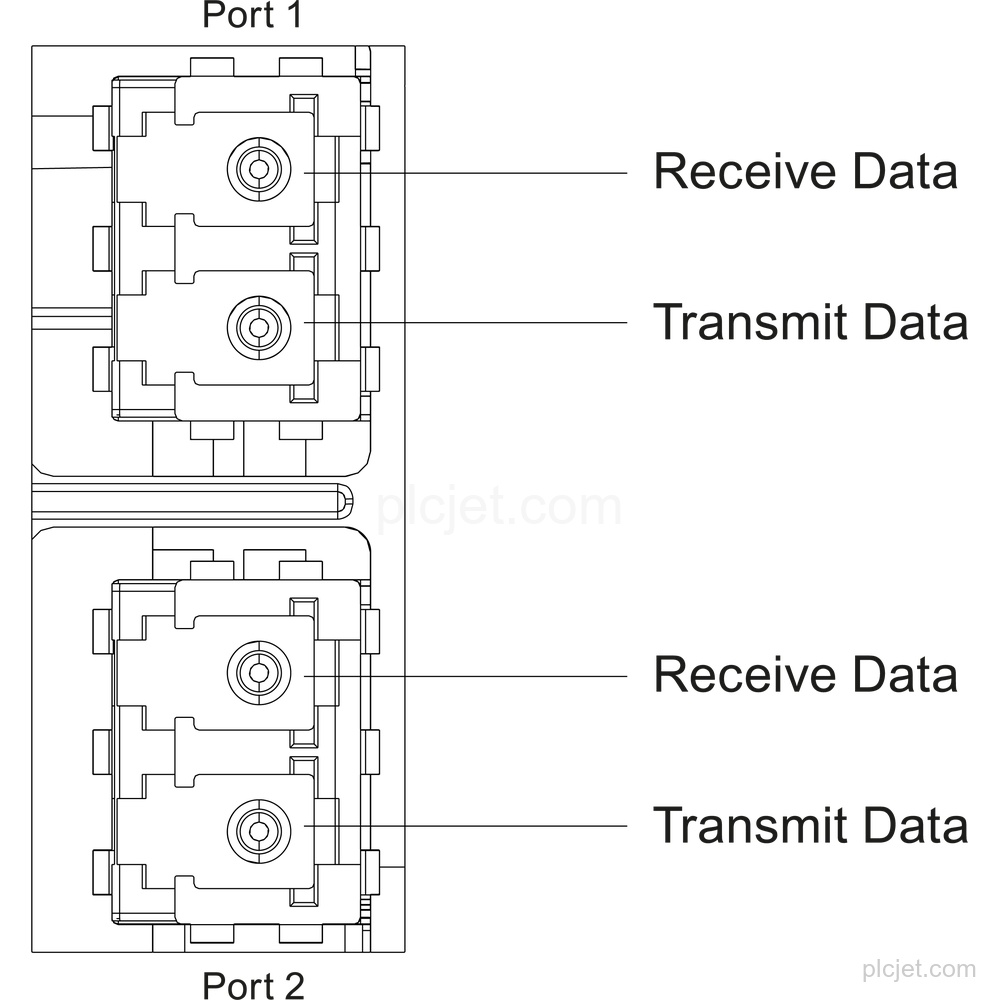

2 LC ports with a wavelength of 1 270 … 1 380 nm, corresponding to 100BASE-FX.
3 km for 50/125 μm fiber, with min. transmit power -23.5 dB and min. receiver sensitivity -31 dB; 3 km for 62.5/125 μm fiber, with min. transmit power -20 dB and min. receiver sensitivity -31 dB.
-30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.

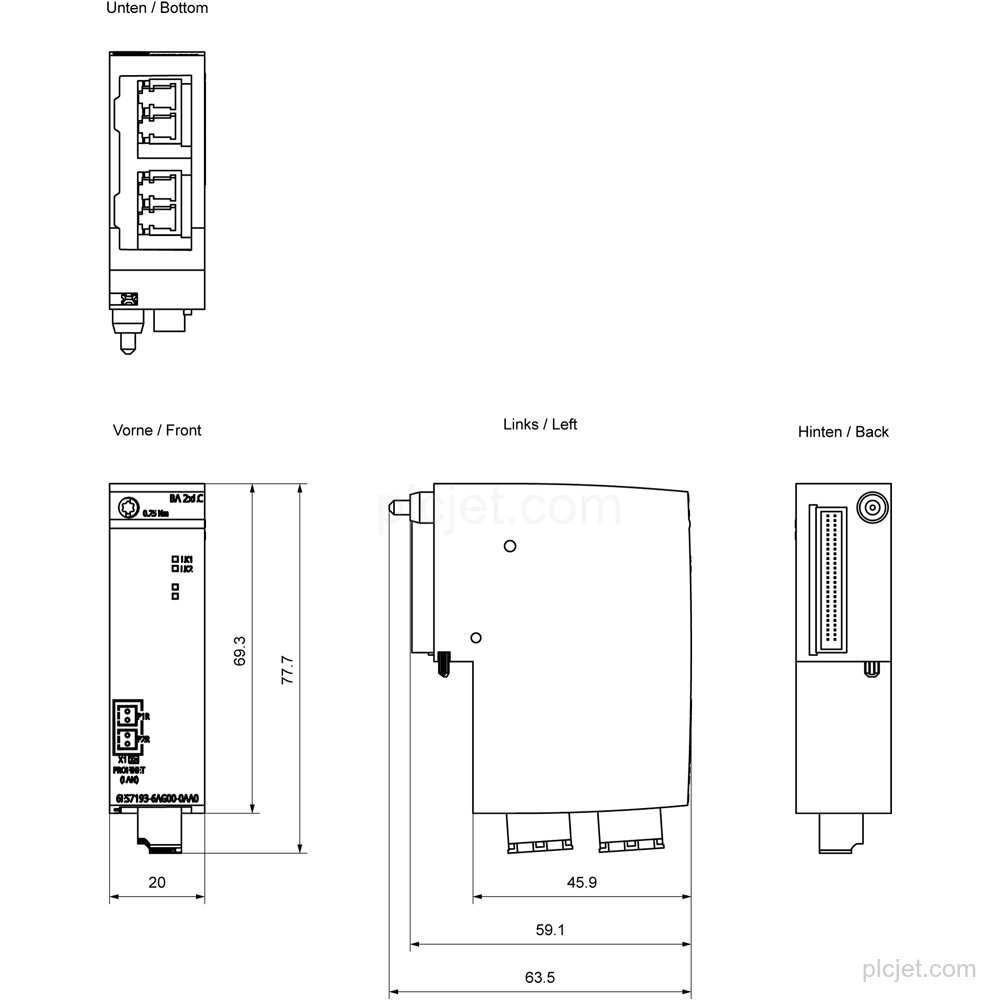

20 mm width, 69.5 mm height, 59 mm depth, and approx. 40 g weight.
Frequently Asked Questions
What is the exact product type of 6ES7193-6AG00-0AA0?
It has the product type designation BA 2x LC and a HW functional status from FS04.
How many PROFINET and LC ports does this bus adapter have?
It has 1 PROFINET interface with 2 switch ports and 2 LC ports.
What fiber cable length is supported?
The cable length is 3 km for both 50/125 μm and 62.5/125 μm multimode graded-index fiber, with the stated transmit-power and receiver-sensitivity limits.
What installation temperature range should be retained in the quotation?
The range is -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.
What details should I provide for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines together with this exact line item.
