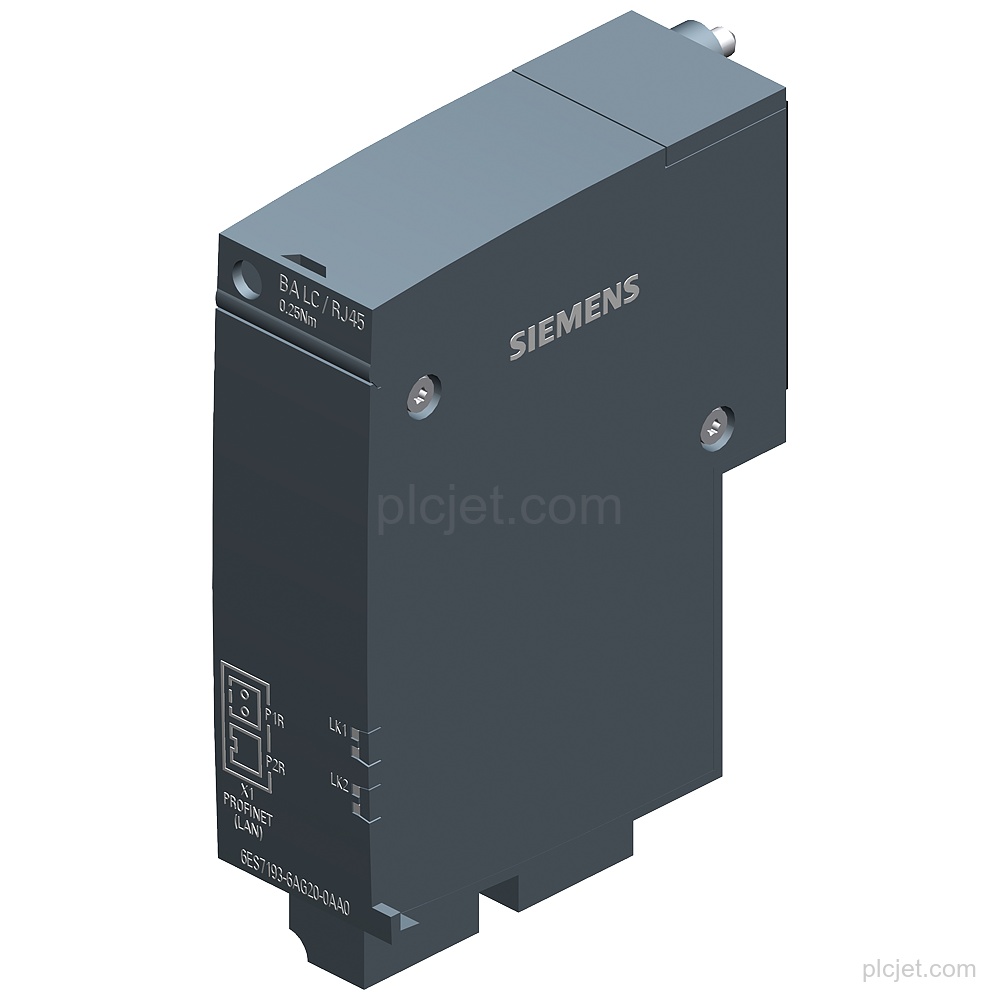

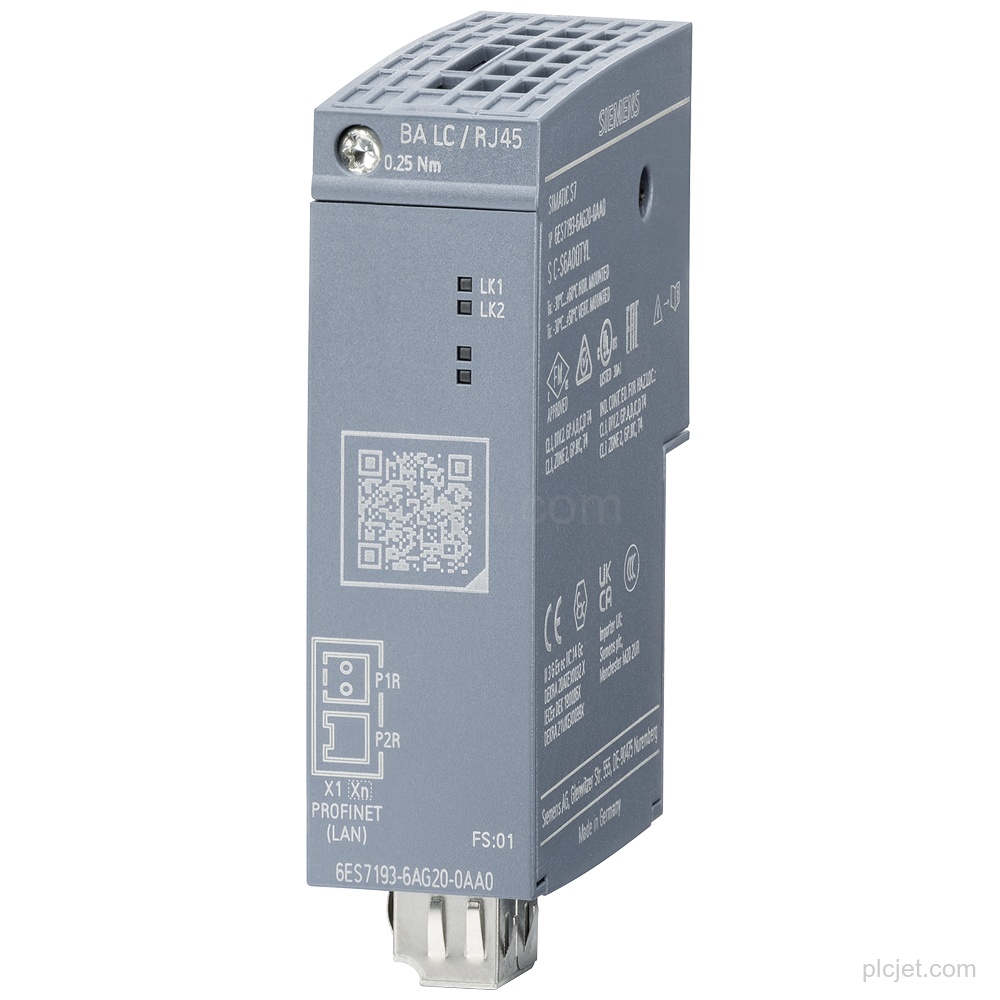

Product Overview
Technical Summary
| Product type | BA LC/RJ45 |
|---|---|
| PROFINET interface | 1 interface; 2 switch ports LC / RJ45 |
| RJ45 ports | 1 |
| LC ports | 1; wavelength 1 270 … 1 380 nm, corresponding to 100BASE-FX |
| Operating temperature, horizontal installation | -30 °C to 60 °C |
| Operating temperature, vertical installation | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Key Features
Glass FOC/CU media converter with 1 LC FO connection and 1 RJ45 connection.
1 PROFINET interface with 2 switch ports: LC / RJ45.
The 1 LC port has a wavelength of 1 270 … 1 380 nm, corresponding to 100BASE-FX.
Cu conductors: 100 m. Multimode graded-index fiber 50/125 μm: 3 km; 62.5/125 μm: 3 km.
Horizontal installation: -30 °C to 60 °C. Vertical installation: -30 °C to 50 °C.

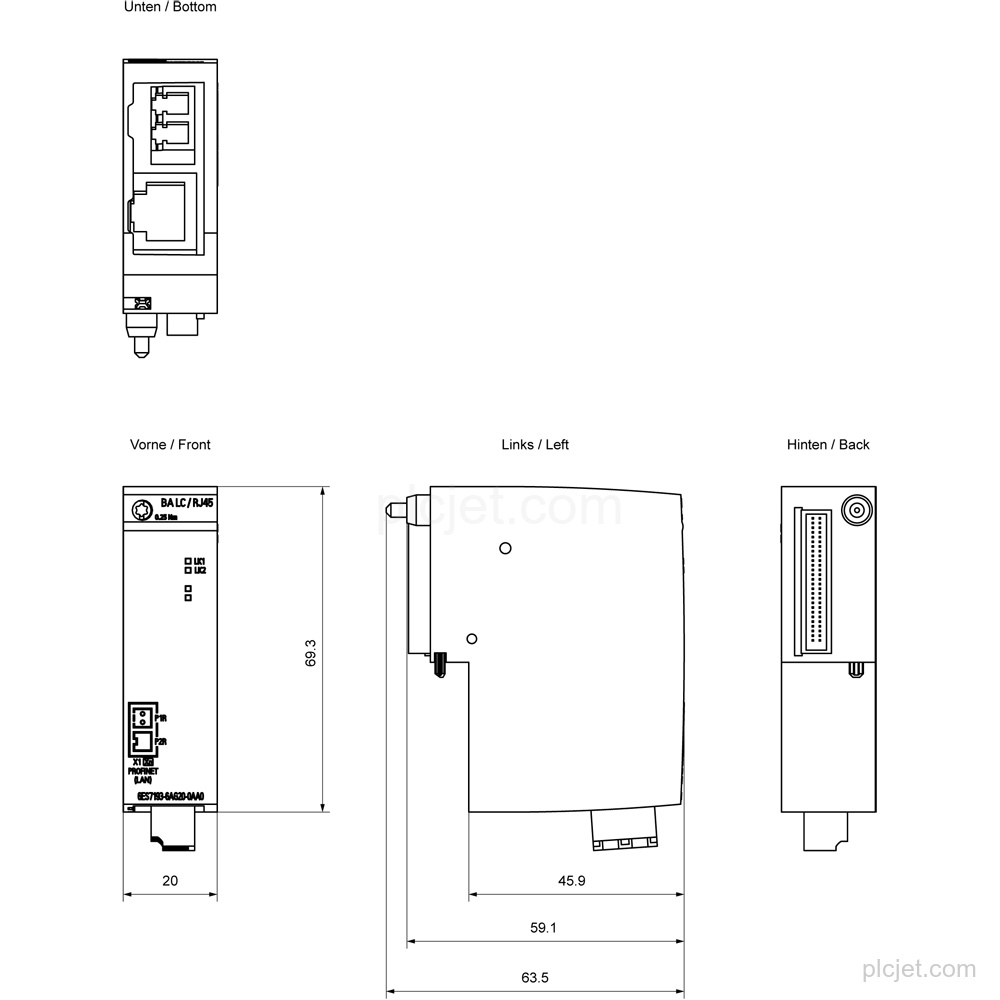

20 mm width, 69.5 mm height, 59 mm depth, and approx. 32 g weight.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7193-6AG20-0AA0?
The product type designation is BA LC/RJ45, a SIMATIC bus adapter and glass FOC/CU media converter.

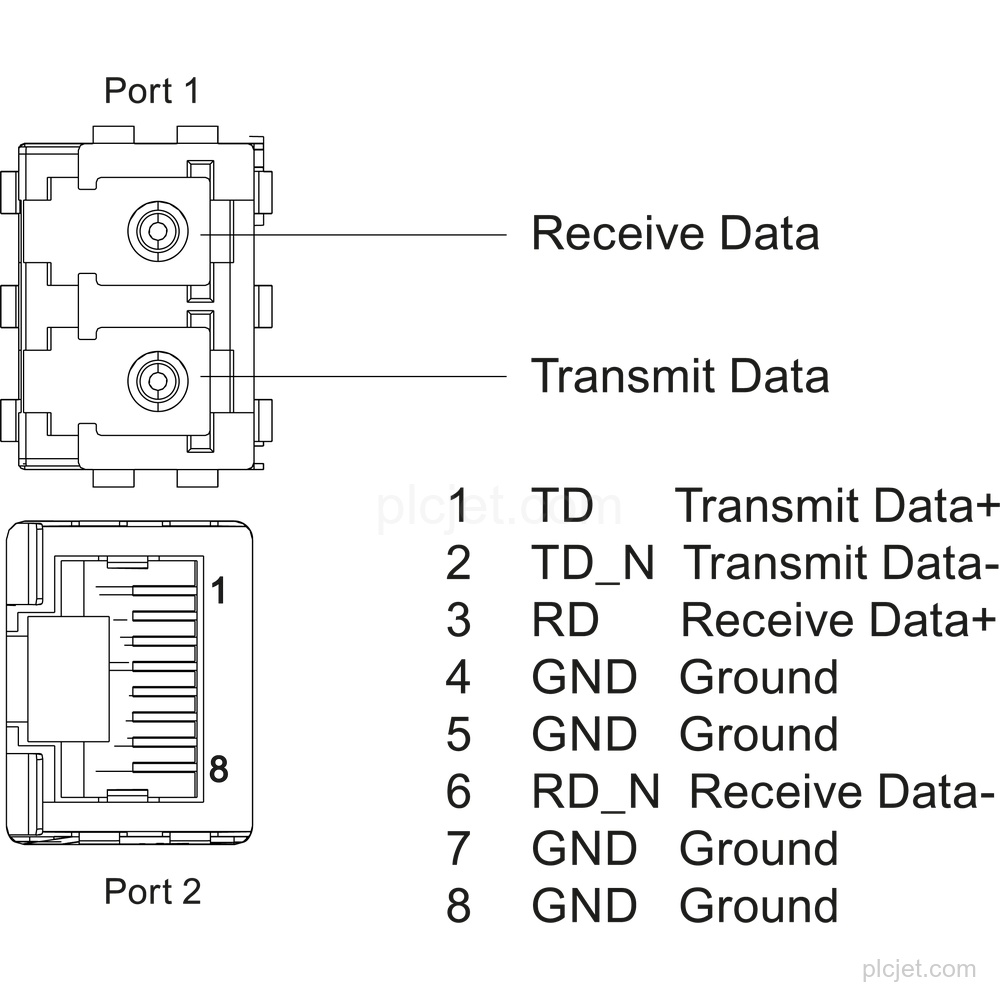

Which connections does the BA LC/RJ45 provide?
It provides 1 LC FO connection and 1 RJ45 connection, with 1 PROFINET interface and 2 switch ports: LC / RJ45.
What cable lengths are supported?
The cable length is 100 m for Cu conductors and 3 km for multimode graded-index fiber 50/125 μm or 62.5/125 μm.
What operating temperatures apply to this bus adapter?
For horizontal installation, the operating temperature is -30 °C to 60 °C. For vertical installation, it is -30 °C to 50 °C.
